Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43723B6688M600CAP ALUM 500V POLAR |
0 |
|
Datasheet |
B43723 | Bulk | Active | 6.8 mF | ±20% | 500 V | 11mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 17 mOhms | 1.248" (31.70mm) | 3.543" Dia (90.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
LQR2W123MSEJBBCAP ALUM 12000UF 20% 450V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.5 A @ 120 Hz | 49.7 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LQR2W123MSEJBNCAP ALUM 12000UF 20% 450V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.5 A @ 120 Hz | 49.7 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
MAL250019472E3CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 4700 µF | ±20% | 500 V | 46mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.1 A @ 100 Hz | 19.65 A @ 10 kHz | 43 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.787" (147.00mm) | - | Chassis Mount | |
|
MAL250059472E3CAP ALUM 4700UF 20% 500V SCREW |
0 |
|
- |
500 PGP-ST | Box | Active | 4700 µF | ±20% | 500 V | 46mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.1 A @ 100 Hz | 19.65 A @ 10 kHz | 43 mOhms | 1.252" (31.80mm) | 3.008" Dia (76.40mm) | 5.780" (146.80mm) | - | Chassis Mount | |
|
CGS252T450X3LCAP ALUM 2500UF 450V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 2500 µF | -10%, +50% | 450 V | 58mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7 A @ 120 Hz | 10.5 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
|
B43763A5688M000CAP ALUM 6800UF 20% 450V SCREW |
0 |
|
- |
B43763 | Bulk | Active | 6800 µF | ±20% | 450 V | 13mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | - | 20 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
MAL210242223E3CAP ALUM 22000UF 20% 200V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 22000 µF | ±20% | 200 V | 8mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.1 A @ 100 Hz | - | 6 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.118" (155.40mm) | - | Chassis Mount | |
|
|
MAL210282223E3CAP ALUM 22000UF 20% 200V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 22000 µF | ±20% | 200 V | 8mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.1 A @ 100 Hz | - | 6 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.118" (155.40mm) | - | Chassis Mount | |
|
CGH432T350X3LCAP ALUM 4300UF 350V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 4300 µF | -10%, +50% | 350 V | 43.5mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 A @ 120 Hz | 10.332 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
|
PEH200VY4680MB26800UF 400VDC ELE SCREW TERM |
0 |
|
Datasheet |
PEH200 | Bulk | Active | 6.8 mF | ±20% | 400 V | 13mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | 47.7 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 5.768" (146.50mm) | - | Chassis Mount | |
|
|
CGS422T350X4CCAP ALUM 4200UF 350V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 4200 µF | -10%, +50% | 350 V | 35mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.4 A @ 120 Hz | 14.1 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
LNR1A225MSENCAP ALUM 2.2F 20% 10V SCREW CHAS |
0 |
|
Datasheet |
LNR | Bulk | Active | 2.2 F | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 41.1 A @ 120 Hz | 47.265 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 9.961" (253.00mm) | - | Chassis Mount | |
|
B43584E2229M000CAP ALUM 22000UF 20% 200V SCREW |
0 |
|
Datasheet |
B43584 | Bulk | Obsolete | 22000 µF | ±20% | 200 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 35.9 A @ 100 Hz | - | 6 mOhms | 1.248" (31.70mm) | 3.583" Dia (91.00mm) | 5.728" (145.50mm) | - | Chassis, Stud Mount | |
|
|
LNR1H474MSEBCAP ALUM 470000UF 20% 50V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 470000 µF | ±20% | 50 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.2 A @ 120 Hz | 38.18 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LNR1H474MSENCAP ALUM 470000UF 20% 50V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 470000 µF | ±20% | 50 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.2 A @ 120 Hz | 38.18 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
CGH742T250X3LCAP ALUM 7400UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 7400 µF | -10%, +50% | 250 V | 27.1mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.3 A @ 120 Hz | 12.669 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|
|
CGS742T250X3LCAP ALUM 7400UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 7400 µF | -10%, +50% | 250 V | 26mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 120 Hz | 15.75 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 3.625" (92.08mm) | - | Chassis Mount | |
|

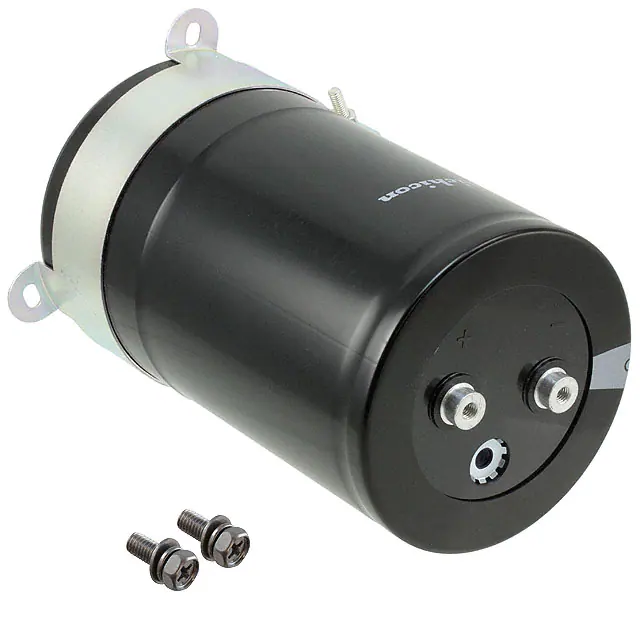

LNT2H562MSEJCAP ALUM 5600UF 20% 500V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 5600 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.8 A @ 120 Hz | 24.92 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
MAL250159562E3CAP ALUM 5600UF 20% 500V SCREW |
0 |
|
Datasheet |
501 PGM-ST | Box | Active | 5600 µF | ±20% | 500 V | 45mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | 24.45 A @ 10 kHz | 37 mOhms | 1.252" (31.80mm) | 3.008" Dia (76.40mm) | 5.780" (146.80mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
