Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS634U010W5LCAP ALUM 630000UF 10V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 630000 µF | -10%, +75% | 10 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.8 A @ 120 Hz | 29.64 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
CGS714U7R5W5LCAP ALUM 710000UF 7.5V SCREW CHA |
0 |
|
Datasheet |
CGS | Bulk | Active | 710000 µF | -10%, +75% | 7.5 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.8 A @ 120 Hz | 29.64 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
CGS333U100X8LCAP ALUM 33000UF 100V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 33000 µF | -10%, +75% | 100 V | 9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25 A @ 120 Hz | 32.5 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
DCMX352T450DE2BCAP ALUM 3500UF 450V SCREW CHAS |
0 |
|
Datasheet |
DCMX | Bulk | Active | 3500 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.187" (131.75mm) | - | Chassis Mount | |
|
|
520C372M400DC2FCAP ALUM 3700UF 20% 400V SCREW |
0 |
|
Datasheet |
520C | Bulk | Active | 3700 µF | ±20% | 400 V | - | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
ALS71A113QS550CAP ALUM 11000UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 11000 µF | ±20% | 550 V | 44mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 32.5 A @ 10 kHz | 39 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|

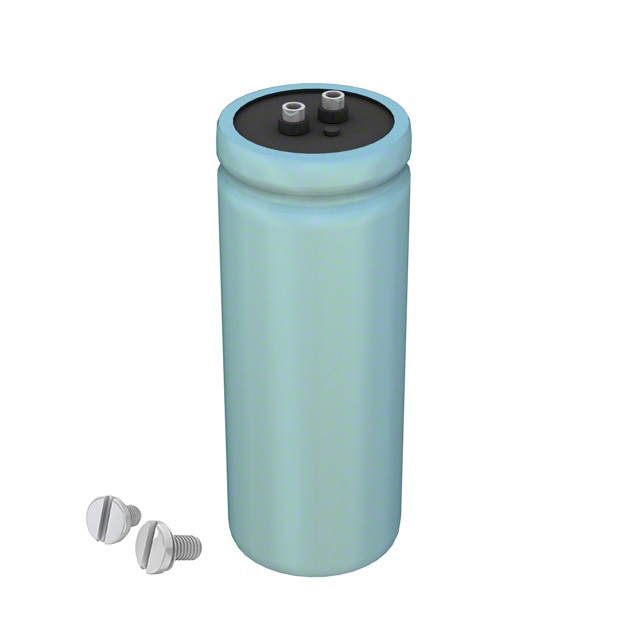

CGH152T500V5CCAP ALUM 1500UF 500V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 1500 µF | -10%, +50% | 500 V | 168mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | - | - | - | 2.000" Dia (50.80mm) | 5.125" (130.18mm) | - | Chassis Mount | |
|
|
MAL210415472E3CAP ALUM 4700UF 20% 350V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 4700 µF | ±20% | 350 V | 32mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | - | 21 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210416332E3CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 3300 µF | ±20% | 400 V | 38mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.3 A @ 100 Hz | - | 23 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210426332E3CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 3300 µF | ±20% | 400 V | 38mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.6 A @ 100 Hz | - | 23 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210455472E3CAP ALUM 4700UF 20% 350V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 4700 µF | ±20% | 350 V | 32mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.6 A @ 100 Hz | - | 21 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210456332E3CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 3300 µF | ±20% | 400 V | 38mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.3 A @ 100 Hz | - | 23 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210465472E3CAP ALUM 4700UF 20% 350V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 4700 µF | ±20% | 350 V | 30mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.7 A @ 100 Hz | - | 19 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210466332E3CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 3300 µF | ±20% | 400 V | 38mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 11.6 A @ 100 Hz | - | 23 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
ALS70A113QS550CAP ALUM 11000UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 11000 µF | ±20% | 550 V | 44mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 32.5 A @ 10 kHz | 39 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS70C113QS550CAP ALUM 11000UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 11000 µF | ±20% | 550 V | 44mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 32.5 A @ 10 kHz | 39 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS70H113QS550CAP ALUM 11000UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 11000 µF | ±20% | 550 V | 44mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 32.5 A @ 10 kHz | 39 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS71C113QS550CAP ALUM 11000UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 11000 µF | ±20% | 550 V | 44mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 32.5 A @ 10 kHz | 39 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS71H113QS550CAP ALUM 11000UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 11000 µF | ±20% | 550 V | 44mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.7 A @ 100 Hz | 32.5 A @ 10 kHz | 39 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
CGS584U010W5LCAP ALUM 580000UF 10V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 580000 µF | -10%, +75% | 10 V | 6mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20.6 A @ 120 Hz | 26.78 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
