Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQR2G123MSEJCAP ALUM 12000UF 20% 400V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 12000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 37.6 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
CG302T250X5LCAP ALUM 3000UF 250V SCREW CHAS |
0 |
|
Datasheet |
CG | Bulk | Active | 3000 µF | -10%, +50% | 250 V | 20mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.2 A @ 120 Hz | 17.182 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
CGS602T250W4CCAP ALUM 6000UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 6000 µF | -10%, +50% | 250 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 15.9 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

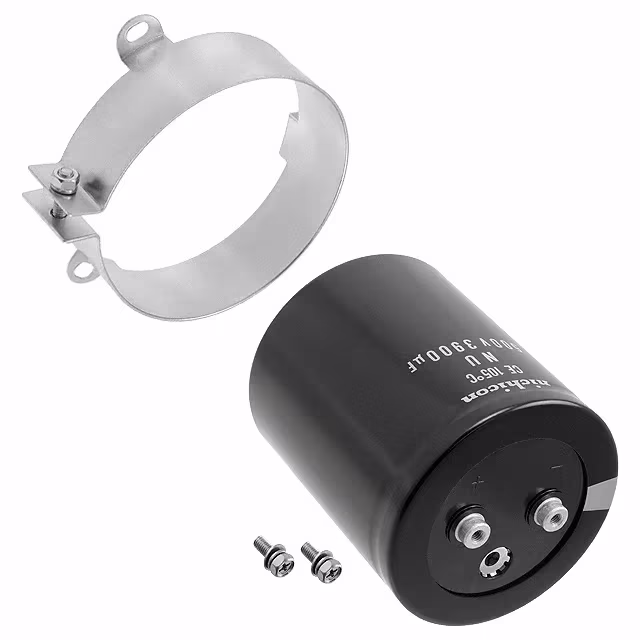

LNU2G682MSEJCAP ALUM 6800UF 20% 400V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 6800 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.8 A @ 120 Hz | 26.32 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
CGS283U100V5LCAP ALUM 28000UF 100V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 28000 µF | -10%, +75% | 100 V | 12mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 120 Hz | 18.2 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
550C332T450DE5BCAP ALUM 3300UF 450V SCREW CHAS |
0 |
|
Datasheet |
550C | Bulk | Active | 3300 µF | -10%, +50% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.187" (131.75mm) | - | Chassis Mount | |
|
MAL210238472E3CAP ALUM 4700UF 20% 385V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 4700 µF | ±20% | 385 V | 31mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 22 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
MAL210278472E3CAP ALUM 4700UF 20% 385V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 4700 µF | ±20% | 385 V | 31mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 22 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
ALS71A183QS400CAP ALUM 18000UF 20% 400V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 18000 µF | ±20% | 400 V | 13mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.8 A @ 100 Hz | 37 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
PEH200VV447AMB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 4.7 mF | ±20% | 400 V | 18mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 100 Hz | 42.5 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 5.787" (147.00mm) | - | Chassis Mount | |
|
|
PEH200VV447AMU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 4.7 mF | ±20% | 400 V | 18mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 100 Hz | 42.5 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 5.787" (147.00mm) | - | Chassis Mount | |
|
|
LNT1A105MSEBCAP ALUM 1F 20% 10V SCREW CHAS M |
0 |
|
Datasheet |
LNT | Bulk | Active | 1 F | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.1 A @ 120 Hz | 30.15 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LNT1A105MSENCAP ALUM 1F 20% 10V SCREW CHAS M |
0 |
|
Datasheet |
LNT | Bulk | Active | 1 F | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20.1 A @ 120 Hz | 30.15 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
MAL250116682E3CAP ALUM 6800UF 20% 400V SCREW |
0 |
|
Datasheet |
501 PGM-ST | Box | Active | 6800 µF | ±20% | 400 V | 31mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 25.05 A @ 10 kHz | 24 mOhms | 1.252" (31.80mm) | 3.008" Dia (76.40mm) | 4.598" (116.80mm) | - | Chassis Mount | |
|
|
MAL250156682E3CAP ALUM 6800UF 20% 400V SCREW |
0 |
|
Datasheet |
501 PGM-ST | Box | Active | 6800 µF | ±20% | 400 V | 31mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.7 A @ 100 Hz | 25.05 A @ 10 kHz | 24 mOhms | 1.252" (31.80mm) | 3.008" Dia (76.40mm) | 4.598" (116.80mm) | - | Chassis Mount | |
|
|
PEH200KV6220MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 220 mF | ±20% | 40 V | 5mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.4 A @ 100 Hz | 48.9 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 5.787" (147.00mm) | - | Chassis Mount | |
|
CGS184U025X4CCAP ALUM 180000UF 25V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 180000 µF | -10%, +75% | 25 V | 4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.3 A @ 120 Hz | 39.39 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
DCMC922T500FG2DCAP ALUM 9200UF 500V SCREW CHAS |
0 |
|
Datasheet |
DCMC | Bulk | Active | 9200 µF | -10%, +50% | 500 V | 16.7mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.4 A @ 120 Hz | 27.178 A @ 10 kHz | - | 1.250" (31.75mm) | 3.500" Dia (88.90mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
LNT2G822MSEJCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 31 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
CGS182T450V5LCAP ALUM 1800UF 450V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 1800 µF | -10%, +50% | 450 V | 54mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | 8.1 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
