Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E32D630CSN334MFM9UCAP ALUM 330MF 20% 63V SCREW CHA |
0 |
|
- |
U32D | Bulk | Active | 330 mF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
|
B43732A5478M000CAP ALUM 4700UF 20% 450V SCREW |
0 |
|
- |
B43732 | Bulk | Active | 4700 µF | ±20% | 450 V | 26mOhm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 14 A @ 100 Hz | - | 45 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
|
E32D3B1CSN203KFK0UCAP ALUM SCRW TERM HIGH RIPPLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
LNT1E474MSECAP ALUM 470000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 470000 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.4 A @ 120 Hz | 25.76 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
B43743A9478M000CAP ALUM 4700UF 20% 400V SCREW |
0 |
|
- |
B43743 | Bulk | Active | 4700 µF | ±20% | 400 V | 20mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18.5 A @ 100 Hz | - | 30 mOhms | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 4.693" (119.20mm) | - | Chassis Mount | |
|
MAL210167154E3CAP ALUM 150000UF 20% 40V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 150000 µF | ±20% | 40 V | 5mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 100 Hz | - | 5 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
ALS80C433QS200CAP ALUM 43000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 43000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 A @ 100 Hz | 31.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS80H433QS200CAP ALUM 43000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 43000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 A @ 100 Hz | 31.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS81A433QS200CAP ALUM 43000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 43000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 A @ 100 Hz | 31.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS81C433QS200CAP ALUM 43000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 43000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 A @ 100 Hz | 31.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS81H433QS200CAP ALUM 43000UF 20% 200V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 43000 µF | ±20% | 200 V | 11mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27 A @ 100 Hz | 31.8 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
E36D351CDN163VEM9UCAP ALUM 16MF 350V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 16 mF | -10%, +20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
|
E36D351CPN123AEM9UCAP ALUM 12MF 350V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 12 mF | 0%, +30% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
MAL210246332E3CAP ALUM 3300UF 20% 400V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 3300 µF | ±20% | 400 V | 40mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | - | 27 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
E36D351CHN163TEM9UCAP ALUM 16MF 350V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 16 mF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
|
ETOR401CTH822MEG8UCAP ALUM 8.2MF 20% 400V SCREW CH |
0 |
|
- |
UTOR | Bulk | Active | 8.2 mF | ±20% | 400 V | 10mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 37.1 A @ 120 Hz | 52 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.693" (170.00mm) | - | Chassis Mount | |
|
LNC2V123MSEJCAP ALUM 12000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 12000 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.1 A @ 120 Hz | 42.14 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
E36L451CSS103MEM9UCAP ALUM 10MF 20% 450V SCREW |
0 |
|
- |
U36L | Bulk | Active | 10 mF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 8.661" (220.00mm) | - | Chassis, Stud Mount | |
|

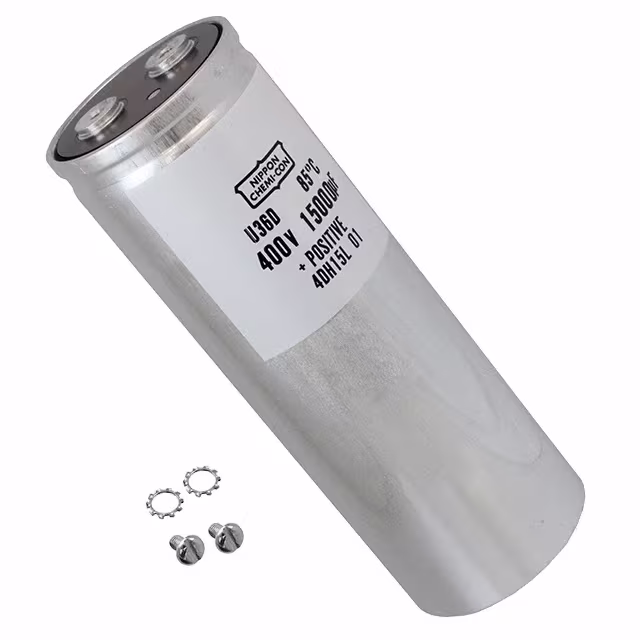

E36D401CAN153MEM9QCAP ALUM 15000UF 20% 400V SCREW |
0 |
|
Datasheet |
U36D | Bulk | Active | 15000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
B41580A9339M000CAP ALUM 33000UF 20% 100V SCREW |
0 |
|
Datasheet |
B41580 | Bulk | Active | 33000 µF | ±20% | 100 V | 5mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21 A @ 100 Hz | - | 8.4 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.677" (144.20mm) | - | Chassis, Stud Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
