Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS71A133QW450CAP ALUM 13000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 13000 µF | ±20% | 450 V | 19mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.9 A @ 100 Hz | 33.9 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71C133QW450CAP ALUM 13000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 13000 µF | ±20% | 450 V | 19mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.9 A @ 100 Hz | 33.9 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|
|
ALS71H133QW450CAP ALUM 13000UF 20% 450V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 13000 µF | ±20% | 450 V | 19mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.9 A @ 100 Hz | 33.9 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.732" (171.00mm) | - | Chassis Mount | |
|

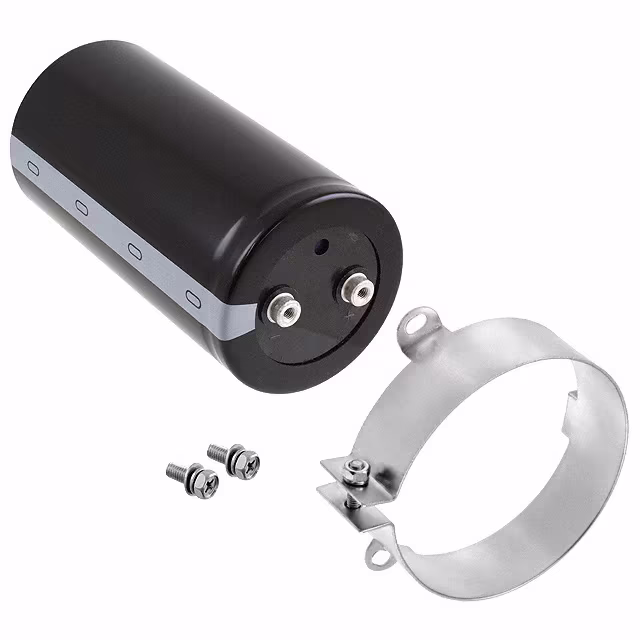

LNY2V123MSEHCAP ALUM 12000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 12000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 A @ 120 Hz | 33.6 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.906" (150.00mm) | - | Chassis Mount | |
|

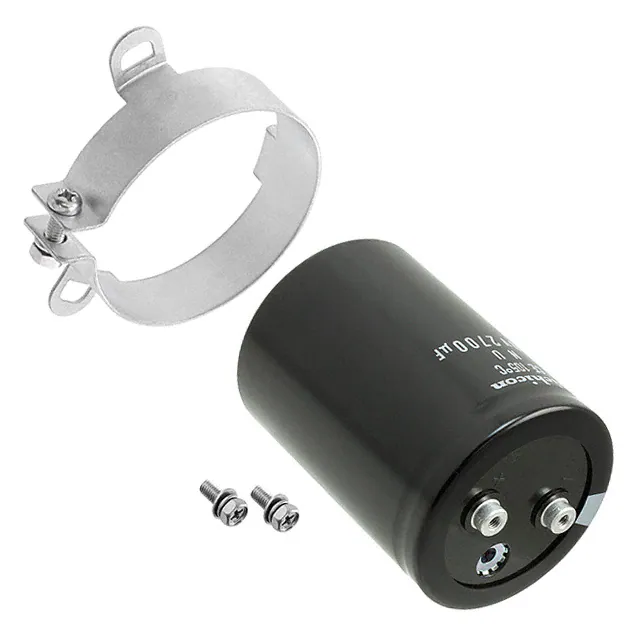

LNU2W392MSEHCAP ALUM 3900UF 20% 450V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 3900 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.4 A @ 120 Hz | 21.56 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
B43726A5478M608CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43726 | Bulk | Active | 4.7 mF | ±20% | 450 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.7 A @ 100 Hz | - | 30 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.185" (131.70mm) | - | Chassis, Stud Mount | |
|
|
B43723A9568M000CAP ALUM 5600UF 20% 400V SCREW |
0 |
|
Datasheet |
B43723 | Bulk | Active | 5600 µF | ±20% | 400 V | 20mOhm @ 100Hz | 12000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15 A @ 100 Hz | - | 34 mOhms | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
LNT2A473MSECAP ALUM 47000UF 20% 100V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 47000 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 19.55 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
LNK2G822MSEJCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 22.9 A @ 120 Hz | 32.06 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.724" (120.00mm) | - | Chassis Mount | |
|
|
E36F421CPN103MFM9UCAP ALUM 10MF 20% 420V SCREW CHA |
0 |
|
- |
U36F | Bulk | Active | 10 mF | ±20% | 420 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
|
ERHB631LGC182MF85MCAP ALUM 1.8MF 20% 630V SCREW CH |
0 |
|
- |
RHB | Bulk | Active | 1.8 mF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.98 A @ 3 kHz | - | 1.240" (31.50mm) | 3.504" Dia (89.00mm) | 3.346" (85.00mm) | - | Chassis Mount | |
|
|
LNY2G103MSEJBBCAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 10000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22 A @ 120 Hz | 30.8 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
LNY2G103MSEJBNCAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 10000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22 A @ 120 Hz | 30.8 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
MAL210146224E3CAP ALUM 220000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 220000 µF | ±20% | 25 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.5 A @ 100 Hz | - | 5 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 4.398" (111.70mm) | - | Chassis Mount | |
|
|
LNX2W682MSEJBBCAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 23.94 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
|
LNX2W682MSEJBNCAP ALUM 6800UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 23.94 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
|
ELXR451LGC472MEF5MCAP ALUM 4.7MF 20% 450V SCREW CH |
0 |
|
- |
LXR | Bulk | Active | 4.7 mF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 21.7 A @ 120 Hz | 30.38 A @ 3 kHz | - | 1.240" (31.50mm) | 3.000" Dia (76.20mm) | 6.102" (155.00mm) | - | Chassis Mount | |
|
|
PEH200ZV4220MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 2.2 mF | ±20% | 500 V | 58mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.1 A @ 100 Hz | 25.1 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 5.787" (147.00mm) | - | Chassis Mount | |
|
|
ALS70G103NT500CAP ALUM 10000UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 10000 µF | ±20% | 500 V | 30mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.4 A @ 100 Hz | 28.7 A @ 10 kHz | 24 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS70H103NT500CAP ALUM 10000UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 10000 µF | ±20% | 500 V | 30mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.4 A @ 100 Hz | 28.7 A @ 10 kHz | 24 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
