Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK2V682MSEHBBCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19 A @ 120 Hz | 26.6 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
|
LNK2V682MSEHBNCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19 A @ 120 Hz | 26.6 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
LNX2V682MSEGCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19.6 A @ 120 Hz | 27.44 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
LQR2V682MSEJBBCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 22.5 A @ 120 Hz | 31.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
LQR2V682MSEJBNCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 22.5 A @ 120 Hz | 31.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
B43713A9228M000CAP ALUM 2200UF 20% 400V SCREW |
0 |
|
Datasheet |
B43713 | Bulk | Active | 2200 µF | ±20% | 400 V | 55mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.34 A @ 100 Hz | - | - | 0.874" (22.20mm) | 2.031" Dia (51.60mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
ETOR401CTN472MEE3UCAP ALUM 4.7MF 20% 400V SCREW CH |
0 |
|
- |
UTOR | Bulk | Active | 4.7 mF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.709" (145.00mm) | - | Chassis Mount | |
|
CGS104U025V5LCAP ALUM 100000UF 25V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 100000 µF | -10%, +75% | 25 V | 5mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.8 A @ 120 Hz | 29.64 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|

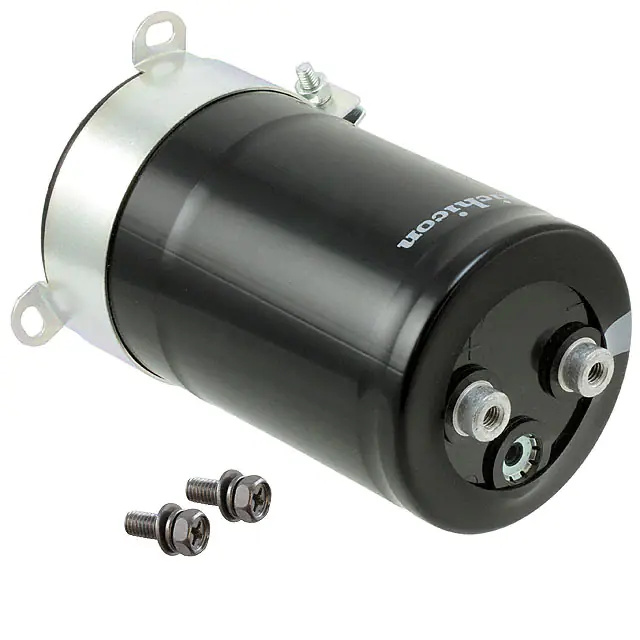

LNT2W222MSEGCAP ALUM 2200UF 20% 450V SCREW |
1 |
|
Datasheet |
LNT | Bulk | Active | 2200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 11.8 A @ 120 Hz | 16.52 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.449" (113.00mm) | - | Chassis Mount | |
|
LQR2V682MSEGCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 6800 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 120 Hz | 32.9 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
LNT2D153MSEBCAP ALUM 15000UF 20% 200V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 15000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 10.4 A @ 120 Hz | 12.48 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
LNT2D153MSENCAP ALUM 15000UF 20% 200V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 15000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 10.4 A @ 120 Hz | 12.48 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
ALS70U392NF550CAP ALUM 3900UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 3900 µF | ±20% | 550 V | 118mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | 19 A @ 10 kHz | 103 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS71A392NF550CAP ALUM 3900UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 3900 µF | ±20% | 550 V | 118mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | 19 A @ 10 kHz | 103 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS71C392NF550CAP ALUM 3900UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 3900 µF | ±20% | 550 V | 118mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.4 A @ 100 Hz | 19 A @ 10 kHz | 103 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
LNX2W472MSEGBBCAP ALUM 4700UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 4700 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 18.2 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNX2W472MSEGBNCAP ALUM 4700UF 20% 450V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 4700 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 18.2 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
ETOR501CTN222MEA5UCAP ALUM 2.2MF 20% 500V SCREW CH |
0 |
|
- |
UTOR | Bulk | Active | 2.2 mF | ±20% | 500 V | 64mOhm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14 A @ 120 Hz | 19.6 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
MAL250177272E3CAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
501 PGM-ST | Box | Active | 2700 µF | ±20% | 450 V | 64mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 15.75 A @ 10 kHz | 45 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | - | - | Chassis Mount | |
|
|
PEH200VO4220MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 2.2 mF | ±20% | 400 V | 39mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 100 Hz | 25.6 A @ 10 kHz | - | 1.260" (32.00mm) | 2.622" Dia (66.60mm) | 4.213" (107.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
