Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNK2W332MSEHBBCAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.9 A @ 120 Hz | 18.06 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
LNK2W332MSEHBNCAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.9 A @ 120 Hz | 18.06 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
CGS174U010V3CCAP ALUM 170000UF 10V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 170000 µF | -10%, +75% | 10 V | 13mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.5 A @ 120 Hz | 17.55 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 3.125" (79.38mm) | - | Chassis Mount | |
|
|
E36L451CAN562MEE3QCAP ALUM 5.6MF 20% 450V SCREW CH |
0 |
|
- |
U36L | Bulk | Active | 5.6 mF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
E36L451CSN682MEE3UCAP ALUM 6.8MF 20% 450V SCREW CH |
0 |
|
- |
U36L | Bulk | Active | 6.8 mF | ±20% | 450 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
CGS671T500R5LCAP ALUM 670UF 500V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 670 µF | -10%, +50% | 500 V | 150mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 5.25 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
E36F401CAS822MEE3UCAP ALUM 8.2MF 20% 400V SCREW |
0 |
|
- |
U36F | Bulk | Active | 8.2 mF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.669" (144.00mm) | - | Chassis, Stud Mount | |
|
|
LNT1A474MSEBCAP ALUM 470000UF 20% 10V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 470000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 25.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
LNT1A474MSENCAP ALUM 470000UF 20% 10V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 470000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 25.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
E36D451CDN352LEM9UCAP ALUM SCRW TERM HIGH RIPPLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

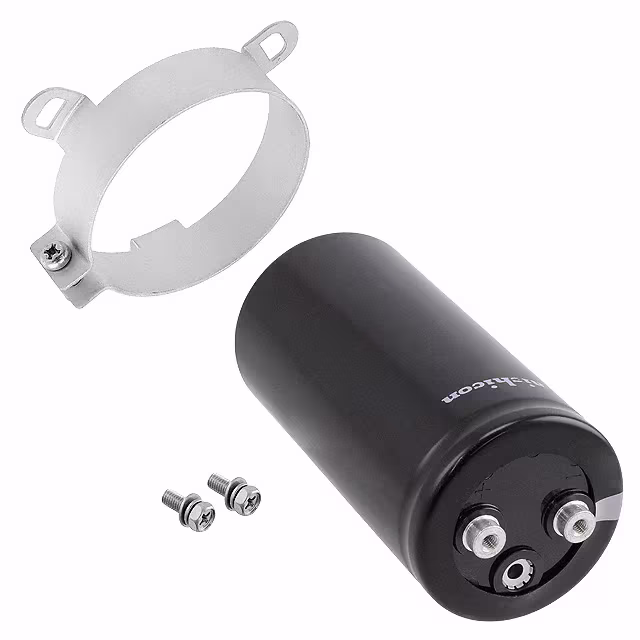

LNK2V562MSEGCAP ALUM 5600UF 20% 350V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.3 A @ 120 Hz | 24.22 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
|
CGS282T250V4CCAP ALUM 2800UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 2800 µF | -10%, +50% | 250 V | 46mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.5 A @ 120 Hz | 9.75 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
E36F351CHS682MEE3UCAP ALUM 6.8MF 20% 350V SCREW |
0 |
|
- |
U36F | Bulk | Active | 6.8 mF | ±20% | 350 V | 16mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.9 A @ 120 Hz | 27.8 A @ 3 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.669" (144.00mm) | - | Chassis, Stud Mount | |
|
|
LNY2W472MSEHBBCAP ALUM 4700UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 4700 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
|
LNY2W472MSEHBNCAP ALUM 4700UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 4700 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
ALS80A103QM350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 10000 µF | ±20% | 350 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 25.8 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80C103QM350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 10000 µF | ±20% | 350 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 25.8 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS80H103QM350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 10000 µF | ±20% | 350 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 25.8 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81C103QM350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 10000 µF | ±20% | 350 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 25.8 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|
|
ALS81H103QM350CAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 10000 µF | ±20% | 350 V | 22mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | 25.8 A @ 10 kHz | 14 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.236" (133.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
