Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS81P824NS025CAP ALUM 820000UF 20% 25V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 820000 µF | ±20% | 25 V | 6mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.2 A @ 100 Hz | 29.7 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
|
ALS81U824NS025CAP ALUM 820000UF 20% 25V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 820000 µF | ±20% | 25 V | 6mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.2 A @ 100 Hz | 29.7 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 7.717" (196.00mm) | - | Chassis Mount | |
|
MAL250117272E3CAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
501 PGM-ST | Box | Active | 2700 µF | ±20% | 450 V | 64mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 15.75 A @ 10 kHz | 45 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | - | - | Chassis Mount | |
|
MAL250157272E3CAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
501 PGM-ST | Box | Active | 2700 µF | ±20% | 450 V | 64mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.5 A @ 100 Hz | 15.75 A @ 10 kHz | 45 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | - | - | Chassis Mount | |
|
LNR1E334MSENCAP ALUM 330000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 330000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.8 A @ 120 Hz | 28.52 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNX2G472MSEGBBCAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 4700 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 120 Hz | 17.64 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
LNX2G472MSEGBNCAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 4700 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.6 A @ 120 Hz | 17.64 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
B43742A6158M000CAP ALUM 1500UF 20% 500V SCREW |
0 |
|
- |
B43742 | Bulk | Active | 1500 µF | ±20% | 500 V | 55mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.6 A @ 100 Hz | - | 75 mOhms | 0.874" (22.20mm) | 2.031" Dia (51.60mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
|
LNR2D153MSEBCAP ALUM 15000UF 20% 200V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 15000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 15.6 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNR2D153MSENCAP ALUM 15000UF 20% 200V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 15000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 15.6 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
MAL210636473E3CAP ALUM 47000UF 25V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 47000 µF | -10%, +30% | 25 V | 10mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.5 A @ 100 Hz | - | 10 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.402" (111.80mm) | - | Chassis Mount | |
|
|
MAL210676473E3CAP ALUM 47000UF 25V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 47000 µF | -10%, +30% | 25 V | 10mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.5 A @ 100 Hz | - | 10 mOhms | 1.122" (28.50mm) | 2.559" Dia (65.00mm) | 4.402" (111.80mm) | - | Chassis Mount | |
|
|
E36F401HLB562TED0UCAP ALUM 5.6MF 400V SCREW CHAS M |
0 |
|
- |
U36F | Bulk | Active | 5.6 mF | -10%, +50% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
|
7P152V360A072CAP ALUM 360V POLAR |
0 |
|
- |
7P | Bulk | Active | 1.5 mF | -10%, +20% | 360 V | 133mOhm @ 120Hz | - | -20°C ~ 55°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|

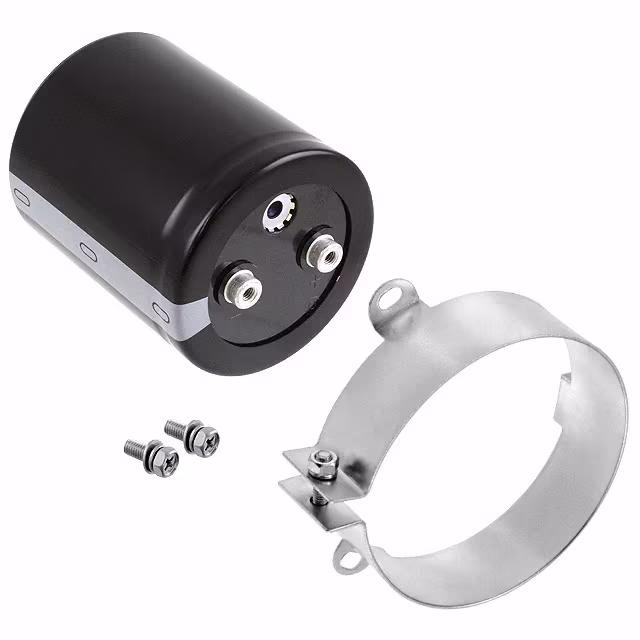

LNC2V562MSEHCAP ALUM 5600UF 20% 350V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.6 A @ 120 Hz | 24.64 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.661" (93.00mm) | - | Chassis Mount | |
|
CGH621T450V2LCAP ALUM 620UF 450V SCREW CHAS M |
0 |
|
Datasheet |
CGH | Bulk | Active | 620 µF | -10%, +50% | 450 V | 159.6mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.567 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
CGS621T450V2LCAP ALUM 620UF 450V SCREW CHAS M |
0 |
|
Datasheet |
CGS | Bulk | Active | 620 µF | -10%, +50% | 450 V | 201mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.6 A @ 120 Hz | 3.9 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 2.625" (66.68mm) | - | Chassis Mount | |
|
|
301AR122M063JP8ERADIAL |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
B41580A7100M000CAP ALUM 100000UF 20% 40V SCREW |
0 |
|
Datasheet |
B41580 | Bulk | Active | 100000 µF | ±20% | 40 V | 8.2mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 A @ 100 Hz | - | 7 mOhms | 1.122" (28.50mm) | 2.532" Dia (64.30mm) | 4.201" (106.70mm) | - | Chassis, Stud Mount | |
|
|
LNU2H182MSEGBBCAP ALUM 1800UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 1800 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 10.36 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.055" (103.00mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
