Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKXN421ELL560MJ50SCAP ALUM 420V POLAR |
1,000 |
|
- |
KXN | Bulk | Active | 56 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 545 mA @ 120 Hz | 1.3625 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
EKXN421ELL820MM20SCAP ALUM 82UF 20% 420V RADIAL TH |
899 |
|
Datasheet |
KXN | Bulk | Active | 82 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 645 mA @ 120 Hz | 1.6125 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
EKXJ451ELL560MK45SCAP ALUM 56UF 20% 450V RADIAL TH |
500 |
|
Datasheet |
KXJ | Bulk | Active | 56 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 590 mA @ 120 Hz | 1.475 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.831" (46.50mm) | - | Through Hole | |
|
ELXV800ELL821MM35SCAP ALUM 820UF 20% 80V RADIAL TH |
250 |
|
Datasheet |
LXV | Bulk | Active | 820 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 995 mA @ 120 Hz | 1.99 A @ 100 kHz | 52 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|

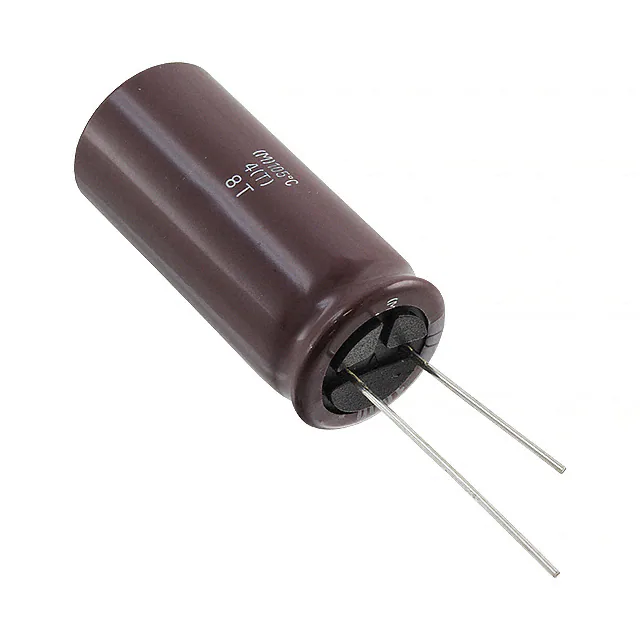

EKYB6R3ELL223MM40SCAP ALUM 22000UF 20% 6.3V RADIAL |
235 |
|
Datasheet |
KYB | Bulk | Active | 22000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.995 A @ 120 Hz | 4.7 A @ 100 kHz | 11 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
EKXN401ELL101MK40SCAP ALUM 400V POLAR |
1,000 |
|
- |
KXN | Bulk | Active | 100 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 775 mA @ 120 Hz | 1.7438 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EKXJ351ELL121MU40SCAP ALUM 120UF 20% 350V RADIAL |
997 |
|
Datasheet |
KXJ | Bulk | Active | 120 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 835 mA @ 120 Hz | 1.87875 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
UBT1K471MHD8CAP ALUM 470UF 20% 80V RADIAL TH |
783 |
|
Datasheet |
UBT | Bulk | Active | 470 µF | ±20% | 80 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | 110 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41231A3229M000CAP ALUM 22000UF 20% 10V SNAP TH |
636 |
|
Datasheet |
B41231 | Bulk | Active | 22000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.79 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKZM250EC5222ML20SCAP ALUM 2200UF 20% 25V RADIAL |
500 |
|
Datasheet |
KZM | Bulk | Active | 2200 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4375 A @ 120 Hz | 3.25 A @ 100 kHz | 15 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKXJ401ELL121ML40SCAP ALUM 120UF 20% 400V RADIAL |
478 |
|
Datasheet |
KXJ | Bulk | Active | 120 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 860 mA @ 120 Hz | 1.935 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
EKMM451VSN560MP25SCAP ALUM 56UF 20% 450V SNAP TH |
384 |
|
Datasheet |
KMM | Bulk | Active | 56 µF | ±20% | 450 V | 5.92Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 572 mA @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B41231B8228M000CAP ALUM 2200UF 20% 63V SNAP TH |
357 |
|
Datasheet |
B41231 | Bulk | Active | 2200 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.58 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
450BXG47MEFC18X20CAP ALUM 450V POLAR |
500 |
|
Datasheet |
BXG | Bulk | Active | 47 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 1 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EGXF800ELL911MM30SCAP ALUM 910UF 20% 80V RADIAL TH |
496 |
|
Datasheet |
GXF | Bulk | Active | 910 µF | ±20% | 80 V | 37mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.86 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
|
EKMM451VSN680MQ25SCAP ALUM 450V POLAR |
400 |
|
Datasheet |
KMM | Bulk | Active | 68 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 715 mA @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UBT2G330MHD8TNCAP ALUM 33UF 20% 400V RADIAL TH |
240 |
|
Datasheet |
UBT | Cut Tape (CT) | Active | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 125°C | -25°C ~ 125°C | Polar | - | Automotive | 189 mA @ 120 Hz | 340.2 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELBV250ELL622AL25SCAP ALUM 6200UF 25V RADIAL TH |
894 |
|
Datasheet |
LBV | Bulk | Active | 6200 µF | 0%, +30% | 25 V | 24mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.955 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
350WXA68MEFC18X25CAP ALUM 68UF 20% 350V RADIAL TH |
500 |
|
Datasheet |
WXA | Bulk | Active | 68 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 397 mA @ 120 Hz | 595.5 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EGPD630ELL112MK40HCAP ALUM 1100UF 20% 63V RADIAL |
500 |
|
Datasheet |
GPD | Bulk | Active | 1100 µF | ±20% | 63 V | 31mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.766 A @ 120 Hz | 4.61 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
