Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REF1840182M063BCAP ALUM 1.8MF 20% 63V RADIAL TH |
170 |
|
Datasheet |
REF | Bulk | Active | 1.8 mF | ±20% | 63 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.368 A @ 120 Hz | 2.28 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
UCD2A221MNS1MSCAP ALUM 100V POLAR |
125 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 220 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 458.5 mA @ 120 Hz | 917 mA @ 100 kHz | 150 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
MAL202190548E3CAP ALUM 15UF 20% 100V AXIAL TH |
2,000 |
|
Datasheet |
021 ASM | Cut Tape (CT) | Active | 15 µF | ±20% | 100 V | 8.5Ohm | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 107.8 mA @ 10 kHz | 6 Ohms | - | 0.315" Dia x 0.433" L (8.00mm x 11.00mm) | - | - | Through Hole | |
|
B41231A5109M000CAP ALUM 10000UF 20% 25V SNAP TH |
1,402 |
|
Datasheet |
B41231 | Bulk | Active | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKXJ221ELL221MU40SCAP ALUM 220UF 20% 220V RADIAL |
1,000 |
|
Datasheet |
KXJ | Bulk | Active | 220 µF | ±20% | 220 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.13 A @ 120 Hz | 2.5425 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
EKXL451ELL820MK50SCAP ALUM 82UF 20% 450V RADIAL TH |
991 |
|
Datasheet |
KXL | Bulk | Active | 82 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 1.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
400BXG56MEFC18X20CAP ALUM 400V POLAR |
500 |
|
Datasheet |
BXG | Bulk | Active | 56 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EKXJ351ELL820ML25SCAP ALUM 82UF 20% 350V RADIAL TH |
393 |
|
Datasheet |
KXJ | Bulk | Active | 82 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 625 mA @ 120 Hz | 1.5625 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
REA1835472M025BCAP ALUM 4.7MF 20% 25V RADIAL TH |
282 |
|
Datasheet |
REA | Bulk | Active | 4.7 mF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.618 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
REA1835153M006BCAP ALUM 15MF 20% 6.3V RADIAL TH |
281 |
|
Datasheet |
REA | Bulk | Active | 15 mF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.376 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
UCZ2A181MNJ1MSCAP ALUM 100V POLAR |
250 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 180 µF | ±20% | 100 V | 170mOhm @ 100kHz | 3500 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 550 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
UBX1K101MHLCAP ALUM 100UF 20% 80V RADIAL TH |
124 |
|
Datasheet |
UBX | Bulk | Active | 100 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 410 mA @ 120 Hz | 820 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKXJ251ELL181MU40SCAP ALUM 180UF 20% 250V RADIAL |
1,000 |
|
Datasheet |
KXJ | Bulk | Active | 180 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.02 A @ 120 Hz | 2.295 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
35PX4700MEFC16X35.5CAP ALUM 4700UF 20% 35V RADIAL |
979 |
|
Datasheet |
PX | Bulk | Active | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.1505 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
UHW1V152MHD1TNCAP ALUM 1500UF 20% 35V RADIAL |
245 |
|
Datasheet |
UHW | Cut Tape (CT) | Active | 1500 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.145 A @ 120 Hz | 3.575 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UCZ2A221MNJ1MSCAP ALUM 100V POLAR |
150 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 220 µF | ±20% | 100 V | 120mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 800 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
|
UCZ1K391MNJ1MSCAP ALUM 80V POLAR |
150 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 390 µF | ±20% | 80 V | 120mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 800 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|

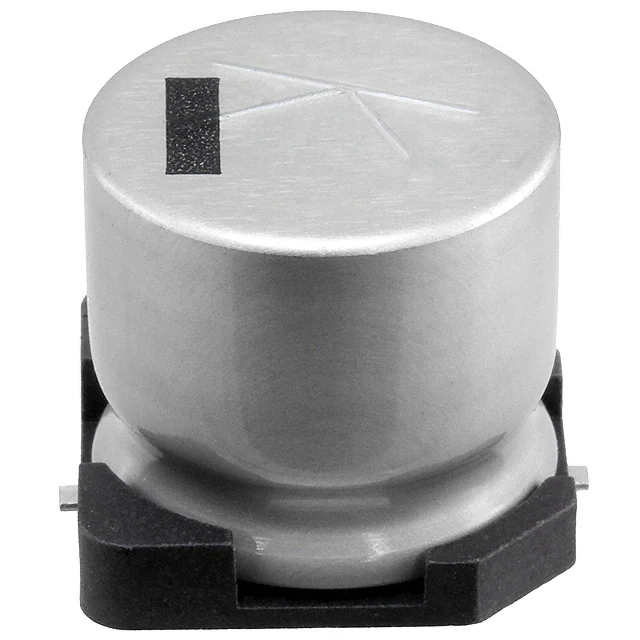

10TLV4700M18X16.5CAP ALUM 4700UF 20% 10V SMD |
125 |
|
Datasheet |
TLV | Tape & Reel (TR) | Active | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.236 A @ 120 Hz | 2.06 A @ 100 kHz | 44 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
UCD1K471MNS1MSCAP ALUM 80V POLAR |
125 |
|
Datasheet |
UCD | Tray | Active | 470 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 458.5 mA @ 120 Hz | 917 mA @ 100 kHz | 150 mOhms | - | 0.709" Dia (18.00mm) | 0.689" (17.50mm) | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Surface Mount | |
|
|
UTH2G560MNDCAP ALUM 400V POLAR |
1,200 |
|
Datasheet |
UTH | Cut Tape (CT) | Active | 56 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 768 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
