Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL210116223E3CAP ALUM 22000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 22000 µF | ±20% | 25 V | 27mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 100 Hz | - | 22 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
MAL210119222E3CAP ALUM 2200UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 2200 µF | ±20% | 100 V | 50mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.2 A @ 100 Hz | - | 29 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
MAL210156223E3CAP ALUM 22000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 22000 µF | ±20% | 25 V | 27mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 100 Hz | - | 22 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
MAL210159222E3CAP ALUM 2200UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 2200 µF | ±20% | 100 V | 50mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.2 A @ 100 Hz | - | 29 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
LKG1J153MKNCAP ALUM 15000UF 20% 63V SLD LUG |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 15000 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 6.7 A @ 120 Hz | - | - | 0.551" (14.00mm) | 1.575" Dia (40.00mm) | 4.055" (103.00mm) | - | Through Hole | |
|
PEH536VEQ4150M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 1.5 mF | ±20% | 400 V | 61mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | 22.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 4.016" (102.00mm) | - | Through Hole | |
|
|
PEH536VEQ4150M4CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 1.5 mF | ±20% | 400 V | 61mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | 22.9 A @ 20 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 4.016" (102.00mm) | - | Through Hole | |
|

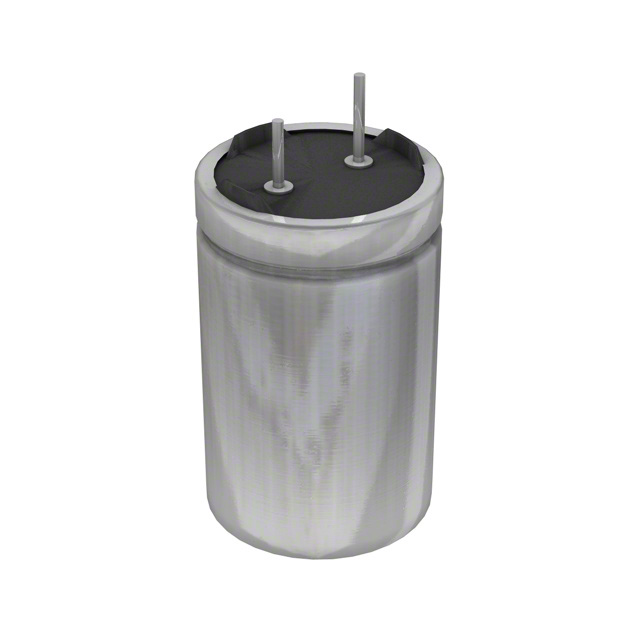

VPR182U025N1LCAP ALUM 1800UF 25V RADIAL TH |
0 |
|
Datasheet |
VPR | Bulk | Active | 1800 µF | -10%, +75% | 25 V | 35mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.006 A @ 10 kHz | - | 0.402" (10.20mm) | 1.000" Dia (25.40mm) | 1.626" (41.30mm) | - | Through Hole | |
|
ALF20G222KP450CAP ALUM 2200UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 2200 µF | ±20% | 450 V | 70mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.81 A @ 100 Hz | 11.12 A @ 10 kHz | 47 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
|
E36D750LPN672UD79UCAP ALUM 6.7MF 75V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 6.7 mF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.150" (80.00mm) | - | Chassis Mount | |
|
|
E36D451HPN161TC79UCAP ALUM 160UF 450V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 160 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
ALF40G472KP250CAP ALUM 4700UF 20% 250V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 4700 µF | ±20% | 250 V | 44mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8.36 A @ 100 Hz | 12.3 A @ 10 kHz | 30 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
ALF70G152KP550CAP ALUM 1500UF 20% 550V PRESS |
0 |
|
Datasheet |
ALF70 | Bulk | Active | 1500 µF | ±20% | 550 V | 278mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.72 A @ 100 Hz | 8.79 A @ 10 kHz | 239 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
|
E92L401VNT222MC80UCAP ALUM 2.2MF 20% 400V SNAP TH |
0 |
|
- |
U92L | Bulk | Active | 2.2 mF | ±20% | 400 V | 54mOhm @ 120Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 120 Hz | 12.87 A @ 100 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 3.248" (82.50mm) | - | Through Hole | |
|
420HFG1200MBN45X65CAP ALUM 1200UF 20% 420V RADIAL |
0 |
|
- |
HFG | Bulk | Active | 1200 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 6.16 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 2.638" (67.00mm) | - | Through Hole | |
|
|
E36D161CDS222MC79UCAP ALUM 2.2MF 20% 160V SCREW |
0 |
|
- |
U36D | Bulk | Active | 2.2 mF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.150" (80.00mm) | - | Chassis, Stud Mount | |
|
LNT1A683MSECAP ALUM 68000UF 20% 10V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 68000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | 7.82 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
ALF40G392FP250CAP ALUM 3900UF 20% 250V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 3900 µF | ±20% | 250 V | 50mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.9 A @ 100 Hz | 12.43 A @ 10 kHz | 33 mOhms | 0.984" (25.00mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
|
ALF20G332KP350CAP ALUM 3300UF 20% 350V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 3300 µF | ±20% | 350 V | 54mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.54 A @ 100 Hz | 11.57 A @ 10 kHz | 36 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
|
E36L400CGS473MC92UCAP ALUM 47MF 20% 40V SCREW |
0 |
|
- |
U36L | Bulk | Active | 47 mF | ±20% | 40 V | - | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.661" (93.00mm) | - | Chassis, Stud Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
