Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
350HFG1800MBN45X75CAP ALUM 1800UF 20% 350V RADIAL |
0 |
|
- |
HFG | Bulk | Active | 1800 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.19 A @ 120 Hz | 7.266 A @ 10 kHz | - | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 3.031" (77.00mm) | - | Through Hole | |
|
E36D750HPN452UCB7UCAP ALUM 4.5MF 75V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 4.5 mF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.606" (117.00mm) | - | Chassis Mount | |
|
B41458B5689M000CAP ALUM 68000UF 20% 25V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Active | 68000 µF | ±20% | 25 V | 12mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 100 Hz | - | 9.3 mOhms | 0.874" (22.20mm) | 2.032" Dia (51.60mm) | 3.217" (81.70mm) | - | Chassis Mount | |
|
|
E36F101HLN103MC67UCAP ALUM 10MF 20% 100V SCREW CHA |
0 |
|
- |
U36F | Bulk | Active | 10 mF | ±20% | 100 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.638" (67.00mm) | - | Chassis Mount | |
|
ALS70H122KE550CAP ALUM 1200UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 1200 µF | ±20% | 550 V | 385mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.1 A @ 100 Hz | 9.7 A @ 10 kHz | 336 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
ALS71H122KE550CAP ALUM 1200UF 20% 550V SCREW |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 1200 µF | ±20% | 550 V | 385mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.1 A @ 100 Hz | 9.7 A @ 10 kHz | 336 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
ALS80A122KE500CAP ALUM 1200UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 1200 µF | ±20% | 500 V | 189mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | 10.8 A @ 10 kHz | 141 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
ALS80H122KE500CAP ALUM 1200UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 1200 µF | ±20% | 500 V | 189mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | 10.8 A @ 10 kHz | 141 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
ALS81H122KE500CAP ALUM 1200UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 1200 µF | ±20% | 500 V | 189mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.7 A @ 100 Hz | 10.8 A @ 10 kHz | 141 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
DCMC152T400BJ5MCAP ALUM 1500UF 400V SCREW CHAS |
0 |
|
Datasheet |
DCMC | Bulk | Active | 1500 µF | -10%, +50% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875" (22.23mm) | 2.000" Dia (50.80mm) | 3.687" (93.65mm) | - | Chassis Mount | |
|

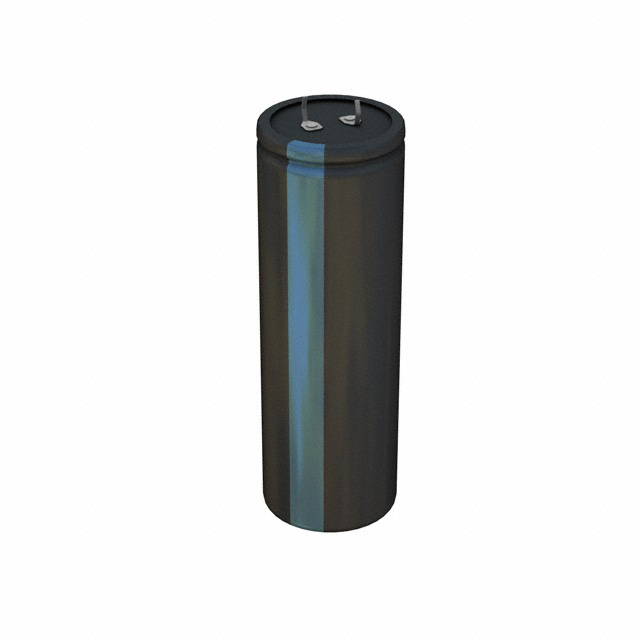

380LX821M500A102CAP ALUM 820UF 20% 500V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 820 µF | ±20% | 500 V | 246mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.97 A @ 120 Hz | 5.56 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
ALF70C182KP500CAP ALUM 1800UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF70 | Bulk | Active | 1800 µF | ±20% | 500 V | 130mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.68 A @ 100 Hz | 12.15 A @ 10 kHz | 96 mOhms | 0.886" (22.50mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole, Press-Fit | |
|
|
PEH169KC510VMB2CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
PEH169 | Box | Active | 10 mF | ±20% | 40 V | 18mOhm @ 100Hz | 14000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.9 A @ 100 Hz | 24.5 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.933" (74.50mm) | - | Chassis Mount | |
|
|
E36D750HPN582UCE3UCAP ALUM 5.8MF 75V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 5.8 mF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
53D113G025JP6E3CAP ALUM 11000UF 25V AXIAL TH |
0 |
|
Datasheet |
53D | Bulk | Active | 11000 µF | -10%, +75% | 25 V | 33mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.23 A @ 120 Hz | 4.865 A @ 1 kHz | - | - | 1.012" Dia x 2.642" L (25.70mm x 67.10mm) | - | - | Through Hole | |
|
|
E91S501VND102MU75UCAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MAL216356471E3CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
163 PLL-PW | Bulk | Active | 470 µF | ±20% | 400 V | 485mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 100 Hz | - | 407 mOhms | - | 1.575" Dia (40.00mm) | 2.165" (55.00mm) | - | Through Hole | |
|
|
MAL216358471E3CAP ALUM 470UF 20% 385V SNAP TH |
0 |
|
Datasheet |
163 PLL-PW | Bulk | Active | 470 µF | ±20% | 385 V | 260mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.37 A @ 100 Hz | - | 205 mOhms | - | 1.575" Dia (40.00mm) | 2.165" (55.00mm) | - | Through Hole | |
|
|
E32D300HPN193UD79UCAP ALUM 19MF 30V SCREW CHAS MT |
0 |
|
- |
U32D | Bulk | Active | 19 mF | -10%, +75% | 30 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.150" (80.00mm) | - | Chassis Mount | |
|
CG232U035R2CCAP ALUM 2300UF 35V SCREW CHAS M |
0 |
|
Datasheet |
CG | Bulk | Active | 2300 µF | -10%, +75% | 35 V | 51mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.37 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
