Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70G392KP350CAP ALUM 3900UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 3900 µF | ±20% | 350 V | 41mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.11 A @ 100 Hz | 16.74 A @ 10 kHz | 23 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
ALC70H392KP350CAP ALUM 3900UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 3900 µF | ±20% | 350 V | 41mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.11 A @ 100 Hz | 16.74 A @ 10 kHz | 23 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
ALC70C621EL600CAP ALUM 620UF 20% 600V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 620 µF | ±20% | 600 V | 214mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.15 A @ 100 Hz | 8.24 A @ 10 kHz | 149 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALC70F621EL600CAP ALUM 620UF 20% 600V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 620 µF | ±20% | 600 V | 214mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.15 A @ 100 Hz | 8.24 A @ 10 kHz | 149 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
DCM782U075EC2BCAP ALUM 7800UF 75V SCREW CHAS M |
0 |
|
Datasheet |
DCM | Bulk | Active | 7800 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.750" (19.05mm) | 1.750" Dia (44.45mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
CG252U016R2CCAP ALUM 2500UF 16V SCREW CHAS M |
0 |
|
Datasheet |
CG | Bulk | Active | 2500 µF | -10%, +75% | 16 V | 47mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
400HFG1200MBN35X95CAP ALUM 1200UF 20% 400V RADIAL |
0 |
|
Datasheet |
HFG | Bulk | Active | 1200 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.97 A @ 120 Hz | 6.958 A @ 10 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.819" (97.00mm) | - | Through Hole | |
|
|
600D107G040DG4E3CAP ALUM 100UF 40V AXIAL TH |
0 |
|
Datasheet |
600D | Tray | Active | 100 µF | - | 40 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 1.375" L (9.53mm x 34.93mm) | - | - | Through Hole | |
|
|
600D107F050DG4E3CAP ALUM 100UF 50V AXIAL TH |
0 |
|
Datasheet |
600D | Tray | Active | 100 µF | -10%, +50% | 50 V | 1.5Ohm @ 120Hz | - | -55°C ~ 125°C | Polar | - | General Purpose | 192 mA @ 120 Hz | 268.8 mA @ 1 kHz | - | - | 0.375" Dia x 1.375" L (9.53mm x 34.93mm) | - | - | Through Hole | |
|
|
600D157G030DG4E3CAP ALUM 150UF 30V AXIAL TH |
0 |
|
Datasheet |
600D | Tray | Active | 150 µF | - | 30 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 1.375" L (9.53mm x 34.93mm) | - | - | Through Hole | |
|
|
B43415C9218A000CAP ALUM 2100UF 360V SOLDER LUG |
0 |
|
Datasheet |
B43415 | Bulk | Active | 2100 µF | -10%, +20% | 360 V | - | - | -40°C ~ 60°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 2.590" (65.80mm) | - | Through Hole | |
|
MAL210116153E3CAP ALUM 15000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 15000 µF | ±20% | 25 V | 29mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 22 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
MAL210156153E3CAP ALUM 15000UF 20% 25V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 15000 µF | ±20% | 25 V | 29mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.7 A @ 100 Hz | - | 22 mOhms | 0.504" (12.80mm) | 1.378" Dia (35.00mm) | 2.744" (69.70mm) | - | Chassis Mount | |
|
|
500C172T200AJ2BCAP ALUM 1700UF 200V SCREW CHAS |
0 |
|
Datasheet |
500C | Bulk | Active | 1700 µF | -10%, +50% | 200 V | 63.9mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | 5.4 A @ 120 Hz | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 3.687" (93.65mm) | - | Chassis Mount | |
|

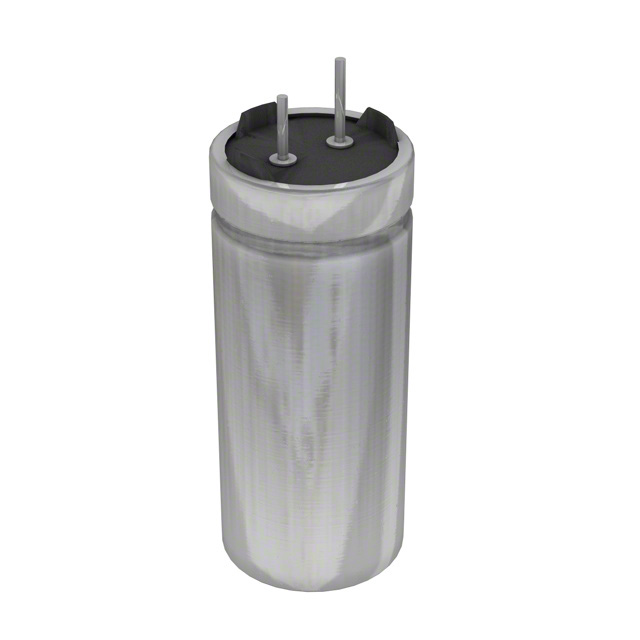

VPR372U016L2CCAP ALUM 3700UF 16V RADIAL TH |
0 |
|
Datasheet |
VPR | Bulk | Active | 3700 µF | -10%, +75% | 16 V | 26mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 3.981 A @ 10 kHz | - | 0.299" (7.60mm) | 0.874" Dia (22.20mm) | 2.126" (54.00mm) | - | Through Hole | |
|
CAP-20/440CAP ALUM 20UF 3% 440V QC CHAS MT |
0 |
|
Datasheet |
HCK, Motor Run | Box | Active | 20 µF | ±3% | 440 V | - | 60000 Hrs @ 70°C | -40°C ~ 70°C | Polar | - | HVAC | - | - | - | - | 3.420" L x 2.900" W (86.87mm x 73.66mm) | 2.900" (73.66mm) | - | Chassis Mount | |
|
|
E36D101LPN702UCA5UCAP ALUM 7MF 100V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 7 mF | -10%, +75% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
ALC70C753KP063CAP ALUM 75000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 75000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.87 A @ 100 Hz | 19.71 A @ 10 kHz | 9 mOhms | 0.886" (22.50mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
ALC70E753KP063CAP ALUM 75000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 75000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.87 A @ 100 Hz | 19.71 A @ 10 kHz | 9 mOhms | 0.886" (22.50mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
ALC70G753KP063CAP ALUM 75000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 75000 µF | ±20% | 63 V | 10mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.87 A @ 100 Hz | 19.71 A @ 10 kHz | 9 mOhms | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.213" (107.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
