Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80E203FP100CAP ALUM 20000UF 20% 100V SNAP |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 20000 µF | ±20% | 100 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.96 A @ 100 Hz | 17.86 A @ 10 kHz | 16 mOhms | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
ALC80G203FP100CAP ALUM 20000UF 20% 100V SNAP |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 20000 µF | ±20% | 100 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.96 A @ 100 Hz | 17.86 A @ 10 kHz | 16 mOhms | 0.984" (25.00mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
ALC80H203FP100CAP ALUM 20000UF 20% 100V SNAP |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 20000 µF | ±20% | 100 V | 18mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.96 A @ 100 Hz | 17.86 A @ 10 kHz | 16 mOhms | 0.984" (25.00mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
MAL209516561E3CAP ALUM 560UF 20% 400V SNAP TH |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 560 µF | ±20% | 400 V | 180mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 100 Hz | - | 105 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.362" (60.00mm) | - | Through Hole | |
|
|
MAL209566561E3CAP ALUM 560UF 20% 400V RADIAL |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 560 µF | ±20% | 400 V | 180mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 100 Hz | - | 105 mOhms | - | 1.378" Dia (35.00mm) | 2.362" (60.00mm) | - | Through Hole | |
|

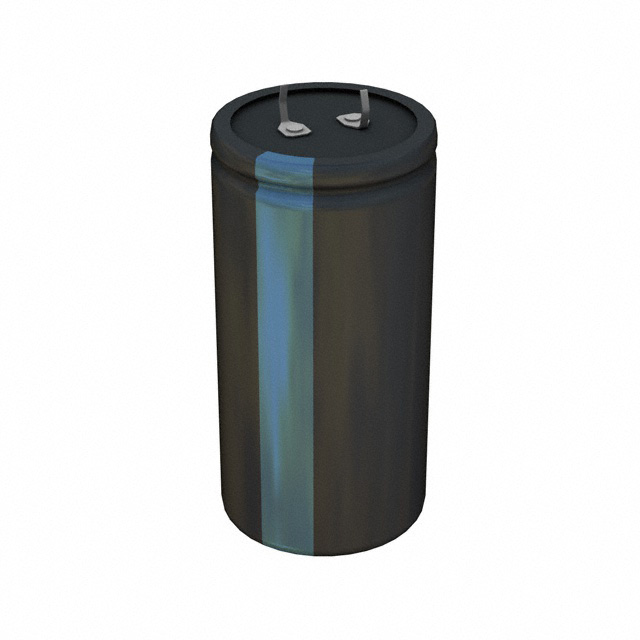

380LX471M500A072CAP ALUM 470UF 20% 500V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 470 µF | ±20% | 500 V | 428mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
B43512A0108M000CAP ALUM 1000UF 20% 420V SNAP TH |
0 |
|
Datasheet |
B43512 | Bulk | Active | 1000 µF | ±20% | 420 V | 120mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.75 A @ 100 Hz | - | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 3.031" (77.00mm) | - | Through Hole | |
|
|
MAL209515561E3CAP ALUM 560UF 20% 350V SNAP TH |
0 |
|
Datasheet |
095 PLL-4TSI | Tape & Box (TB) | Active | 560 µF | ±20% | 350 V | 196mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 100 Hz | - | 120 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
E36D151LPN212TCA5UCAP ALUM 2.1MF 150V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 2.1 mF | -10%, +50% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
E36D201LPN142TC79UCAP ALUM 1.4MF 200V SCREW CHAS M |
0 |
|
- |
U36D | Bulk | Active | 1.4 mF | -10%, +50% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
|
MAL216255473E3CAP ALUM 47000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
162 PLL-PW | Bulk | Active | 47000 µF | ±20% | 16 V | 22mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.46 A @ 100 Hz | - | 18 mOhms | - | 1.575" Dia (40.00mm) | 2.165" (55.00mm) | - | Through Hole | |
|
|
E32D161LPN272MC54UCAP ALUM 2.7MF 20% 160V SCREW CH |
0 |
|
- |
U32D | Bulk | Active | 2.7 mF | ±20% | 160 V | 59.6mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.98 A @ 120 Hz | 7.0218 A @ 50 kHz | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
|
E36D350HPN533UC79UCAP ALUM 53MF 35V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 53 mF | -10%, +75% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 3.110" (79.00mm) | - | Chassis Mount | |
|
|
ALS31A222KE200CAP ALUM SCREW TERM 85C |
0 |
|
Datasheet |
ALS31 | Box | Active | 2.2 mF | ±20% | 200 V | 73mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.2 A @ 100 Hz | 9.7 A @ 10 kHz | 60 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
|
53D153F025JP6CAP ALUM 15000UF 25V AXIAL TH |
0 |
|
Datasheet |
53D | Bulk | Active | 15000 µF | -10%, +50% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.012" Dia x 2.642" L (25.70mm x 67.10mm) | - | - | Through Hole | |
|
|
E32D251HPN321UAA5UCAP ALUM 320UF 250V SCREW CHAS M |
0 |
|
- |
U32D | Bulk | Active | 320 µF | -10%, +75% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
B43512B0108M000CAP ALUM 1000UF 20% 420V SNAP TH |
0 |
|
Datasheet |
B43512 | Bulk | Active | 1000 µF | ±20% | 420 V | 130mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.62 A @ 100 Hz | - | 200 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
|
E32D201HPN152MCA5UCAP ALUM 1.5MF 20% 200V SCREW CH |
0 |
|
- |
U32D | Bulk | Active | 1.5 mF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.874" (22.20mm) | 2.000" Dia (50.80mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
MAL212366689CAP ALUM 68UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 25 V | 4.1Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 230 mA @ 100 Hz | - | 1 Ohms | - | 0.370" Dia x 0.917" L (9.40mm x 23.30mm) | - | - | Through Hole | |
|
|
MAL212366689E3CAP ALUM 68UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 25 V | 4.1Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 230 mA @ 100 Hz | - | 1 Ohms | - | 0.370" Dia x 0.917" L (9.40mm x 23.30mm) | - | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
