Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43544E9827M060CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43544 | Bulk | Active | 820 µF | ±20% | 400 V | 75mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.59 A @ 100 Hz | - | 110 mOhms | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
|
B43544E9827M067CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43544 | Bulk | Active | 820 µF | ±20% | 400 V | 75mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.59 A @ 100 Hz | - | 110 mOhms | 0.394" (10.00mm) | - | - | - | Through Hole | |
|
861021485026CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
WCAP-AIG5 | Tray | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.64 A @ 120 Hz | 2.2632 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.087" (53.00mm) | - | Through Hole | |
|
B43547A2228M000CAP ALUM 2200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43547 | Tray | Active | 2200 µF | ±20% | 200 V | 32mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.46 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
ALS70H391DB550CAP ALUM 390UF 20% 550V SCREW CH |
0 |
|
Datasheet |
ALS70 | Bulk | Active | 390 µF | ±20% | 550 V | 1.135Ohm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 4.8 A @ 10 kHz | 988 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS71A391DB550CAP ALUM 390UF 20% 550V SCREW CH |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 390 µF | ±20% | 550 V | 1.135Ohm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 4.8 A @ 10 kHz | 988 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
|
ALS71H391DB550CAP ALUM 390UF 20% 550V SCREW CH |
0 |
|
Datasheet |
ALS71 | Bulk | Active | 390 µF | ±20% | 550 V | 1.135Ohm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 100 Hz | 4.8 A @ 10 kHz | 988 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.520" (64.00mm) | - | Chassis Mount | |
|
B43544A5567M062CAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43544A5567M067CAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 560 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALS40A681DA200CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
ALS40 | Box | Active | 680 µF | ±20% | 200 V | 195mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 100 Hz | 4 A @ 10 kHz | 154 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
ALF70C751EH500CAP ALUM 750UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF70 | Bulk | Active | 750 µF | ±20% | 500 V | 278mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.65 A @ 100 Hz | 7.13 A @ 10 kHz | 199 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.441" (62.00mm) | - | Through Hole, Press-Fit | |
|
|
E91S401VNN821MB40UCAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
678D108M050FV3DCAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 50 V | 77mOhm @ 20Hz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.505 A @ 120 Hz | 2.15 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.693" (43.00mm) | - | Through Hole | |
|

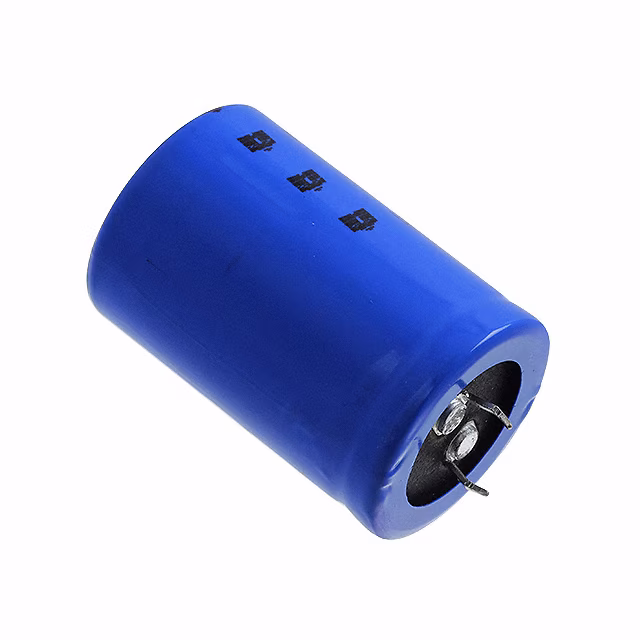

MAL215737271E3CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 270 µF | ±20% | 450 V | 770mOhm @ 100Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Audio | 1.95 A @ 120 Hz | - | 450 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215717271E3CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 270 µF | ±20% | 450 V | 770mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | - | 450 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL212324471CAP ALUM 470UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 10 V | 800mOhm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 570 mA @ 100 Hz | - | 300 mOhms | - | 0.406" Dia x 1.260" L (10.30mm x 32.00mm) | - | - | Through Hole | |
|
|
MAL212324471E3CAP ALUM 470UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 10 V | 800mOhm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 570 mA @ 100 Hz | - | 300 mOhms | - | 0.406" Dia x 1.260" L (10.30mm x 32.00mm) | - | - | Through Hole | |
|
|
LGC2H471MELENACAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
E91F401VSD102MB554CAP ALUM 1MF 20% 400V SNAP TH |
0 |
|
- |
U91F | Bulk | Active | 1 mF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.264" (57.50mm) | - | Through Hole | |
|
|
475MXT470MEFCSN30X40CAP ALUM 470UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXT | Bulk | Active | 470 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.646 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
