Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKYA160ELL682MLN3SCAP ALUM 6800UF 20% 16V RADIAL |
980 |
|
Datasheet |
KYA | Bulk | Active | 6800 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9325 A @ 120 Hz | 3.45 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
REF1235472M010BCAP ALUM 4.7MF 20% 10V RADIAL TH |
440 |
|
Datasheet |
REF | Bulk | Active | 4.7 mF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9325 A @ 120 Hz | 3.45 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EMHB250ARA272MLN0SCAP ALUM 2.7MF 20% 25V SMD |
250 |
|
Datasheet |
MHB | Bulk | Active | 2.7 mF | ±20% | 25 V | 34mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.71 A @ 120 Hz | 2.28 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
|
EKXN451ELL180MJ20SCAP ALUM 18UF 20% 450V RADIAL TH |
1,714 |
|
Datasheet |
KXN | Bulk | Active | 18 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 220 mA @ 120 Hz | 550 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
ELZA350ELL182ML20SCAP ALUM 1.8MF 20% 35V RADIAL TH |
1,000 |
|
Datasheet |
LZA | Bulk | Active | 1.8 mF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.398 A @ 120 Hz | 2.33 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
|
EKY-6R3ELL103MLP1SCAP ALUM 6.3V POLAR |
987 |
|
Datasheet |
KY | Bulk | Active | 10 mF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.0685 A @ 120 Hz | 3.61 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
UBT2E330MHD8CAP ALUM 33UF 20% 250V RADIAL TH |
896 |
|
Datasheet |
UBT | Bulk | Active | 33 µF | ±20% | 250 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 171 mA @ 120 Hz | 307.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKXJ221ELL151ML25SCAP ALUM 150UF 20% 220V RADIAL |
846 |
|
Datasheet |
KXJ | Bulk | Active | 150 µF | ±20% | 220 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 845 mA @ 120 Hz | 1.90125 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
ELXV250ELL392MM35SCAP ALUM 3900UF 20% 25V RADIAL |
746 |
|
Datasheet |
LXV | Bulk | Active | 3900 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.135 A @ 120 Hz | 3.05 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
UBT1K331MHD8CAP ALUM 330UF 20% 80V RADIAL TH |
590 |
|
Datasheet |
UBT | Bulk | Active | 330 µF | ±20% | 80 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 695 mA @ 120 Hz | 1.39 A @ 100 kHz | 160 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | - | Through Hole | |
|
EGPD500ELL132MK35HCAP ALUM 1300UF 20% 50V RADIAL |
583 |
|
Datasheet |
GPD | Bulk | Active | 1300 µF | ±20% | 50 V | 42mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.886 A @ 120 Hz | 4.81 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole | |
|
|
EMZA500ARA821MMH0SCAP ALUM 820UF 20% 50V SMD |
300 |
|
Datasheet |
MZA | Tape & Reel (TR) | Active | 820 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 852 mA @ 120 Hz | 1.42 A @ 100 kHz | 87 mOhms | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
16JXF10000MEFC18X30CAP ALUM 10000UF 20% 16V T/H |
200 |
|
Datasheet |
JXF | Bulk | Active | 10000 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

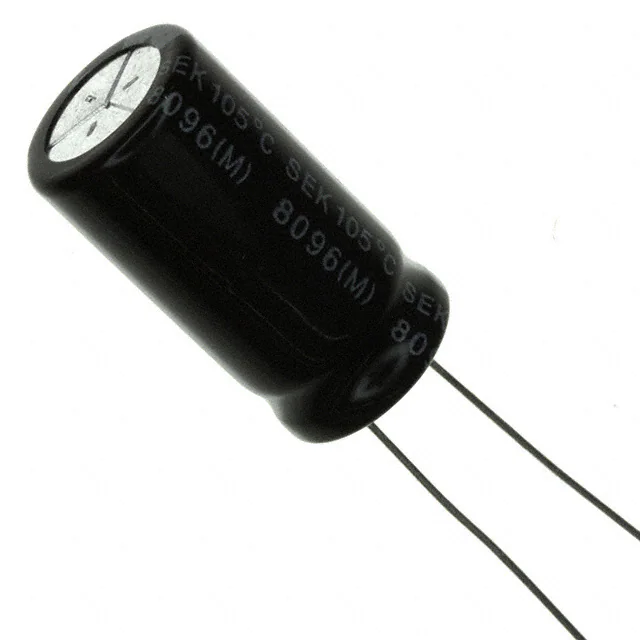

SEK220M400STCAP ALUM 22UF 20% 400V RADIAL TH |
9,076 |
|
Datasheet |
SEK | Bulk | Active | 22 µF | ±20% | 400 V | 12.06Ohm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.024" (26.00mm) | - | Through Hole | |
|
EGXF500ELL102MU25SCAP ALUM 1000UF 20% 50V RADIAL |
4,419 |
|
Datasheet |
GXF | Bulk | Active | 1000 µF | ±20% | 50 V | 31mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.488 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKXL421ELL470MJ45SCAP ALUM 47UF 20% 420V RADIAL TH |
2,000 |
|
Datasheet |
KXL | Bulk | Active | 47 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 1.15 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
EKHF421ELL390MJ30SCAP ALUM 39UF 20% 420V RADIAL TH |
2,000 |
|
Datasheet |
KHF | Bulk | Active | 39 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 365 mA @ 120 Hz | 657 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EKXN421ELL390MK20SCAP ALUM 39UF 20% 420V RADIAL TH |
2,000 |
|
Datasheet |
KXN | Bulk | Active | 39 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 950 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL215097812E3CAP ALUM 33UF 20% 63V SMD |
1,613 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 63 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 162 mA @ 100 Hz | - | 650 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount | |
|
|
EKXJ251ELL820MJ40SCAP ALUM 82UF 20% 250V RADIAL TH |
1,000 |
|
Datasheet |
KXJ | Bulk | Active | 82 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 495 mA @ 120 Hz | 1.2375 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.634" (41.50mm) | - | Through Hole |
