Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

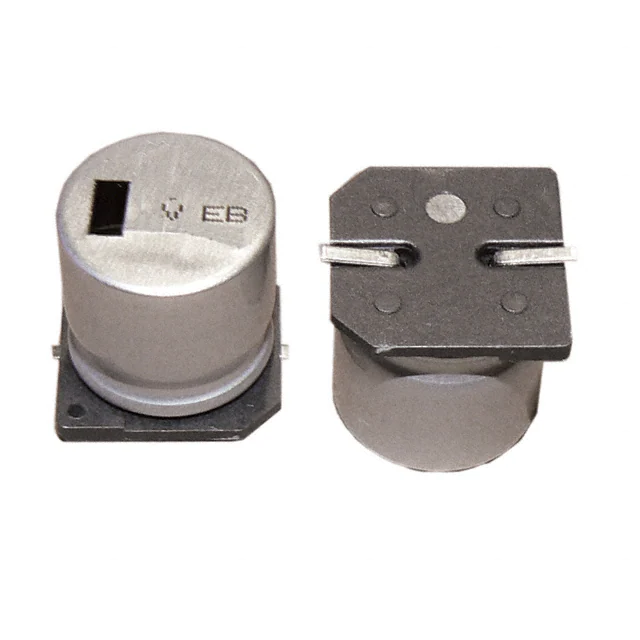

AEB107M2CS44T-FCAP ALUM 100UF 20% 160V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 583 mA @ 120 Hz | 1.06 A @ 100 kHz | 500 mOhms | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB107M2DS44T-FCAP ALUM 100UF 20% 200V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 583 mA @ 120 Hz | 1.06 A @ 100 kHz | 500 mOhms | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB226M2WS44T-FCAP ALUM 22UF 20% 450V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 560 mA @ 100 kHz | 1.8 Ohms | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB336M2GS44T-FCAP ALUM 33UF 20% 400V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 1.2 Ohms | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB476M2VS44T-FCAP ALUM 47UF 20% 350V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | 1 Ohms | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
AEB686M2ES44T-FCAP ALUM 68UF 20% 250V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 544.5 mA @ 120 Hz | 990 mA @ 100 kHz | 600 mOhms | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
420MXG330MEFCSN35X30CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.156 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
25MXC33000MEFCSN30X50CAP ALUM 33000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 33000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.325 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
510DX127M050CD5DCAP ALUM 120UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 120 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole | |
|
|
510DX187M050CG5DHSCAP ALUM 180UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 180 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
511D157M063DG5DCAP ALUM 150UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 150 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
672D277H025DM3CCAP ALUM 270UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 270 µF | - | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
|
672D477H012DM3DCAP ALUM 470UF 12V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 470 µF | - | 12 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
|
672D686H060DM4CCAP ALUM 68UF 60V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 68 µF | - | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.102" (28.00mm) | - | Through Hole | |
|
|
672D687F6R3DM4DCAP ALUM 680UF 6.3V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 680 µF | -10%, +50% | 6.3 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.102" (28.00mm) | - | Through Hole | |
|
|
672D826H050DM5CCAP ALUM 82UF 50V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 82 µF | - | 50 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
|
672D826H050DM5DCAP ALUM 82UF 50V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 82 µF | - | 50 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|
LGU1K562MELCCAP ALUM 5600UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 5600 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 4.4505 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC40A471CD250CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 470 µF | ±20% | 250 V | 302mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 100 Hz | 2.34 A @ 10 kHz | 212 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC40C102DD200CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 1 mF | ±20% | 200 V | 208mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 100 Hz | 2.69 A @ 10 kHz | 158 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
