Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
381LQ471M315J452CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 470 µF | ±20% | 315 V | 420mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.96 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLP471M315E7P3CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 470 µF | ±20% | 315 V | 706mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
160VXR270MEFC22X25CAP ALUM 270UF 20% 160V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 270 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.65 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
220USC820MEFC25X45CAP ALUM 820UF 20% 220V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 820 µF | ±20% | 220 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.91 A @ 120 Hz | 4.365 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
500VXG120MEFC30X30CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 120 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.456 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL213245222E3CAP ALUM 2200UF 16V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 2200 µF | -10%, +50% | 16 V | 110mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | - | - | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC40A123CB025CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 12 mF | ±20% | 25 V | 157mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 100 Hz | 2.33 A @ 10 kHz | 138 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC40A471CB200CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 470 µF | ±20% | 200 V | 369mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 100 Hz | 1.76 A @ 10 kHz | 270 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400MXG270MEFCSN25X40CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
400VXH330MEFCSN30X30CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43544B7157M060CAP ALUM SNAP |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
450MXG330MEFCSN35X35CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205768689E3CAP ALUM 68UF 20% 385V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 68 µF | ±20% | 385 V | 2.1Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 630 mA @ 100 Hz | - | 1 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

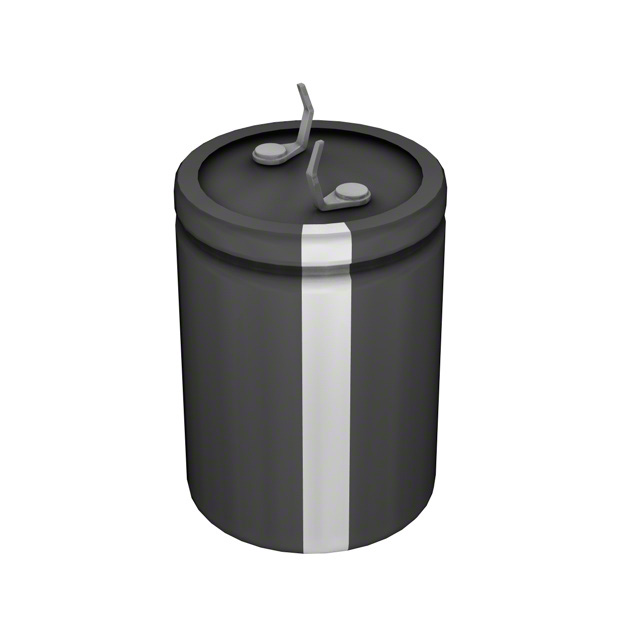

LP221M200A3P3CAP ALUM 220UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 220 µF | ±20% | 200 V | 1.13Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 660 mA @ 120 Hz | 924 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EKMS251VSN681MA25SCAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 680 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.19 A @ 120 Hz | 3.285 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
LLG2E102MELC30CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1000 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 120 Hz | 4.98 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1V103MESCBKCAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 10000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LKG1H682MESBBKCAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LKG1C183MESCBKCAP ALUM 18000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 18000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKG1C223MESBBKCAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 22000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
