Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLS2C222MELCCAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 2200 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.96 A @ 120 Hz | 7.44 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
MAL209353331E3CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 330 µF | ±20% | 250 V | 320mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | - | 200 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELG687M200AT1AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LSM472M2A---3545SCAP ALUM 100V POLAR |
0 |
|
- |
LSM | Active | 4.7 mF | ±20% | 100 V | 56mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 5.46 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
LSM182M2C---3045SCAP ALUM 160V POLAR |
0 |
|
- |
LSM | Active | 1.8 mF | ±20% | 160 V | 74mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.97 A @ 120 Hz | 4.158 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
LLG2D152MELB35CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.98 A @ 120 Hz | 4.47 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ471M315J042CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 470 µF | ±20% | 315 V | 420mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.27 A @ 120 Hz | 3.18 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

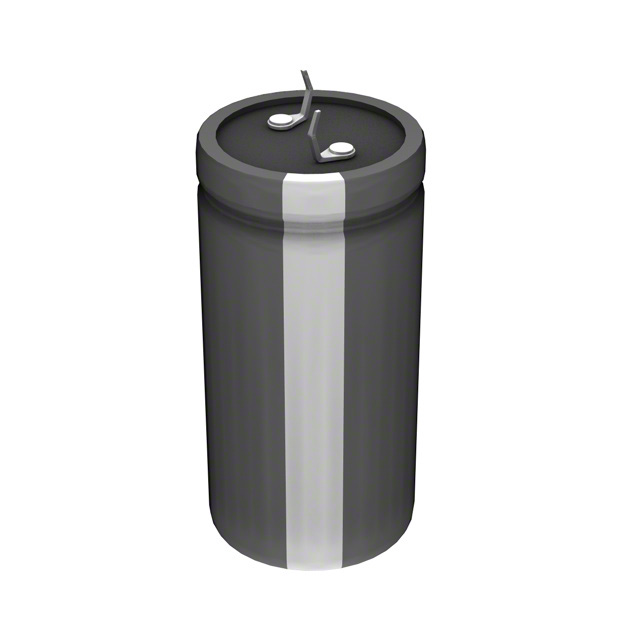

SLP272M100C9P3CAP ALUM 2700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 2700 µF | ±20% | 100 V | 98mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 120 Hz | 3.53 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
SLPX152M200H5P3CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1500 µF | ±20% | 200 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.85 A @ 120 Hz | 5.66 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
PEH534YCC3150M2SCAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 150 µF | ±20% | 450 V | 560mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 6.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.220" (31.00mm) | - | Through Hole | |
|
LKX2E471MESZ45CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 470 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.4 A @ 120 Hz | 2.1 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ESMQ6R3ELL473MP50SCAP ALUM 47000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 47000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
100MXC2200MEFC25X45CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 2.9325 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
10USC10000MEFC20X25CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 10000 µF | ±20% | 10 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 2.553 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
160USG1000MEFC30X25CAP ALUM 1000UF 20% 160V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1000 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
200MXC820KEFH25X45CAP ALUM 820UF 10% 200V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 820 µF | ±10% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
200USG1200MEFC35X30CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 5.25 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
250MXC270MEFC20X35CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 270 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.65 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
250USC560MEFC30X25CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.525 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
350VXS470MEFC30X40CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 470 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.982 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
