Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL224695475E3CAP ALUM 4700UF 20% 16V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 4700 µF | ±20% | 16 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 3 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
MAL224698685E3CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
- |
246 RTI-V | Box | Active | 680 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.1 A @ 100 Hz | 2.2 A @ 100 kHz | 36 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
PEH536MDB4220M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 2.2 mF | ±20% | 63 V | 86mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | 8.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
PEH532VCB3120M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 120 µF | ±20% | 400 V | 920mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 100 Hz | 1.9 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
30D476M040CB2ACAP ALUM 47UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
30D | Bulk | Active | 47 µF | ±20% | 40 V | 5.435Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 134 mA @ 120 Hz | 1.876 A @ 100 kHz | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
16MXC22000MEFCSN30X30CAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 22000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 3.864 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSG821M2D---3035SCAP ALUM 200V POLAR |
0 |
|
- |
LSG | Active | 820 µF | ±20% | 200 V | 243mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.775 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|

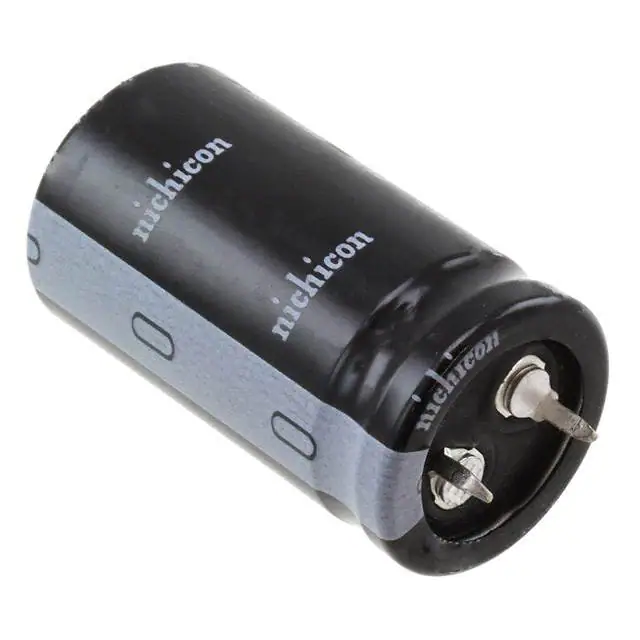

LLS2E561MELZCAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 560 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.48 A @ 120 Hz | 3.72 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
MAL224691125E3CAP ALUM 1200UF 20% 50V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 1200 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.275 A @ 100 Hz | 2.55 A @ 100 kHz | 27 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
LGNW6121MELY35CAP ALUM 120UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 120 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.1583 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL211924102E3CAP ALUM 1000UF 10V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 1000 µF | -10%, +50% | 10 V | 320mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 830 mA @ 100 Hz | - | 240 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
|
MAL211914102E3CAP ALUM 1000UF 10V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 1000 µF | -10%, +50% | 10 V | 320mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 830 mA @ 100 Hz | - | 240 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
|
ELH688M050AS3AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 6.8 mF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.85 A @ 120 Hz | 4.466 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSG561M2E---3035SCAP ALUM 250V POLAR |
0 |
|
- |
LSG | Active | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 2.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
UPS2D101MHDCAP ALUM 100UF 20% 200V RADIAL |
0 |
|
Datasheet |
UPS | Bulk | Obsolete | 100 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
SLP151M400C3P3CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 150 µF | ±20% | 400 V | 2.212Ohm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
381LQ221M315H032CAP ALUM 220UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 220 µF | ±20% | 315 V | 900mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.37 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
381LX101M420H022CAP ALUM 100UF 20% 420V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 100 µF | ±20% | 420 V | 1.82Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UPHW6101MHDCAP ALUM 100UF 20% 420V RADIAL |
0 |
|
Datasheet |
UPH | Bulk | Active | 100 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.035 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
LSG122M2C---2550SCAP ALUM 160V POLAR |
0 |
|
- |
LSG | Active | 1.2 mF | ±20% | 160 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.45 A @ 120 Hz | 3.675 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
