Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVZ1E471MPD1AACAP ALUM 25V POLAR |
1,399 |
|
Datasheet |
UVZ | Bulk | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 570 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EKZN160ELL821MH20DCAP ALUM 820UF 20% 16V RADIAL TH |
10,871 |
|
Datasheet |
KZN | Bulk | Active | 820 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.176 A @ 120 Hz | 1.96 A @ 100 kHz | 41 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
AVEZ107M25X16T-FCAP ALUM 100UF 20% 25V SMD |
7,400 |
|
Datasheet |
AVEZ | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | 500mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 204 mA @ 120 Hz | 255 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
ESX477M025AH2EACAP ALUM RAD 105C |
6,950 |
|
Datasheet |
ESX | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | 165mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 531 mA @ 120 Hz | 590 mA @ 100 kHz | 165 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
EMZJ160ARA151MF80GCAP ALUM 150UF 20% 16V SMD |
5,135 |
|
Datasheet |
Alchip™- MZJ | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 240 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
25TPV220M6.3X8CAP ALUM 25V POLAR |
5,118 |
|
Datasheet |
TPV | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | 160mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EGXF500ELL161MJC5SCAP ALUM 160UF 20% 50V RADIAL TH |
3,945 |
|
Datasheet |
GXF | Bulk | Active | 160 µF | ±20% | 50 V | 240mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 292 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ELZA350ELL331MJC5SCAP ALUM 330UF 20% 35V RADIAL TH |
3,918 |
|
Datasheet |
LZA | Bulk | Active | 330 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 480 mA @ 120 Hz | 960 mA @ 100 kHz | 63 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UFW1C471MPD1TACAP ALUM 470UF 20% 16V RADIAL TH |
2,949 |
|
Datasheet |
UFW | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | - | - | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
AHA106M25C12T-FCAP ALUM 10UF 20% 25V SMD |
2,000 |
|
Datasheet |
AHA | Tape & Reel (TR) | Not For New Designs | 10 µF | ±20% | 25 V | 23.2Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

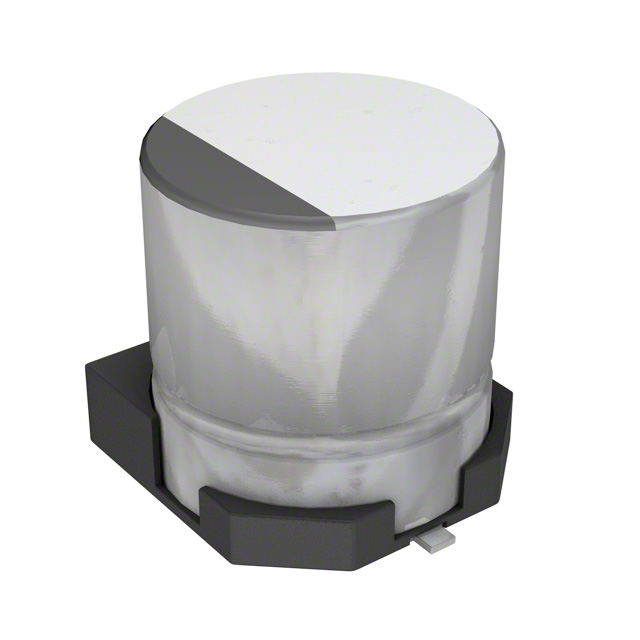

AVS106M50C12T-FCAP ALUM 10UF 20% 50V SMD |
2,000 |
|
Datasheet |
AVS | Tape & Reel (TR) | Not For New Designs | 10 µF | ±20% | 50 V | 23.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 27 mA @ 120 Hz | 45.9 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UHD1C122MPD1TDCAP ALUM 1200UF 20% 16V RADIAL |
2,000 |
|
Datasheet |
UHD | Cut Tape (CT) | Not For New Designs | 1200 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.15 A @ 100 kHz | 22 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UHD1H121MPD1TACAP ALUM 120UF 20% 50V RADIAL TH |
2,000 |
|
Datasheet |
UHD | Cut Tape (CT) | Not For New Designs | 120 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 665 mA @ 120 Hz | 950 mA @ 100 kHz | 61 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UHE1C331MPD1TACAP ALUM 330UF 20% 16V RADIAL TH |
2,000 |
|
Datasheet |
UHE | Cut Tape (CT) | Active | 330 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 448 mA @ 120 Hz | - | 130 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UHV1A681MPD1TACAP ALUM 680UF 20% 10V RADIAL TH |
2,000 |
|
Datasheet |
UHV | Cut Tape (CT) | Not For New Designs | 680 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 594 mA @ 120 Hz | 990 mA @ 100 kHz | 59 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPJ1C471MPD1TACAP ALUM 470UF 20% 16V RADIAL TH |
2,000 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 615 mA @ 120 Hz | 770 mA @ 10 kHz | 140 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.827" (21.00mm) | - | Through Hole | |
|
UVY0J102MPD1TACAP ALUM 1000UF 20% 6.3V RADIAL |
2,000 |
|
Datasheet |
UVY | Cut Tape (CT) | Active | 1000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 390 mA @ 120 Hz | 448.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPJ1C561MPD1TDCAP ALUM 560UF 20% 16V RADIAL TH |
1,991 |
|
Datasheet |
UPJ | Cut Tape (CT) | Active | 560 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 950 mA @ 10 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UKL1E151MPDANATDCAP ALUM 150UF 20% 25V RADIAL TH |
1,500 |
|
Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 150 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 555 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
337CKS035MCAP ALUM 330UF 20% 35V RADIAL TH |
23,987 |
|
Datasheet |
CKS | Bulk | Active | 330 µF | ±20% | 35 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Bypass, Decoupling | 580 mA @ 120 Hz | 957 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
