Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH506MBC4220M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 2.2 mF | ±20% | 63 V | 93mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 100 Hz | 7 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH506MAD4220M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 2.2 mF | ±20% | 63 V | 87mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 7.7 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
80ZLJ1000MGC18X35.5CAP ALUM 1000UF 20% 80V RADIAL |
0 |
|
Datasheet |
ZLJ | Tape & Box (TB) | Active | 1000 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.106 A @ 120 Hz | - | 27 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
PL2S151MND2240CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
PL | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 1.058 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
MAL204217688E3CAP ALUM 6.8UF 450V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 6.8 µF | -10%, +50% | 450 V | 22Ohm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 110 mA @ 100 Hz | - | 14 Ohms | - | 0.394" Dia x 1.181" L (10.00mm x 30.00mm) | - | - | Through Hole | |
|
|
MAL204227688E3CAP ALUM 6.8UF 450V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 6.8 µF | -10%, +50% | 450 V | 22Ohm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 110 mA @ 100 Hz | - | 14 Ohms | - | 0.394" Dia x 1.181" L (10.00mm x 30.00mm) | - | - | Through Hole | |
|
B43642A5826M000CAP ALUM 82UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 82 µF | ±20% | 450 V | 1Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 590 mA @ 100 Hz | - | 1.5 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

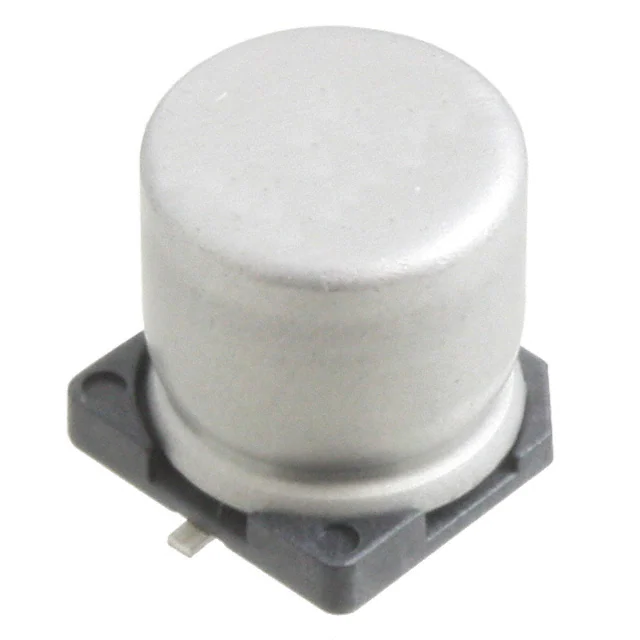

MAL215099301E3CAP ALUM 1000UF 20% 6.3V SMD |
0 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 670 mA @ 100 kHz | 130 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | |
|
|
MAL215099601E3CAP ALUM 330UF 20% 25V SMD |
0 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 2500 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 640 mA @ 100 kHz | 140 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | |
|
UPX1V331MHD1TNCAP ALUM 330UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
UPX | Cut Tape (CT) | Obsolete | 330 µF | ±20% | 35 V | - | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.008 A @ 120 Hz | 1.344 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
URZ0J103MHD1TNCAP ALUM 10000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 10000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.6675 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LGG2D471MELZ35CAPACITOR |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
450VXR56MEFCSN25X25CAP ALUM 56UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 56 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXM251VSN221MP30SCAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 220 µF | ±20% | 250 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.425 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX101M400H022CAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 100 µF | ±20% | 400 V | 1.65Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
381LX101M350H022CAP ALUM 100UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 100 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLPX121M450C3P3CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 120 µF | ±20% | 450 V | 2.212Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
SLP121M400A5P3CAP ALUM 120UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 120 µF | ±20% | 400 V | 2.765Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
SLP181M350C3P3CAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 350 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.35 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL214266682E3CAP ALUM 6800UF 20% 25V RADIAL |
0 |
|
Datasheet |
142 RHS | Bulk | Active | 6800 µF | ±20% | 25 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.16 A @ 100 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
