Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
476TMA250MCAP ALUM 47UF 20% 250V AXIAL TH |
0 |
|
Datasheet |
TMA | Bulk | Active | 47 µF | ±20% | 250 V | 7.055Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 50 kHz | - | - | 0.630" Dia x 1.220" L (16.00mm x 31.00mm) | - | - | Through Hole | |
|
ELH567M200AQ4AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EGPD630ELL132MM25HCAP ALUM 1300UF 20% 63V RADIAL |
0 |
|
Datasheet |
GPD | Bulk | Active | 1300 µF | ±20% | 63 V | 33mOhm @ 100kHz | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.848 A @ 120 Hz | 3.08 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
MAL204218109E3CAP ALUM 10UF 385V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 10 µF | -10%, +50% | 385 V | 15Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 150 mA @ 100 Hz | - | 10 Ohms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
|
MAL204228109E3CAP ALUM 10UF 385V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 10 µF | -10%, +50% | 385 V | 15Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 150 mA @ 100 Hz | - | 10 Ohms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
|
ELD127M400AQ4AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 120 µF | ±20% | 400 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.246 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

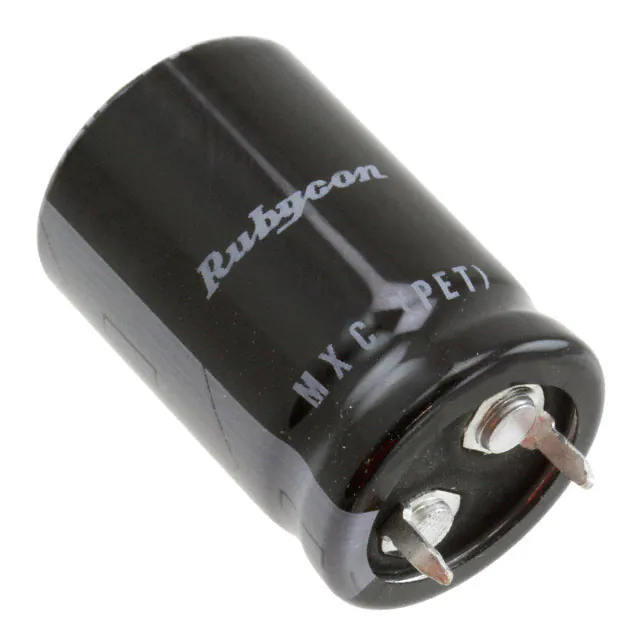

250MXC220MEFCSN20X30CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 220 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.5 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSM121M2G---2235SCAP ALUM 400V POLAR |
0 |
|
- |
LSM | Active | 120 µF | ±20% | 400 V | 1.659Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.092 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
MAL213228689E3CAP ALUM 68UF 63V AXIAL TH |
0 |
|
Datasheet |
132 ALL-DIN | Tape & Reel (TR) | Active | 68 µF | -10%, +50% | 63 V | 1.6Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 100 Hz | - | 600 mOhms | - | 0.394" Dia x 1.181" L (10.00mm x 30.00mm) | - | - | Through Hole | |
|
MAL215030152E3CAP ALUM 1500UF 20% 35V RADIAL |
0 |
|
Datasheet |
150 RMI | Tape & Box (TB) | Active | 1500 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.398 A @ 100 Hz | - | 28 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
MAL215035332E3CAP ALUM 3300UF 20% 16V RADIAL |
0 |
|
Datasheet |
150 RMI | Tape & Box (TB) | Active | 3300 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.398 A @ 100 Hz | - | 28 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
MAL215036222E3CAP ALUM 2200UF 20% 25V RADIAL |
0 |
|
Datasheet |
150 RMI | Tape & Box (TB) | Active | 2200 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.398 A @ 100 Hz | - | 28 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
MAL215038681E3CAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
150 RMI | Tape & Box (TB) | Active | 680 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 836 mA @ 100 Hz | - | 74 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
MAL215090103E3CAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
150 RMI | Bulk | Active | 1000 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.398 A @ 100 Hz | - | 28 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
MAL215098473E3CAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
150 RMI | Tape & Box (TB) | Active | 470 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 836 mA @ 100 Hz | - | 74 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
35YXG1200MEFC12.5X30CAP ALUM 1200UF 20% 35V RADIAL |
0 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 1200 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
35YXG1200MEFCG412.5X30CAP ALUM 1200UF 20% 35V RADIAL |
0 |
|
Datasheet |
YXG | Cut Tape (CT) | Not For New Designs | 1200 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EEE-FPJ182UAVCAP ALUM 1800UF 20% 6.3V SMD |
0 |
|
Datasheet |
FP, Anti-Vibration | Tape & Reel (TR) | Active | 1800 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
LLS2C561MELZCAP ALUM 560UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 560 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.225 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EGPA800ELL681MM30SCAP ALUM 680UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
GPA | Bulk | Active | 680 µF | ±20% | 80 V | 41mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.548 A @ 120 Hz | 2.58 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
