Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC1H821BCAP ALUM 820UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
FC | Tape & Box (TB) | Active | 820 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.815 A @ 120 Hz | 2.42 A @ 100 kHz | 42 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FC1J681SBCAP ALUM 680UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
FC | Tape & Box (TB) | Active | 680 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.718 A @ 120 Hz | 2.29 A @ 100 kHz | 55 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
URS1C472MHDCAP ALUM 4700UF 20% 16V RADIAL |
0 |
|
Datasheet |
URS | Bulk | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.0355 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
ESMQ201ELL101ML25SCAP ALUM 100UF 20% 200V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 100 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 475 mA @ 120 Hz | 712.5 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKZE800ELL681MM25SCAP ALUM 680UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
KZE | Bulk | Active | 680 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.75 A @ 100 kHz | 36 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
MAL214097101E3CAP ALUM 68UF 20% 50V SMD |
0 |
|
Datasheet |
140 CRH | Bulk | Active | 68 µF | ±20% | 50 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 123 mA @ 100 Hz | - | 500 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.413" L x 0.413" W (10.50mm x 10.50mm) | Surface Mount | |
|
MAL214097301E3CAP ALUM 470UF 20% 6.3V SMD |
0 |
|
Datasheet |
140 CRH | Bulk | Active | 470 µF | ±20% | 6.3 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 210 mA @ 100 Hz | - | 250 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.413" L x 0.413" W (10.50mm x 10.50mm) | Surface Mount | |
|
|
MAL214097401E3CAP ALUM 330UF 20% 10V SMD |
0 |
|
Datasheet |
140 CRH | Bulk | Active | 330 µF | ±20% | 10 V | - | 1500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 210 mA @ 100 Hz | - | 250 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.413" L x 0.413" W (10.50mm x 10.50mm) | Surface Mount | |
|
|
UBY1E302MHLCAP ALUM 3000UF 20% 25V RADIAL |
0 |
|
Datasheet |
UBY | Bulk | Active | 3000 µF | ±20% | 25 V | 33mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.61 A @ 120 Hz | 3.48 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
B41858C7228M002CAP ALUM 2200UF 20% 35V RADIAL |
0 |
|
Datasheet |
B41858 | Bulk | Active | 2200 µF | ±20% | 35 V | 27mOhm @ 10kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 2.941 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EEU-EE2C151SBCAP ALUM 150UF 20% 160V RADIAL |
0 |
|
Datasheet |
EE-A | Tape & Box (TB) | Active | 150 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 728 mA @ 120 Hz | 1.82 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2E820SBCAP ALUM 82UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
EE-A | Tape & Box (TB) | Active | 82 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 588 mA @ 120 Hz | 1.68 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPX1E471MHDCAP ALUM 470UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
UPX | Bulk | Not For New Designs | 470 µF | ±20% | 25 V | - | 20000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.008 A @ 120 Hz | 1.344 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEU-ED2C151SBCAP ALUM 150UF 20% 160V RADIAL |
0 |
|
Datasheet |
ED-A | Tape & Box (TB) | Active | 150 µF | ±20% | 160 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-ED2E820SBCAP ALUM 82UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
ED-A | Tape & Box (TB) | Active | 82 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

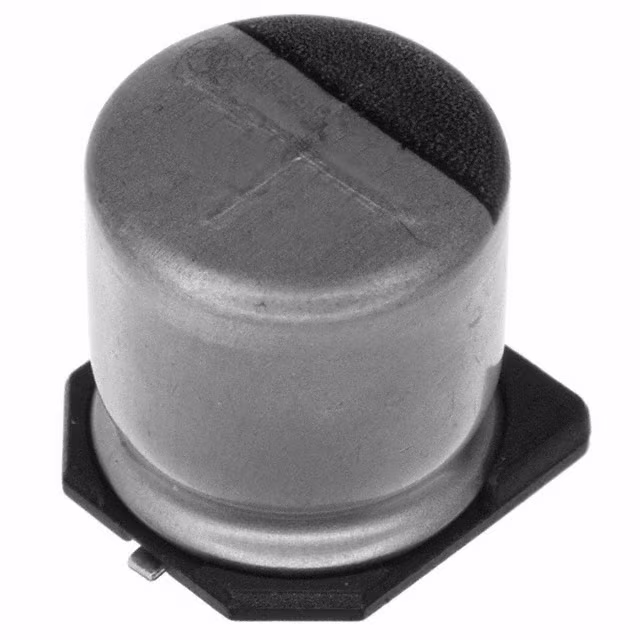

AVRF108M10G24T-FCAP ALUM 1000UF 20% 10V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 1000 µF | ±20% | 10 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

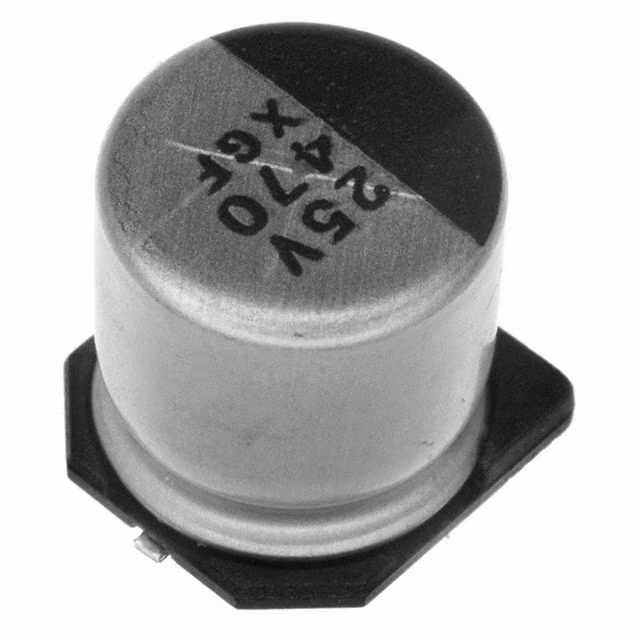

AVRF477M25G24T-FCAP ALUM 470UF 20% 25V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 25 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
AVRF337M35G24T-FCAP ALUM 330UF 20% 35V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 35 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
25YXH1000MEFCG412.5X20CAP ALUM 1000UF 20% 25V RADIAL |
0 |
|
Datasheet |
YXH | Cut Tape (CT) | Last Time Buy | 1000 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.9 A @ 100 kHz | 35 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
35TZV100M10X10.5CAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
TZV | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
