Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35YXH1800MEFC12.5X40CAP ALUM 1800UF 20% 35V RADIAL |
0 |
|
Datasheet |
YXH | Bulk | Last Time Buy | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 3.35 A @ 100 kHz | 17 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
35YXH1800MEFCG412.5X40CAP ALUM 1800UF 20% 35V RADIAL |
0 |
|
Datasheet |
YXH | Tape & Box (TB) | Last Time Buy | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 3.35 A @ 100 kHz | 17 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
109CKS6R3MCAP ALUM 10000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
CKS | Bulk | Active | 10000 µF | ±20% | 6.3 V | 69.6mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Bypass, Decoupling | 2.76 A @ 120 Hz | 3.864 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UHE0J682MHD3CAP ALUM 6800UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UHE | Bulk | Active | 6800 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.288 A @ 120 Hz | 2.86 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
MAL215232339E3CAP ALUM 33UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
152 RMH | Tape & Box (TB) | Active | 33 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 100 Hz | - | 2.3 Ohms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
MAL203123471E3CAP ALUM 470UF 6.3V AXIAL TH |
0 |
|
Datasheet |
031 AS | Tape & Box (TB) | Active | 470 µF | -10%, +50% | 6.3 V | 850mOhm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 330 mA @ 100 Hz | - | 430 mOhms | - | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) | - | - | Through Hole | |
|
MAL203124331E3CAP ALUM 330UF 10V AXIAL TH |
0 |
|
Datasheet |
031 AS | Tape & Box (TB) | Active | 330 µF | -10%, +50% | 10 V | 970mOhm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 310 mA @ 100 Hz | - | 480 mOhms | - | 0.256" Dia x 0.709" L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
|
MAL203125221E3CAP ALUM 220UF 16V AXIAL TH |
0 |
|
Datasheet |
031 AS | Tape & Box (TB) | Active | 220 µF | -10%, +50% | 16 V | 1.16Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 100 Hz | - | 550 mOhms | - | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) | - | - | Through Hole | |
|
|
MAL203126151E3CAP ALUM 150UF 25V AXIAL TH |
0 |
|
Datasheet |
031 AS | Tape & Box (TB) | Active | 150 µF | -10%, +50% | 25 V | 1.49Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 240 mA @ 100 Hz | - | 600 mOhms | - | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) | - | - | Through Hole | |
|
|
MAL203128479E3CAP ALUM 47UF 63V AXIAL TH |
0 |
|
Datasheet |
031 AS | Tape & Box (TB) | Active | 47 µF | -10%, +50% | 63 V | 2.71Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 190 mA @ 100 Hz | - | 1.2 Ohms | - | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) | - | - | Through Hole | |
|
|
MAL203129229E3CAP ALUM 22UF 100V AXIAL TH |
0 |
|
Datasheet |
031 AS | Tape & Box (TB) | Active | 22 µF | -10%, +50% | 100 V | 5.07Ohm @ 100Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 120 mA @ 100 Hz | - | 2.1 Ohms | - | 0.315" Dia x 0.709" L (8.00mm x 18.00mm) | - | - | Through Hole | |
|
ESW159M010AN3AACAP ALUM RAD 105C |
0 |
|
Datasheet |
ESW | Bulk | Active | 15 mF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.638 A @ 120 Hz | 4.28 A @ 100 kHz | 12 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
UHE1E272MHD6CCCAP ALUM 25V POLAR |
0 |
|
- |
UHE | Bulk | Active | 2.7 mF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.344 A @ 120 Hz | 2.93 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215370221E3CAP ALUM 220UF 20% 35V SMD |
0 |
|
Datasheet |
153 CRV | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 35 V | 290mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | - | 337.5 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Surface Mount | |
|
|
EEU-EE2W220SECAP ALUM 22UF 20% 450V RADIAL TH |
0 |
|
- |
EE-A | Bulk | Active | 22 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330.75 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ESC109M6R3AM3AACAP ALUM RAD 105C |
0 |
|
Datasheet |
ESC | Bulk | Active | 10 mF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.295 A @ 120 Hz | 2.55 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
RLD330M2GBK-1040SCAP ALUM 400V POLAR |
0 |
|
- |
RLD | Active | 33 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 775 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
35TXW1200MEFC10X40CAP ALUM 1200UF 20% 35V RADIAL |
0 |
|
Datasheet |
TXW | Bulk | Active | 1200 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 3.12 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

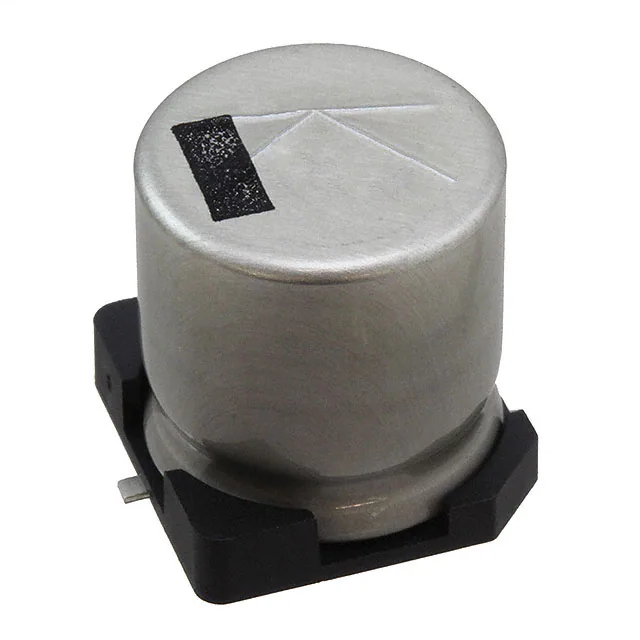

6.3SGV1000M12.5X13.5CAP ALUM 1000UF 20% 6.3V SMD |
0 |
|
Datasheet |
SGV | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 495 mA @ 120 Hz | 594 mA @ 10 kHz | - | - | 0.492" Dia (12.50mm) | 0.591" (15.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount | |
|
|
EMVA500GDA221MJA0GCAP ALUM 220UF 20% 50V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
