Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV-HD1H3R3RCAP ALUM 3.3UF 20% 50V SMD |
0 |
|
Datasheet |
HD | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | 12 Ohms | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEV-FK0J331XPCAP ALUM 330UF 20% 6.3V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1A221XPCAP ALUM 220UF 20% 10V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1C151XPCAP ALUM 150UF 20% 16V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 150 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1C221XPCAP ALUM 220UF 20% 16V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1E101XPCAP ALUM 100UF 20% 25V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1V680XPCAP ALUM 68UF 20% 35V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1V101XPCAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1H330XPCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 195 mA @ 100 kHz | 680 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FK1H470XPCAP ALUM 47UF 20% 50V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 195 mA @ 100 kHz | 680 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EMVK100ADA221MHA0GCAP ALUM 220UF 20% 10V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EMVK500ADA330MHA0GCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UZR1E4R7MCL1GBCAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
UZR | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 16 mA @ 120 Hz | 24 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UKT1H470MEDCAP ALUM 47UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UKT | Bulk | Obsolete | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 115 mA @ 120 Hz | 230 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
UUR1H101MNL6GSCAP ALUM 100UF 20% 50V SMD |
0 |
|
Datasheet |
UUR | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 181 mA @ 120 Hz | 235.3 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

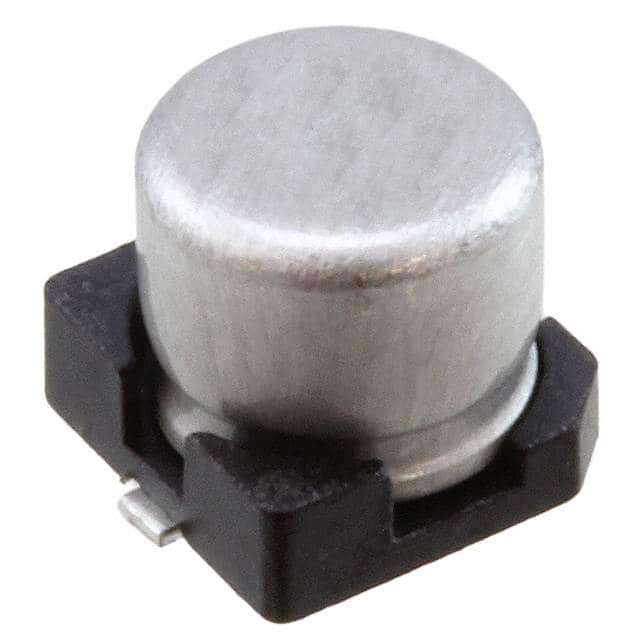

UZE1A100MCL1GBCAP ALUM 10UF 20% 10V SMD |
0 |
|
Datasheet |
UZE | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 17 mA @ 120 Hz | 25.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UZR0G470MCL1GBCAP ALUM 47UF 20% 4V SMD |
0 |
|
Datasheet |
UZR | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 33 mA @ 120 Hz | 49.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UZR0J220MCL1GBCAP ALUM 22UF 20% 6.3V SMD |
0 |
|
Datasheet |
UZR | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 28 mA @ 120 Hz | 42 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UZR1H3R3MCL1GBCAP ALUM 3.3UF 20% 50V SMD |
0 |
|
Datasheet |
UZR | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 17 mA @ 120 Hz | 25.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UZS0G330MCL1GBCAP ALUM 33UF 20% 4V SMD |
0 |
|
Datasheet |
UZS | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 4 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 28 mA @ 120 Hz | 42 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.181" (4.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
