Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450BXC15MEFCU312.5X25CAP ALUM 15UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
BXC | Bulk | Active | 15 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
50WXA680MEFC16X16CAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
WXA | Bulk | Active | 680 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 710 mA @ 120 Hz | 852 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
50WXA680MEFCGC16X16CAP ALUM 680UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
WXA | Tape & Box (TB) | Active | 680 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 710 mA @ 120 Hz | 852 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPM1J271MHD6CAP ALUM 270UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 270 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 965 mA @ 120 Hz | 1.29 A @ 10 kHz | 60 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
16YXG2700MEFC12.5X30CAP ALUM 2700UF 20% 16V RADIAL |
0 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 2700 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.855 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
16YXG2700MEFCG412.5X30CAP ALUM 2700UF 20% 16V RADIAL |
0 |
|
Datasheet |
YXG | Tape & Box (TB) | Not For New Designs | 2700 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.855 A @ 120 Hz | 2.65 A @ 100 kHz | 24 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
REA1321220M350BCAP ALUM 350V POLAR |
0 |
|
Datasheet |
REA | Bulk | Active | 22 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 162 mA @ 120 Hz | 226.8 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
156KFM450MTJGELECTROLYTIC/IC |
0 |
|
Datasheet |
KFM | Bulk | Active | 15 µF | ±20% | 450 V | 22.1049Ohm @ 120Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 400 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
228BPS016MELECTROLYTIC/IC |
0 |
|
Datasheet |
BPS | Bulk | Active | 2.2 mF | ±20% | 16 V | 196mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | 1.51 A @ 120 Hz | 2.1895 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UPS2D4R7MPD1TDCAP ALUM 4.7UF 20% 200V RADIAL |
12 |
|
Datasheet |
UPS | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UZS0J470MCL1GBCAP ALUM 47UF 20% 6.3V SMD |
9 |
|
Datasheet |
UZS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | 45 mA @ 120 Hz | 67.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.181" (4.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EKZE6R3ELL331MF11DCAP ALUM 330UF 20% 6.3V RADIAL |
2 |
|
Datasheet |
KZE | Bulk | Obsolete | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 202.5 mA @ 120 Hz | 405 mA @ 100 kHz | 130 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole | |
|
ECE-V1AA470SPCAP ALUM 47UF 20% 10V SMD |
0 |
|
- |
VS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

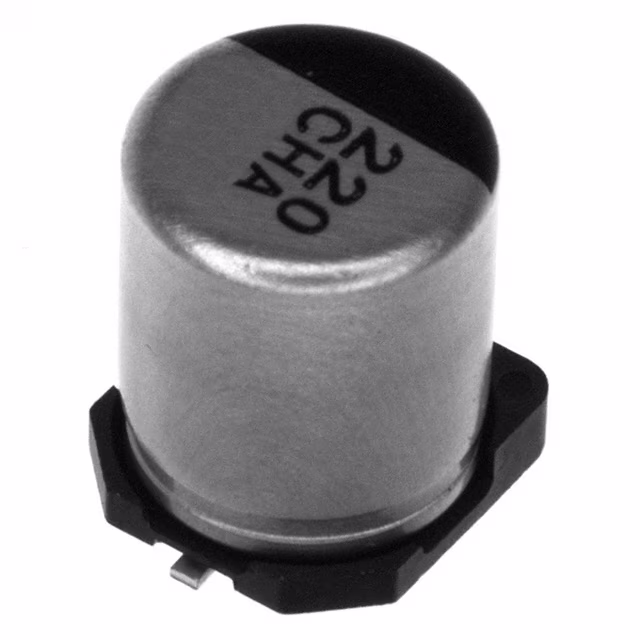

EEV-HA1C221XPCAP ALUM 220UF 20% 16V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEV-HA1V101XPCAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 84 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-HA1H330XPCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 60 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-HA1H470XPCAP ALUM 47UF 20% 50V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 63 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEE-1HAR33NRCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
S | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | AEC-Q200 | Automotive | 3 mA @ 120 Hz | 5.1 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UWF1E100MCL1GBCAP ALUM 10UF 20% 25V SMD |
0 |
|
Datasheet |
UWF | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 40 mA @ 120 Hz | 80 mA @ 100 kHz | 2.6 Ohms | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UWF1E150MCL1GBCAP ALUM 15UF 20% 25V SMD |
0 |
|
Datasheet |
UWF | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 57.5 mA @ 120 Hz | 115 mA @ 100 kHz | 1.3 Ohms | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
