Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMME1002G8R2MFLMM/400/8.2/10/9/ |
50 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
UPW1J390MEDCAP ALUM 39UF 20% 63V RADIAL TH |
11 |
|
Datasheet |
UPW | Bulk | Obsolete | 39 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 99 mA @ 120 Hz | 330 mA @ 100 kHz | 700 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.591" (15.00mm) | - | Through Hole | |
|
|
UPW1J390MED1TDCAP ALUM 39UF 20% 63V RADIAL TH |
11 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 39 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 99 mA @ 120 Hz | 330 mA @ 100 kHz | 700 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UWF1V010MCL1GBCAP ALUM 1UF 20% 35V SMD |
10 |
|
Datasheet |
UWF | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 25 mA @ 120 Hz | 50 mA @ 100 kHz | 5 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
PW2E220MCE1212F3CAP ALUM 22UF 20% 250V RADIAL TH |
10 |
|
Datasheet |
PW | Bulk | Active | 22 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 600 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
UPW1H560MEDCAP ALUM 56UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UPW | Bulk | Obsolete | 56 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 108 mA @ 120 Hz | 360 mA @ 100 kHz | 400 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.591" (15.00mm) | - | Through Hole | |
|
EKMG100ELL471MHB5DCAP ALUM 470UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 375 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EMVA100ADA151MF55GCAP ALUM 150UF 20% 10V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 150 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 79 mA @ 120 Hz | 85.32 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EMVH160ARA470MF60GCAP ALUM 47UF 20% 16V SMD |
0 |
|
Datasheet |
Alchip™- MVH | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | 1.6Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 64.17 mA @ 120 Hz | 69 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EMVH250ARA330MF60GCAP ALUM 33UF 20% 25V SMD |
0 |
|
Datasheet |
Alchip™- MVH | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 25 V | 1.6Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 64.17 mA @ 120 Hz | 69 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

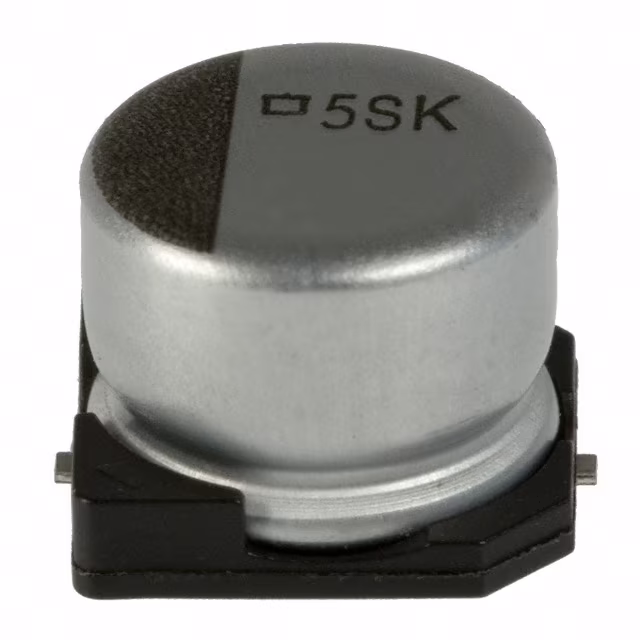

EMVK350ADA330MH63GCAP ALUM 33UF 20% 35V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.248" (6.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEE-FC0J680APCAP ALUM 68UF 20% 6.3V SMD |
0 |
|
Datasheet |
FC | Tape & Reel (TR) | Not For New Designs | 68 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 105 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEE-1HA330XAPCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
S | Tape & Reel (TR) | Not For New Designs | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
AVRF336M10B12T-FCAP ALUM 33UF 20% 10V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 10 V | 1.65Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 70 mA @ 100 kHz | 1.65 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AVRF226M16B12T-FCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 16 V | 1.65Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 70 mA @ 100 kHz | 1.65 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AVRF106M25B12T-FCAP ALUM 10UF 20% 25V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 25 V | 1.65Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 70 mA @ 100 kHz | 1.65 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
AVRF106M35C12T-FCAP ALUM 10UF 20% 35V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 35 V | 900mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 100 mA @ 100 kHz | 900 mOhms | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UWF0J220MCL1GBCAP ALUM 22UF 20% 6.3V SMD |
0 |
|
Datasheet |
UWF | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 25 mA @ 120 Hz | 50 mA @ 100 kHz | 5 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWF1E4R7MCL1GBCAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
UWF | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 25 mA @ 120 Hz | 50 mA @ 100 kHz | 5 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
UWF1V3R3MCL1GBCAP ALUM 3.3UF 20% 35V SMD |
0 |
|
Datasheet |
UWF | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | General Purpose | 25 mA @ 120 Hz | 50 mA @ 100 kHz | 5 Ohms | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
