Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
476BPA016MCAP ALUM 47UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
BPA | Bulk | Active | 47 µF | ±20% | 16 V | 7.76Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | 110 mA @ 120 Hz | 172.7 mA @ 50 kHz | - | - | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - | - | Through Hole | |
|
16ZLG2200MEFCG412.5X25CAP ALUM 2200UF 20% 16V RADIAL |
0 |
|
Datasheet |
ZLG | Tape & Box (TB) | Active | 2200 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9 A @ 100 kHz | 12 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-EE2V220BCAP ALUM 22UF 20% 350V RADIAL TH |
0 |
|
Datasheet |
EE-A | Tape & Box (TB) | Active | 22 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 231 mA @ 120 Hz | 660 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2W100BCAP ALUM 10UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
EE-A | Tape & Box (TB) | Active | 10 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 330 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EE2G150BCAP ALUM 15UF 20% 400V RADIAL TH |
0 |
|
Datasheet |
EE-A | Tape & Box (TB) | Active | 15 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 590 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|

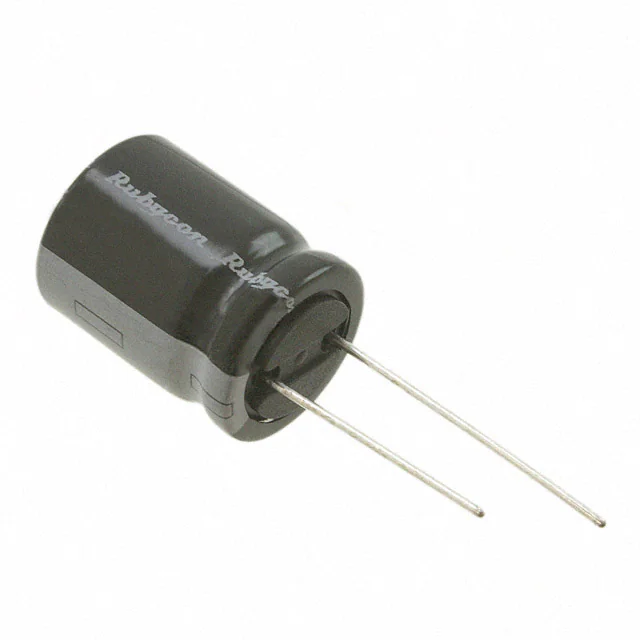

50WA1000MEFCGC16X20CAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
WA | Tape & Box (TB) | Obsolete | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.26 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UPW1V681MPD6CACAP ALUM 35V POLAR |
0 |
|
- |
UPW | Cut Tape (CT) | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.3613 A @ 120 Hz | 1.815 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
|
UPW1V681MHD1TDCAP ALUM 35V POLAR |
0 |
|
- |
UPW | Tape & Box (TB) | Active | 680 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.245 A @ 120 Hz | 1.66 A @ 10 kHz | 38 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EB2E220BCAP ALUM 22UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
EB-A | Tape & Box (TB) | Active | 22 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 308 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEU-EB2E330BCAP ALUM 33UF 20% 250V RADIAL TH |
0 |
|
Datasheet |
EB-A | Tape & Box (TB) | Active | 33 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 308 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
RLD270M2GBK-1035SCAP ALUM 400V POLAR |
0 |
|
- |
RLD | Active | 27 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 675 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
|
AFC107M16E16T-FCAP ALUM 100UF 20% 16V SMD |
0 |
|
Datasheet |
AFC | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 16 V | 2.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
AFC227M06E16T-FCAP ALUM 220UF 20% 6.3V SMD |
0 |
|
Datasheet |
AFC | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 6.3 V | 2Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
AFC476M35E16T-FCAP ALUM 47UF 20% 35V SMD |
0 |
|
Datasheet |
AFC | Tape & Reel (TR) | Not For New Designs | 47 µF | ±20% | 35 V | 4.2Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 172.5 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
RXW122M1VBK-1620SCAP ALUM 35V POLAR |
0 |
|
- |
RXW | Active | 1.2 mF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.323 A @ 120 Hz | 2.205 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | ||
|
50ZLH560MEFCRI12.5X25CAP ALUM 560UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
ZLH | Bulk | Active | 560 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.326 A @ 120 Hz | 2.41 A @ 100 kHz | 23 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
RSRJH222M1TG40300TALUM ELECT CAP |
0 |
|
Datasheet |
RJH | Tape & Reel (TR) | Active | 2.2 mF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKZE250ETD152MK25SCAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
Datasheet |
KZE | Tape & Box (TB) | Active | 1500 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.662 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKZE250ETE152MK25SCAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
Datasheet |
KZE | Tape & Box (TB) | Active | 1500 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.662 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UPM1K221MHD6CACAP ALUM 80V POLAR |
0 |
|
- |
UPM | Cut Tape (CT) | Active | 220 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 645 mA @ 120 Hz | 881 mA @ 10 kHz | 130 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
