Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESE107M200AM7AACAP ALUM RAD 105C |
0 |
|
Datasheet |
ESE | Bulk | Active | 100 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 615 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UPW1V681MPD6AACAP ALUM 35V POLAR |
0 |
|
- |
UPW | Bulk | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.3613 A @ 120 Hz | 1.815 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
6.3ZLH4700MG412.5X25CAP ALUM 4700UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
ZLH | Tape & Box (TB) | Active | 4700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
80ZLH270MEFCG412.5X20CAP ALUM 270UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
ZLH | Tape & Box (TB) | Active | 270 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | - | 85 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
UPW1V102MHD1TDCAP ALUM 35V POLAR |
0 |
|
- |
UPW | Tape & Box (TB) | Active | 1 mF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.4625 A @ 120 Hz | 1.95 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELZA160ELL182MJ25SCAP ALUM 1800UF 20% 16V RADIAL |
0 |
|
Datasheet |
LZA | Bulk | Active | 1800 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.044 A @ 120 Hz | 1.74 A @ 100 kHz | 33 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
MAL203851471E3CAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
- |
038 RSU | Bulk | Obsolete | 470 µF | ±20% | 50 V | - | 3500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 1.019 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EKZE500ELL220ME11DCAP ALUM 22UF 20% 50V RADIAL TH |
74 |
|
Datasheet |
KZE | Bulk | Obsolete | 22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 95.2 mA @ 120 Hz | 238 mA @ 100 kHz | 340 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UKA0J470MDDCAP ALUM 47UF 20% 6.3V RADIAL TH |
56 |
|
Datasheet |
UKA | Bulk | Obsolete | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 65 mA @ 120 Hz | 130 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEV-HB0G470RCAP ALUM 47UF 20% 4V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 34 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEV-FC0J101PCAP ALUM 100UF 20% 6.3V SMD |
0 |
|
Datasheet |
FC | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FC1C470PCAP ALUM 47UF 20% 16V SMD |
0 |
|
Datasheet |
FC | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FC1V220PCAP ALUM 22UF 20% 35V SMD |
0 |
|
Datasheet |
FC | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EEV-FC1H100PCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
FC | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 52.5 mA @ 120 Hz | 70 mA @ 100 kHz | 2 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

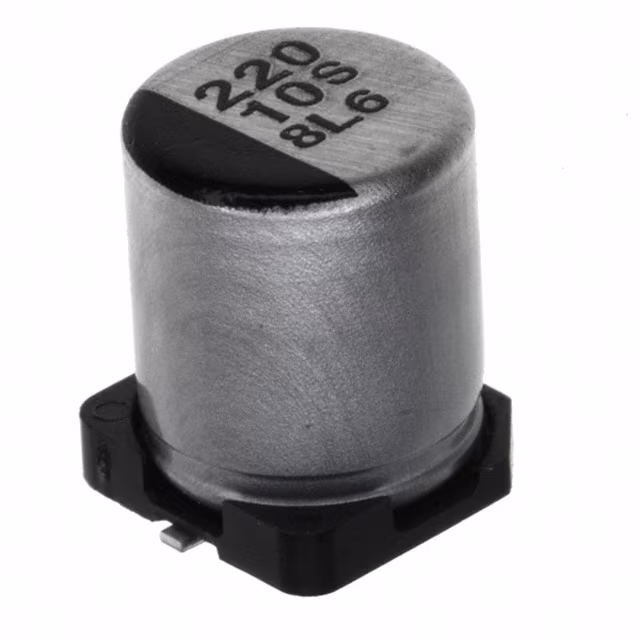

ECE-V1AA221XPCAP ALUM 220UF 20% 10V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 173 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

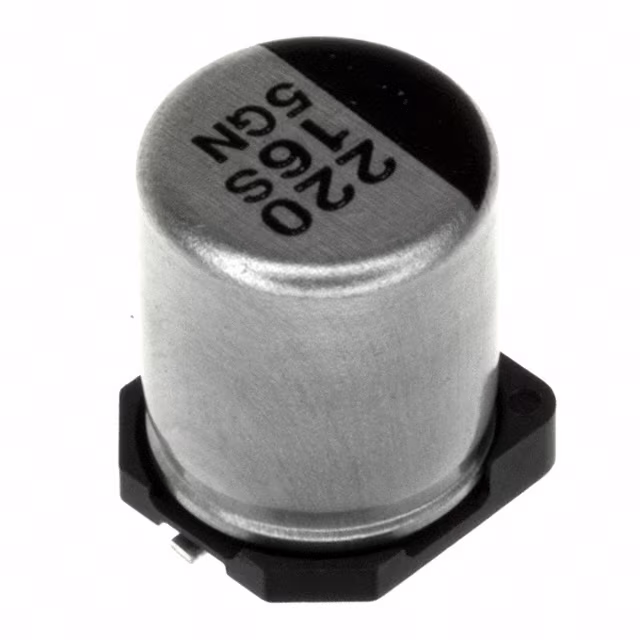

ECE-V1CA221XPCAP ALUM 220UF 20% 16V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 162 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

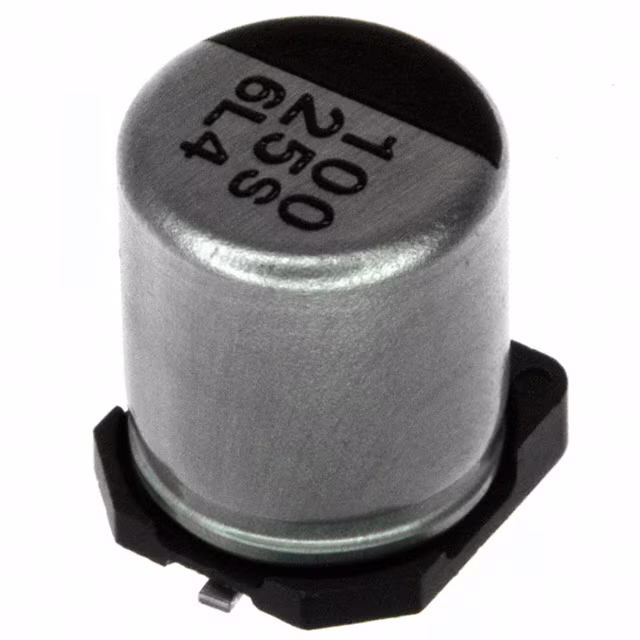

ECE-V1EA101XPCAP ALUM 100UF 20% 25V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 143 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

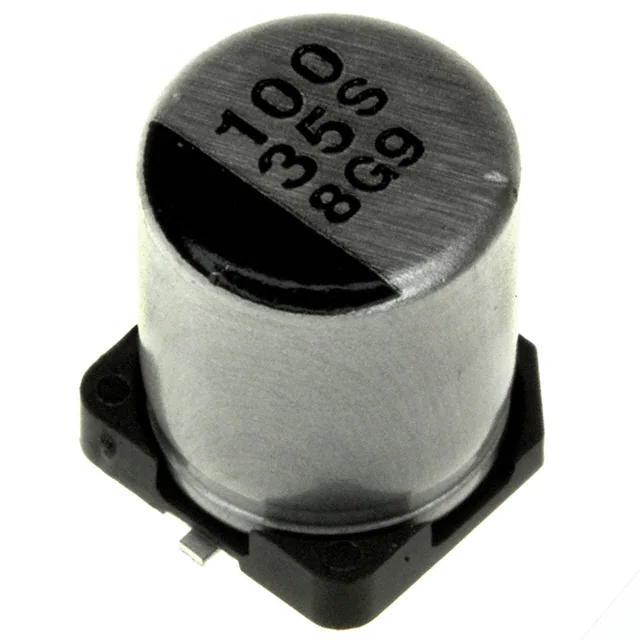

ECE-V1VA101XPCAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 132 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECE-V1HA330XPCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|

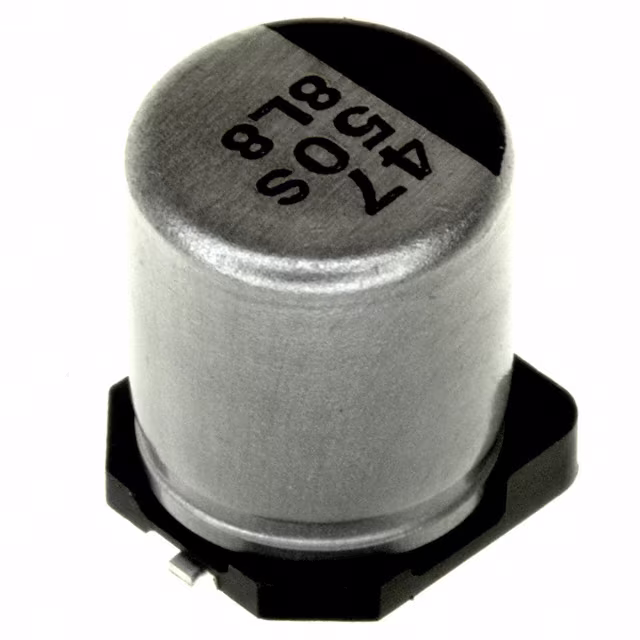

ECE-V1HA470XPCAP ALUM 47UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 105 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
