Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160YXF68MEFCG412.5X25CAP ALUM 68UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
YXF | Tape & Box (TB) | Not For New Designs | 68 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-TA1J330BCAP ALUM 33UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
TA | Tape & Box (TB) | Active | 33 µF | ±20% | 63 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | 360 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
ESMG6R3ELL472MK20SCAP ALUM 4700UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
SMG | Bulk | Active | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.545 A @ 120 Hz | 1.6686 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPM1C821MHD6CMCAP ALUM 16V POLAR |
0 |
|
- |
UPM | Bulk | Active | 820 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 900 mA @ 120 Hz | 1.06 A @ 10 kHz | 60 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.669" (17.00mm) | - | Through Hole | |
|
|
UPM1C821MPD1AACAP ALUM 16V POLAR |
0 |
|
- |
UPM | Bulk | Active | 820 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.07 A @ 120 Hz | 1.26 A @ 10 kHz | 55 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
10SEV100M6.3X5.5CAP ALUM 100UF 20% 10V SMD |
100 |
|
Datasheet |
SEV | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 71 mA @ 120 Hz | 85.2 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
EKMG630ETD220ME11DCAP ALUM 22UF 20% 63V RADIAL TH |
48 |
|
Datasheet |
KMG | Cut Tape (CT) | Obsolete | 22 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 127.8 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EMVL160ARA100MD60GCAP ALUM 10UF 20% 16V SMD |
45 |
|
Datasheet |
Alchip™- MVL | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 27 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.236" (6.00mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EKYA101ELL4R7ME11DCAP ALUM 4.7UF 20% 100V RADIAL |
32 |
|
Datasheet |
KYA | Bulk | Obsolete | 4.7 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 65 mA @ 100 kHz | 2.5 Ohms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
VMMC0572G1R2MVCAP ALUM 400V POLAR |
7 |
|
Datasheet |
VMM | Cut Tape (CT) | Active | 1.2 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | High Temperature Reflow | 20 mA @ 120 Hz | 30 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UWX0G331MCL1GBCAP ALUM 330UF 20% 4V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 4 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 217.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.213" (5.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
UWX1A221MCL1GBCAP ALUM 220UF 20% 10V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 202.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.217" (5.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

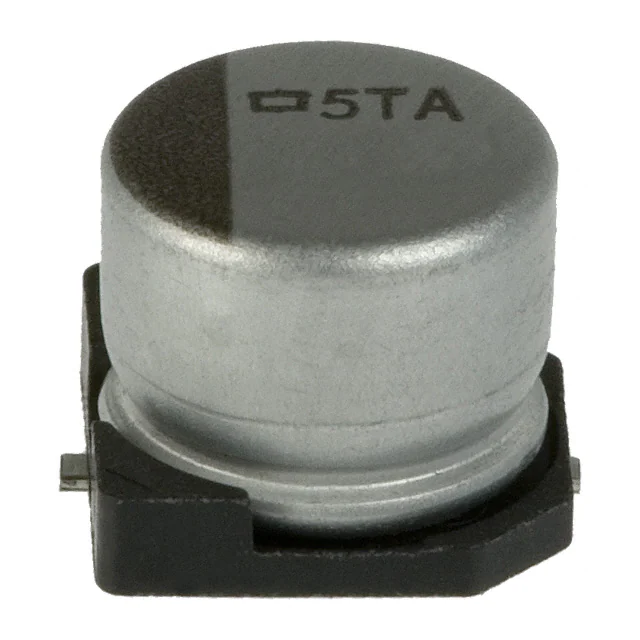

EMVK500ADA100MF55GCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
AVE475M35B12T-FCAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Datasheet |
AVE | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 35 V | 42.33Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 28 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.209" (5.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UWS1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
0 |
|
Datasheet |
UWS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | High Temperature Reflow | 65 mA @ 120 Hz | 108.55 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UWS1H330MCL1GSCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
UWS | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | High Temperature Reflow | 95 mA @ 120 Hz | 158.65 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UWZ1A330MCL1GBCAP ALUM 33UF 20% 10V SMD |
0 |
|
Datasheet |
UWZ | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 35 mA @ 120 Hz | 52.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UPB1A221MED1TDCAP ALUM 220UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
UPB | Cut Tape (CT) | Obsolete | 220 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 130 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
6.3SEV220M6.3X5.5CAP ALUM 220UF 20% 6.3V SMD |
0 |
|
Datasheet |
SEV | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 96 mA @ 120 Hz | 115.2 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UMW1V100MDD1TPCAP ALUM 10UF 20% 35V RADIAL TH |
0 |
|
- |
UMW | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 29 mA @ 120 Hz | 43.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
