Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPW1V4R7MDD1TDCAP ALUM 4.7UF 20% 35V RADIAL TH |
25 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UWX1H3R3MCL1GBCAP ALUM 3.3UF 20% 50V SMD |
20 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 25.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UPJ1H100MDD1TDCAP ALUM 10UF 20% 50V RADIAL TH |
15 |
|
Datasheet |
UPJ | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 115 mA @ 10 kHz | 2 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVK1H470MED1TDCAP ALUM 47UF 20% 50V RADIAL TH |
5 |
|
Datasheet |
UVK | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 310 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UPJ1H4R7MDD1TDCAP ALUM 4.7UF 20% 50V RADIAL TH |
1 |
|
Datasheet |
UPJ | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | 3.1 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ECE-V1EA4R7NRCAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 21 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

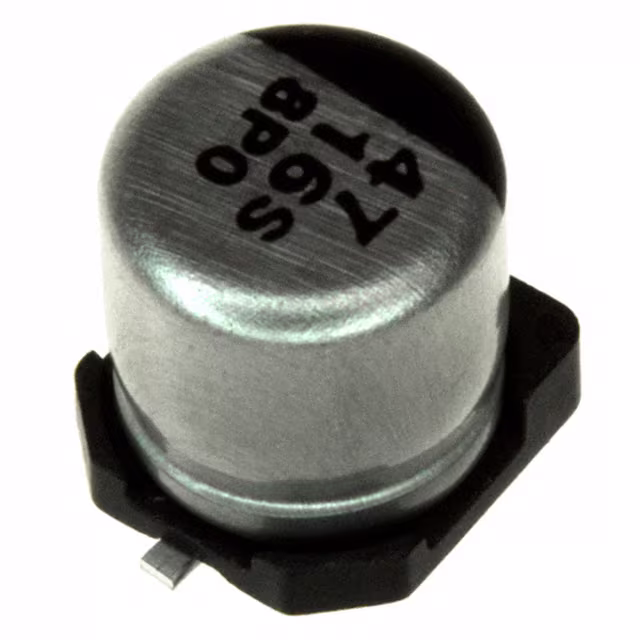

ECE-V1CA470WRCAP ALUM 47UF 20% 16V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
ECE-V1VA330UPCAP ALUM 33UF 20% 35V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
ECE-V1AA101WRCAP ALUM 100UF 20% 10V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

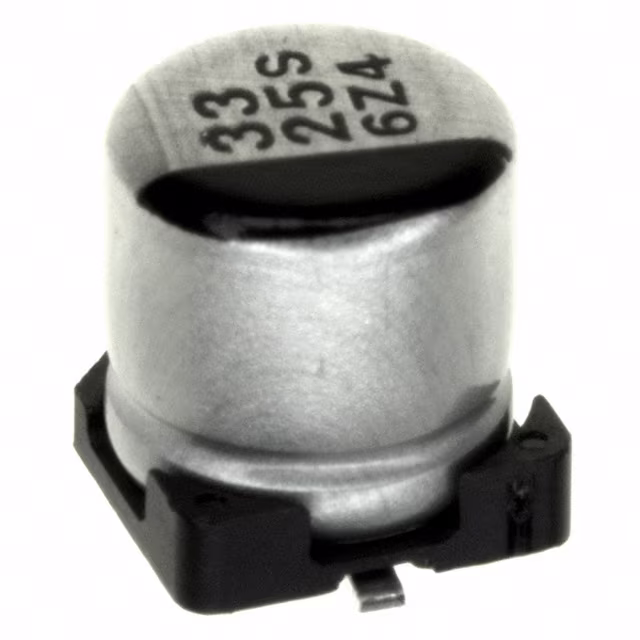

ECE-V1EA330WRCAP ALUM 33UF 20% 25V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

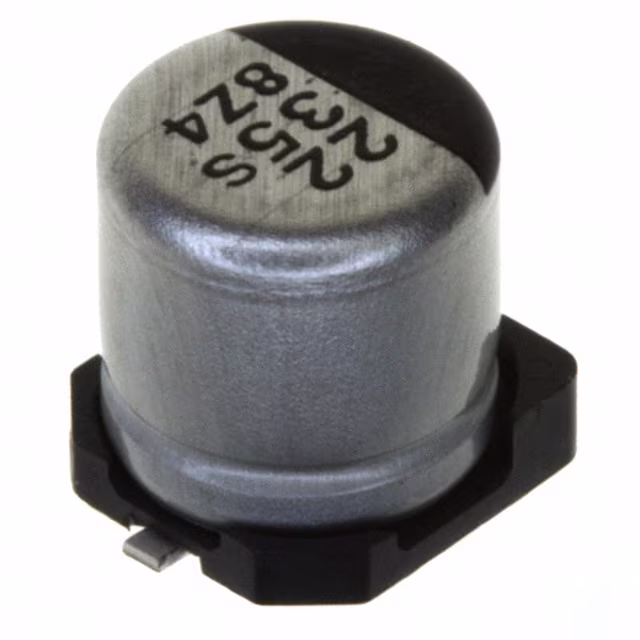

ECE-V1VA220WRCAP ALUM 22UF 20% 35V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|

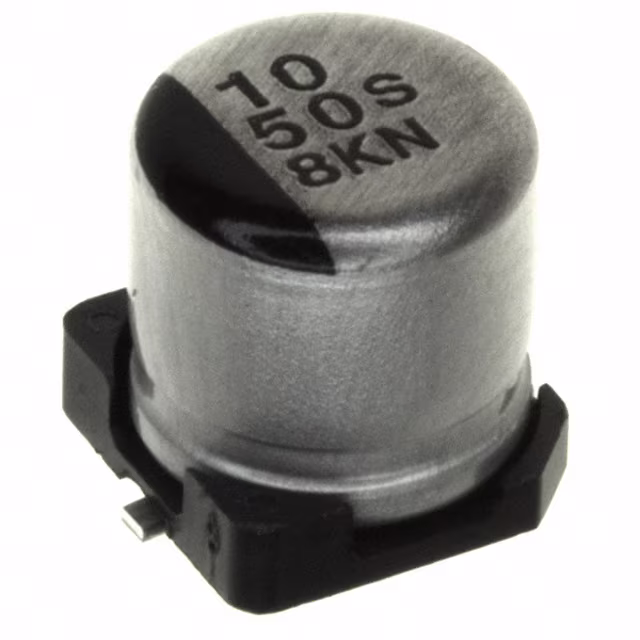

ECE-V1HA100WRCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27 mA @ 120 Hz | - | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UWX0G560MCL1GBCAP ALUM 56UF 20% 4V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 56 µF | ±20% | 4 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42 mA @ 120 Hz | 63 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
UWX1E4R7MCL1GBCAP ALUM 4.7UF 20% 25V SMD |
0 |
|
Datasheet |
UWX | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 24 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EEV-FK1A471GPCAP ALUM 470UF 20% 10V SMD |
0 |
|
Datasheet |
FK | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 450 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EKMG500ELL100ME11DCAP ALUM 10UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 72 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ELXZ250ELL470MEB5DCAP ALUM 47UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
LXZ | Bulk | Obsolete | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 175 mA @ 100 kHz | 500 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UVR1H470MED1TDCAP ALUM 47UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UVR | Cut Tape (CT) | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 310 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
16YXG220MEFC6.3X11CAP ALUM 220UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 220 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UMT1H2R2MDD1TPCAP ALUM 2.2UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UMT | Cut Tape (CT) | Obsolete | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 11 mA @ 120 Hz | 16.5 mA @ 10 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.236" (6.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
