Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPJ1V271MPDCAP ALUM 270UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 270 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 735 mA @ 120 Hz | 985 mA @ 10 kHz | 110 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
MAL203859339E3CAP ALUM 33UF 20% 100V RADIAL TH |
0 |
|
- |
038 RSU | Bulk | Obsolete | 33 µF | ±20% | 100 V | - | 2500 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | 217.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
50YXJ220MT810X16CAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
YXJ | Tape & Box (TB) | Active | 220 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 735 mA @ 120 Hz | 1.05 A @ 100 kHz | 84 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
VZL221M1VTR-1010SCAP ALUM 35V POLAR |
0 |
|
- |
VZL | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | ||
|
EGXL350EC3101MJC5SCAP ALUM 100UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
GXL | Bulk | Active | 100 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 320 mA @ 120 Hz | 800 mA @ 100 kHz | 170 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
EGXL500EC3101MJC5SCAP ALUM 100UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
GXL | Bulk | Active | 100 µF | ±20% | 50 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 236 mA @ 120 Hz | 590 mA @ 100 kHz | 300 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
6.3ML1000MEFCT810X9CAP ALUM 1000UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
ML | Tape & Box (TB) | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 576 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
25ML330MEFCT810X9CAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
ML | Tape & Box (TB) | Not For New Designs | 330 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 450 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
35ZLH270MEFCTA8X16CAP ALUM 270UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
ZLH | Tape & Box (TB) | Active | 270 µF | ±20% | 35 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 625 mA @ 120 Hz | 1.25 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
35ZLH270MEFCT78X16CAP ALUM 270UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
ZLH | Tape & Box (TB) | Active | 270 µF | ±20% | 35 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 625 mA @ 120 Hz | 1.25 A @ 100 kHz | 45 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
ESMQ201ELL1R0MF11DCAP ALUM 1UF 20% 200V RADIAL TH |
0 |
|
Datasheet |
SMQ | Bulk | Active | 1 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 55 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
MAL214235471E3CAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
142 RHS | Tape & Box (TB) | Active | 470 µF | ±20% | 16 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 499.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
MAL214239339E3CAP ALUM 33UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
142 RHS | Tape & Box (TB) | Active | 33 µF | ±20% | 100 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 222 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
|
ESX107M063AH2AACAP ALUM RAD 105C |
0 |
|
Datasheet |
ESX | Bulk | Active | 100 µF | ±20% | 63 V | 310mOhm @ 100kHz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 525 mA @ 120 Hz | 750 mA @ 100 kHz | 310 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
EDH227M035A9PAACAP ALUM 220UF 20% 35V SMD |
0 |
|
Datasheet |
EDH | Tape & Reel (TR) | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 437.5 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
UVR2A101MPD1CACAP ALUM 100V POLAR |
0 |
|
- |
UVR | Cut Tape (CT) | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 555 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

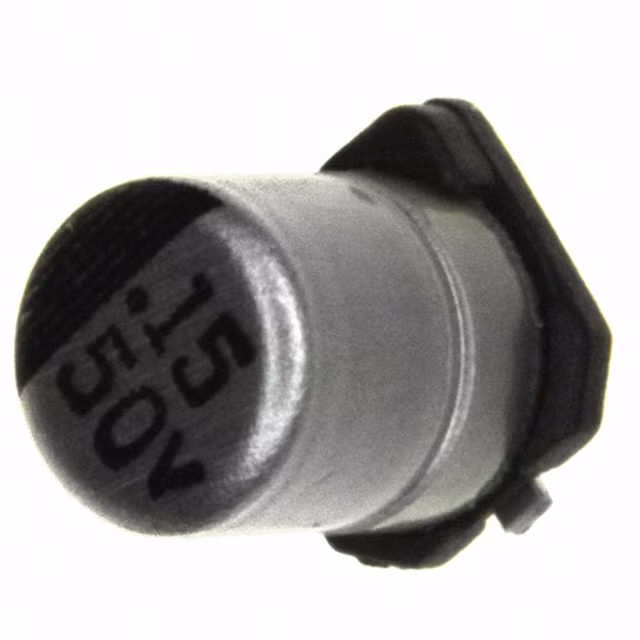

ECE-V1HVR15SRCAP ALUM 0.15UF 20% 50V SMD |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | 0.15 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | - | - | - | Surface Mount | |
|
|
10TWL100KEFC10X16CAP ALUM 100UF 10% 10V RADIAL TH |
0 |
|
Datasheet |
TWL | Bulk | Active | 100 µF | ±10% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
6.3ZL1200MEFCT810X16CAP ALUM 1200UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
ZL | Tape & Box (TB) | Last Time Buy | 1200 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 858 mA @ 120 Hz | - | 38 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
UHE1A102MPD1FACAP ALUM 10V POLAR |
0 |
|
- |
UHE | Bulk | Active | 1 mF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 787.5 mA @ 120 Hz | 1.05 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
