Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10YXG1000MEFCT78X20CAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
YXG | Tape & Box (TB) | Not For New Designs | 1000 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.05 A @ 100 kHz | 69 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
10ZLH1000MEFCTA8X16CAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
ZLH | Tape & Box (TB) | Active | 1000 µF | ±20% | 10 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.25 A @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
KY6.3VB182M12X15LLCAP ALUM 1800UF 20% 6.3V RADIAL |
0 |
|
- |
KY | Bulk | Active | 1800 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.45 A @ 100 kHz | 49 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.591" (15.00mm) | - | Through Hole | |
|
EMZF160ARA470MF73GCAP ALUM 47UF 20% 16V SMD |
0 |
|
Datasheet |
Alchip™- MZF | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 140 mA @ 100 kHz | 1.1 Ohms | - | 0.248" Dia (6.30mm) | 0.287" (7.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EKMG500ETD101MHB5DCAP ALUM 100UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
KMG | Tape & Box (TB) | Obsolete | 100 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 270 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
EKRG500EC3221MJC5SCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
KRG | Tape & Reel (TR) | Active | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 435 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UTT1C221MPD1TDCAP ALUM 220UF 20% 16V RADIAL TH |
0 |
|
- |
UTT | Tape & Box (TB) | Obsolete | 220 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 138 mA @ 120 Hz | 230 mA @ 100 kHz | 680 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
25ZT270M8X20CAP ALUM 270UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
ZT | Bulk | Obsolete | 270 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 437.5 mA @ 120 Hz | 1.25 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
35ZT120M8X16CAP ALUM 120UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
ZT | Bulk | Obsolete | 120 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 348.25 mA @ 120 Hz | 995 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
108KXM010MCAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
KXM | Bulk | Active | 1000 µF | ±20% | 10 V | 315mOhm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.25 A @ 100 kHz | 130 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
RZW121M1JBK-1016SCAP ALUM 63V POLAR |
0 |
|
- |
RZW | Active | 120 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 475 mA @ 120 Hz | 950 mA @ 100 kHz | 110 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | ||
|
|
AFK226M35C12B-FCAP ALUM 22UF 20% 35V SMD |
0 |
|
Datasheet |
AFK | Bulk | Obsolete | 22 µF | ±20% | 35 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 120 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.256" W (5.30mm x 6.50mm) | Surface Mount | |
|

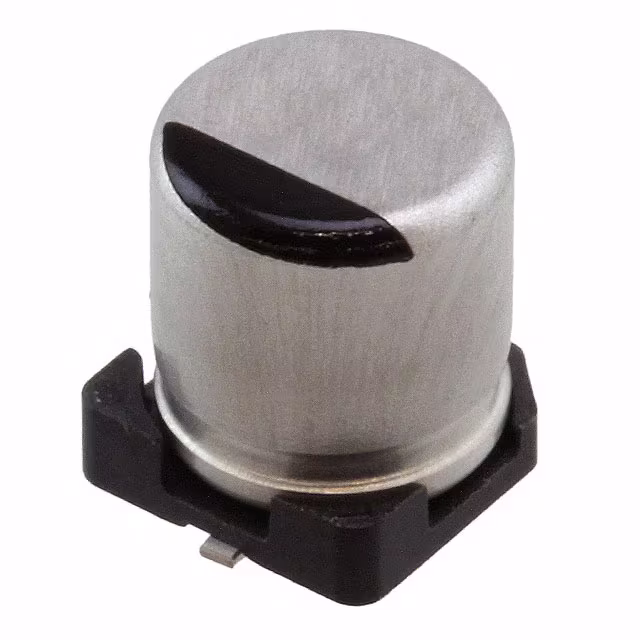

AFK336M25C12B-FCAP ALUM 33UF 20% 25V SMD |
0 |
|
Datasheet |
AFK | Bulk | Obsolete | 33 µF | ±20% | 25 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 120 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.256" W (5.30mm x 6.50mm) | Surface Mount | |
|
|
EST108M6R3AH1AACAP ALUM RAD 105C |
0 |
|
Datasheet |
EST | Bulk | Active | 1 mF | ±20% | 6.3 V | 120mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 519 mA @ 120 Hz | 865 mA @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UPJ1J820MPD6CAP ALUM 82UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 82 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 580 mA @ 10 kHz | 240 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
UHD1C681MPD6AACAP ALUM 16V POLAR |
0 |
|
- |
UHD | Bulk | Active | 680 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.0725 A @ 120 Hz | 1.43 A @ 100 kHz | 38 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
10YXH1000MEFC8X20CAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
YXH | Bulk | Last Time Buy | 1000 µF | ±20% | 10 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 630 mA @ 120 Hz | 1.05 A @ 100 kHz | 69 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
160WA10MEFC10X9CAP ALUM 10UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
WA | Bulk | Not For New Designs | 10 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 127.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
160WA10MEFCT810X9CAP ALUM 10UF 20% 160V RADIAL TH |
0 |
|
Datasheet |
WA | Tape & Box (TB) | Not For New Designs | 10 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 127.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
25WXA330MEFCT810X9CAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
WXA | Tape & Box (TB) | Active | 330 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 310 mA @ 120 Hz | 372 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
