Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10YXG680MEFC10X12.5CAP ALUM 680UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 680 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 475.75 mA @ 120 Hz | - | 80 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
25YXH330MEFCTA8X16CAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
YXH | Tape & Box (TB) | Last Time Buy | 330 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 462 mA @ 120 Hz | - | 87 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
25YXH330MEFCT78X16CAP ALUM 330UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
YXH | Tape & Box (TB) | Last Time Buy | 330 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 462 mA @ 120 Hz | - | 87 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
ESK228M010AH4AACAP ALUM RAD 85C |
0 |
|
Datasheet |
ESK | Bulk | Active | 2.2 mF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.012 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
ESK228M010AH4EACAP ALUM RAD 85C |
0 |
|
Datasheet |
ESK | Tape & Box (TB) | Active | 2.2 mF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.012 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
KY25VB821M10X25LLCAP ALUM 820UF 20% 25V RADIAL TH |
0 |
|
- |
KY | Bulk | Active | 820 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | 42 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ESMQ251ELL3R3MF11DCAP ALUM 3.3UF 20% 250V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 3.3 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 100 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EKY-350ETD331MJ16SCAP ALUM 330UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
KY | Tape & Box (TB) | Active | 330 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 605 mA @ 120 Hz | 1.21 A @ 100 kHz | 60 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
ELXV500ETD121MJ16SCAP ALUM 120UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
LXV | Tape & Box (TB) | Active | 120 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 377.5 mA @ 120 Hz | 755 mA @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
ELXV630ETD680MJ16SCAP ALUM 68UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
LXV | Tape & Box (TB) | Active | 68 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 183.05 mA @ 120 Hz | 523 mA @ 100 kHz | 210 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
USF1E680MDD1TECAP ALUM 68UF 20% 25V RADIAL TH |
0 |
|
- |
USF | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 200 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole | |
|
EEV-HA1V470UPCAP ALUM 47UF 20% 35V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 84 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EEV-HA1H330UPCAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | - | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

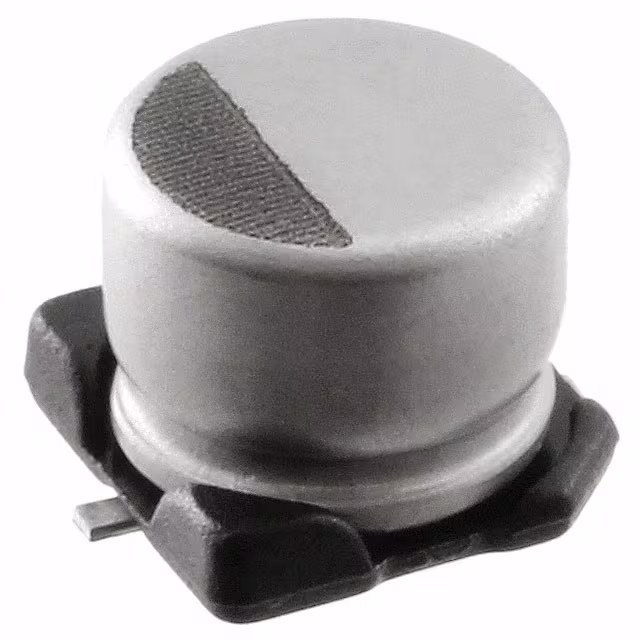

AVRF686M16D16T-FCAP ALUM 68UF 20% 16V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 16 V | 500mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 160 mA @ 100 kHz | 500 mOhms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPW1J100MDD1TDCAP ALUM 10UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UPW | Cut Tape (CT) | Obsolete | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | - | 2.1 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UUX1C221MND1GSCAPACITOR |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
UUX1E331MNQ1GSCAPACITOR |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MAL214252285E3CAP ALUM 2.2UF 20% 350V RADIAL |
0 |
|
Datasheet |
142 RHS | Bulk | Active | 2.2 µF | ±20% | 350 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 61.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
MAL214252286E3CAP ALUM 2.2UF 20% 400V RADIAL |
0 |
|
Datasheet |
142 RHS | Bulk | Active | 2.2 µF | ±20% | 400 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 58.5 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
MAL214252478E3CAP ALUM 4.7UF 20% 200V RADIAL |
0 |
|
Datasheet |
142 RHS | Bulk | Active | 4.7 µF | ±20% | 200 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 81 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
