Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VEJ221M1VTR-0810SCAP ALUM 35V POLAR |
0 |
|
- |
VEJ | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 378 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | ||
|
|
VUX680M1VTR-0810SCAP ALUM 35V POLAR |
0 |
|
- |
VUX | Active | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | 200 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | ||
|
|
VZH330M1KTR-0810SCAP ALUM 80V POLAR |
0 |
|
- |
VZH | Active | 33 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 315 mA @ 120 Hz | 450 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | ||
|
|
VZH331M1ETR-0810SCAP ALUM 25V POLAR |
0 |
|
- |
VZH | Active | 330 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 450 mA @ 120 Hz | 450 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | ||
|
UPJ2A390MPDCAP ALUM 39UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 39 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 202 mA @ 120 Hz | 352 mA @ 10 kHz | 330 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.827" (21.00mm) | - | Through Hole | |
|
337RZM050M1020CAP ALUM 330UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
RZM | Bulk | Obsolete | 330 µF | ±20% | 50 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | - | 420 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
KY50VB221M10X16LLCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
- |
KY | Bulk | Active | 220 µF | ±20% | 50 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 525 mA @ 120 Hz | 1.05 A @ 100 kHz | 84 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
156KFM200MFBWELECTROLYTIC/IC |
0 |
|
Datasheet |
KFM | Bulk | Active | 15 µF | ±20% | 200 V | 16.5786Ohm @ 120Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 360 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
USV1V220MFD1TECAP ALUM 22UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
USV | Tape & Box (TB) | Obsolete | 22 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 85.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | |
|
|
AEF0608470M035RCAP ALUM 35V POLAR |
0 |
|
Datasheet |
AEF | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | 750mOhm @ 100kHz | 6000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 95 mA @ 120 Hz | 190 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.335" (8.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
6.3ZLG560MEFCTA8X11.5CAP ALUM 560UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
ZLG | Tape & Box (TB) | Active | 560 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | - | 36 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
6.3ZLG560MEFCT78X11.5CAP ALUM 560UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
ZLG | Tape & Box (TB) | Active | 560 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | - | 36 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
UVP1E101MPD1DNCAP ALUM 25V BIPOLAR |
0 |
|
- |
UVP | Tape & Box (TB) | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 160 mA @ 120 Hz | 240 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
KY10VB102M10X16LLCAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
- |
KY | Bulk | Active | 1000 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 726 mA @ 120 Hz | 1.21 A @ 100 kHz | 60 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole | |
|
|
EMVA4R0ADA331MF80GCAP ALUM 330UF 20% 4V SMD |
0 |
|
Datasheet |
Alchip™- MVA | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 4 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 135 mA @ 120 Hz | 145.8 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EDK227M016A9MAACAP ALUM 220UF 20% 16V SMD |
0 |
|
Datasheet |
EDK | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 350 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EDH337M6R3A9MAACAP ALUM 330UF 20% 6.3V SMD |
0 |
|
Datasheet |
EDH | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 362.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EDK107M035A9MAACAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
EDK | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 225 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

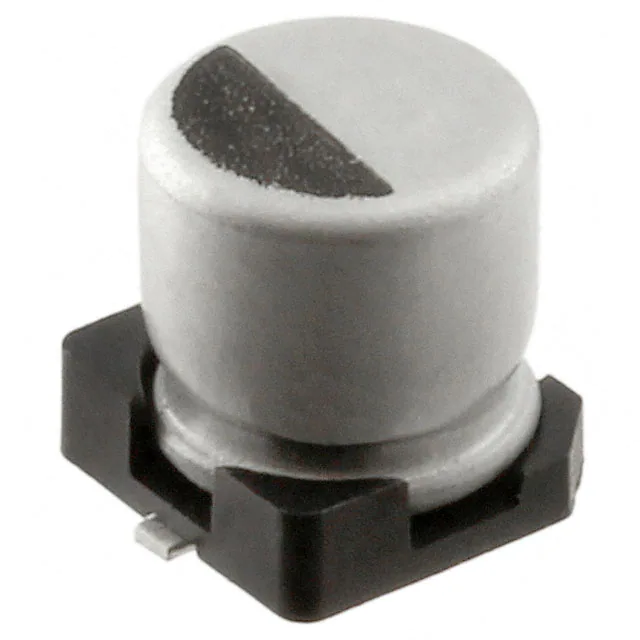

AVRF107M06C12T-FCAP ALUM 100UF 20% 6.3V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 6.3 V | 900mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 100 mA @ 100 kHz | 900 mOhms | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
100RX304.7MT78X11.5CAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
RX30 | Tape & Box (TB) | Active | 4.7 µF | ±20% | 100 V | - | 2000 Hrs @ 130°C | -40°C ~ 130°C | Polar | AEC-Q200 | Automotive | 42 mA @ 120 Hz | - | 1.3 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
