Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEC-SMD-2.2UF50VCAP ALUM 50V POLAR |
60 |
|
Datasheet |
SMDGP | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 12 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EK1C101MP20511UCAP ALUM 100UF 20% 16V RADIAL TH |
3 |
|
Datasheet |
EK | Cut Tape (CT) | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 128 mA @ 120 Hz | 320 mA @ 100 kHz | 800 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEV-FC0J680PCAP ALUM 68UF 20% 6.3V SMD |
0 |
|
Datasheet |
FC | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | - | 1 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UVR1V220MDDCAP ALUM 22UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 180 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

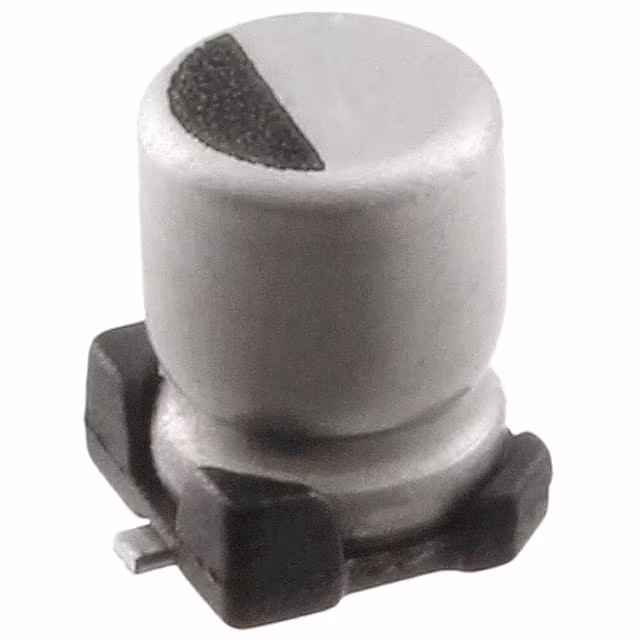

AVRF476M06B12T-FCAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet |
AVRF | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | 1.65Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 70 mA @ 100 kHz | 1.65 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
SM1H100MP20511UCAP ALUM 10UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SM | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 140 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | ||
|
|
EST477M010AG3AACAP ALUM RAD 105C |
0 |
|
Datasheet |
EST | Bulk | Active | 470 µF | ±20% | 10 V | 200mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 640 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
MAL214279109E3CAP ALUM 10UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
142 RHS | Tape & Box (TB) | Active | 10 µF | ±20% | 100 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 99 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
ESY477M016AH1EACAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
ESY | Tape & Box (TB) | Active | 470 µF | ±20% | 16 V | 53mOhm @ 100kHz | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 772.5 mA @ 120 Hz | 1.03 A @ 100 kHz | 53 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
16YXG470MEFC8X11.5CAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 470 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
50WXA100MEFCTA8X9CAP ALUM 100UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
WXA | Tape & Box (TB) | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 200 mA @ 120 Hz | 240 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
|
16YXG470MEFCTA8X11.5CAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
YXG | Tape & Box (TB) | Not For New Designs | 470 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
16YXG470MEFCT78X11.5CAP ALUM 470UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
YXG | Tape & Box (TB) | Not For New Designs | 470 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPJ0J681MPD6CAP ALUM 680UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 680 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 580 mA @ 120 Hz | 700 mA @ 10 kHz | 180 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
EMLA6R3ARA470ME61GCAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet |
Alchip™- MLA | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 95 mA @ 100 kHz | 1.3 Ohms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EMLA100ARA330ME61GCAP ALUM 33UF 20% 10V SMD |
0 |
|
Datasheet |
Alchip™- MLA | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 95 mA @ 100 kHz | 1.3 Ohms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EMLK350ARA4R7ME61GCAP ALUM 4.7UF 20% 35V SMD |
0 |
|
Datasheet |
Alchip™- MLK | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 19 mA @ 120 Hz | 20.52 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EMLK350ARA100ME61GCAP ALUM 10UF 20% 35V SMD |
0 |
|
Datasheet |
Alchip™- MLK | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 27 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
25SLV47M6.3X6.1CAP ALUM 47UF 20% 25V SMD |
0 |
|
Datasheet |
SLV | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UVK2G2R2MPDCAP ALUM 2.2UF 20% 400V RADIAL |
0 |
|
Datasheet |
UVK | Bulk | Active | 2.2 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 60.8 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
