Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UVZ1V221MPD1AACAP ALUM 35V POLAR |
0 |
|
- |
UVZ | Bulk | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 275 mA @ 120 Hz | 412.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
UUD1C101MCL3GBCAPACITOR |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
UVZ2F2R2MPDCAP ALUM 2.2UF 20% 315V RADIAL |
0 |
|
Datasheet |
UVZ | Bulk | Active | 2.2 µF | ±20% | 315 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 41.6 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
UVR2A470MPD1CCCAP ALUM 100V POLAR |
0 |
|
- |
UVR | Cut Tape (CT) | Active | 47 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 460 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
UVR2A470MPD1AACAP ALUM 100V POLAR |
0 |
|
- |
UVR | Bulk | Active | 47 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 460 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
10YXG420MEFC8X7.5CAP ALUM 420UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
YXG | Bulk | Not For New Designs | 420 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | - | Through Hole | |
|
|
10YXG420MEFCT78X7.5CAP ALUM 420UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
YXG | Tape & Box (TB) | Not For New Designs | 420 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | - | Through Hole | |
|
|
10YXG420MEFCTA8X7.5CAP ALUM 420UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
YXG | Tape & Box (TB) | Not For New Designs | 420 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.295" (7.50mm) | - | Through Hole | |
|

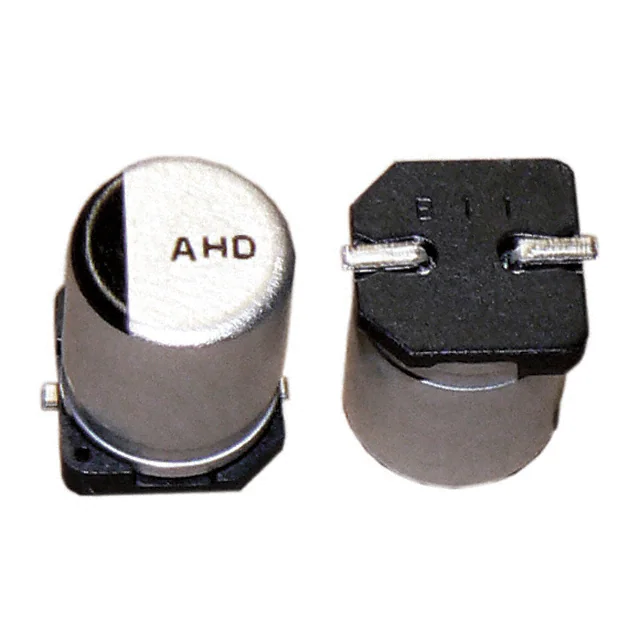

AHD106M16B12TCAP ALUM 10UF 20% 16V SMD |
0 |
|
Datasheet |
AHD | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 16 V | 33.2Ohm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 34 mA @ 10 kHz | 12 Ohms | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AHD225M50B12TCAP ALUM 2.2UF 20% 50V SMD |
0 |
|
Datasheet |
AHD | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 50 V | 90.4Ohm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12 mA @ 120 Hz | 20.4 mA @ 10 kHz | 12 Ohms | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AHD335M50B12TCAP ALUM 3.3UF 20% 50V SMD |
0 |
|
Datasheet |
AHD | Tape & Reel (TR) | Obsolete | 3.3 µF | ±20% | 50 V | 60.3Ohm @ 120Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 27.2 mA @ 10 kHz | 12 Ohms | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AVEK106M50D16T-FCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
AVEK | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 50 V | 23.2Ohm @ 120Hz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount | |
|
AVGA227M06X16T-FCAP ALUM 220UF 20% 6.3V SMD |
0 |
|
Datasheet |
AVGA | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 6.3 V | 3.39Ohm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | - | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
|
RXK471M1ABK-1012SCAP ALUM 10V POLAR |
0 |
|
- |
RXK | Active | 470 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 540 mA @ 120 Hz | 675 mA @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | ||
|
|
RXJ560M1JBK-1012SCAP ALUM 63V POLAR |
0 |
|
- |
RXJ | Active | 56 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 265 mA @ 120 Hz | 380 mA @ 100 kHz | 500 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | ||
|
|
RA-101M1JBK-1012SCAP ALUM 63V POLAR |
0 |
|
- |
RA | Active | 100 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 225 mA @ 120 Hz | 427.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | ||
|
|
RXJ471M1ABK-1012SCAP ALUM 10V POLAR |
0 |
|
- |
RXJ | Active | 470 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 510 mA @ 100 kHz | 250 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | ||
|
|
RXK471M0JBK-1012SCAP ALUM 6.3V POLAR |
0 |
|
- |
RXK | Active | 470 µF | ±20% | 6.3 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 625 mA @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | ||
|
|
RXJ471M0JBK-1012SCAP ALUM 6.3V POLAR |
0 |
|
- |
RXJ | Active | 470 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 510 mA @ 100 kHz | 250 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | ||
|
EKMG250ELL101MF11DCAP ALUM 100UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
KMG | Bulk | Obsolete | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 195 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
