Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMG6R3ELL470ME11DCAP ALUM 47UF 20% 6.3V RADIAL TH |
0 |
|
Datasheet |
SMG | Bulk | Active | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 92 mA @ 120 Hz | 165.6 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMG100ELL330ME11DCAP ALUM 33UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SMG | Bulk | Active | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 83 mA @ 120 Hz | 149.4 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMG100ELL101ME11DCAP ALUM 100UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SMG | Bulk | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 146 mA @ 120 Hz | 219 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMG160ELL330ME11DCAP ALUM 33UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SMG | Bulk | Active | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 163.8 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

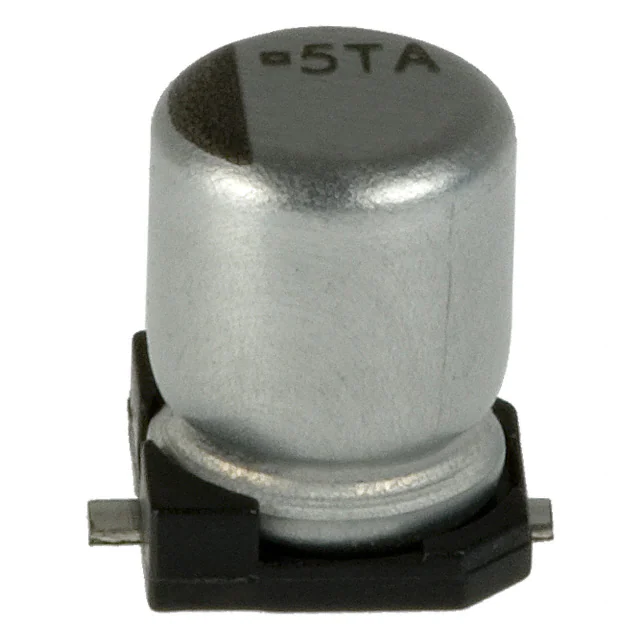

EMVK500ADAR33MD55GCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
Alchip™- MVK | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.2 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.205" (5.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
BMVK160ADA4R7MD60GCAP ALUM 4.7UF 20% 16V SMD |
0 |
|
Datasheet |
Alchip™- MVK-BP | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | - | General Purpose | 12 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.224" (5.70mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EKMQ101ELL2R2ME11DCAP ALUM 2.2UF 20% 100V RADIAL |
0 |
|
Datasheet |
KMQ | Bulk | Active | 2.2 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 52.5 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
EKMQ101ELL4R7ME11DCAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
KMQ | Bulk | Active | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 32 mA @ 120 Hz | 80 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESMQ630ELL220ME11DCAP ALUM 22UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
SMQ | Bulk | Active | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 180 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMQ101ELL1R0ME11DCAP ALUM 1UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
SMQ | Bulk | Active | 1 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21 mA @ 120 Hz | 52.5 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMQ101ELL4R7ME11DCAP ALUM 4.7UF 20% 100V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 4.7 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 112.5 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ELXV250ELL121MF15DCAP ALUM 120UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
LXV | Bulk | Active | 120 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 181.5 mA @ 120 Hz | 330 mA @ 100 kHz | 270 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
ELXV800ELL270MF15DCAP ALUM 27UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
LXV | Bulk | Active | 27 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 44 mA @ 120 Hz | 220 mA @ 100 kHz | 620 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
ELXY630ETC330MF15DCAP ALUM 33UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
LXY | Tape & Reel (TR) | Active | 33 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 93.2 mA @ 120 Hz | 233 mA @ 100 kHz | 610 mOhms | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
ELXZ160ETD101MFB5DCAP ALUM 100UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
LXZ | Tape & Box (TB) | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 116 mA @ 120 Hz | 290 mA @ 100 kHz | 250 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
|
|
ESMG100ETC101ME11DCAP ALUM 100UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SMG | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 146 mA @ 120 Hz | 219 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMG160ETD101ME11DCAP ALUM 100UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
SMG | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 240 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMG250ETC470ME11DCAP ALUM 47UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SMG | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 207 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMG250ETD470ME11DCAP ALUM 47UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
SMG | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 207 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
ESMG500ETC1R0ME11DCAP ALUM 1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SMG | Tape & Reel (TR) | Active | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 42.5 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
