Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UUL1A330MCL1GSCAP ALUM 33UF 20% 10V SMD |
0 |
|
Datasheet |
UUL | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 35 mA @ 120 Hz | 52.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UWH1H100MCL1GSCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
UWH | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 24 mA @ 120 Hz | 36 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UWP1A470MCL1GBCAP ALUM 47UF 20% 10V SMD |
0 |
|
Datasheet |
UWP | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 61 mA @ 120 Hz | 91.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.217" (5.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
Series.jpg)
|
EEE-FNC271XULCAP ALUM 270UF 20% 16V SMD |
0 |
|
Datasheet |
FN, Halogen Free | Tape & Reel (TR) | Active | 270 µF | ±20% | 16 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UHW1K391MHDCAP ALUM 390UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
UHW | Bulk | Active | 390 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.105 A @ 120 Hz | 2.21 A @ 100 kHz | 49 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKWA421ELL560MK30SCAP ALUM 56UF 20% 420V RADIAL TH |
0 |
|
Datasheet |
KWA | Bulk | Active | 56 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | 828 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UCD0J471MNL1GSCAP ALUM 470UF 20% 6.3V SMD |
0 |
|
Datasheet |
UCD | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UUB1C101MNL1GSCAP ALUM 100UF 20% 16V SMD |
0 |
|
Datasheet |
UUB | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | General Purpose | 66 mA @ 120 Hz | 99 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|

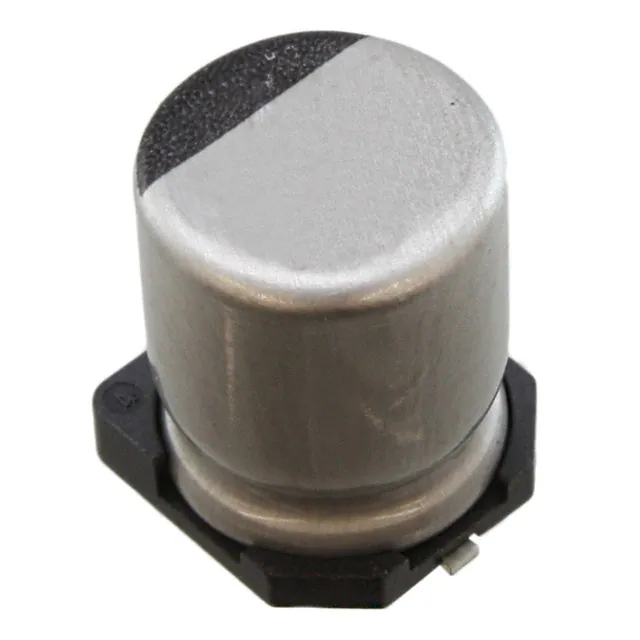

10TZV680M8X10.5CAP ALUM 680UF 20% 10V SMD |
0 |
|
Datasheet |
TZV | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UZT1H010MCL1GBCAP ALUM 1UF 20% 50V SMD |
0 |
|
Datasheet |
UZT | Tape & Reel (TR) | Active | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | AEC-Q200 | General Purpose | 5.4 mA @ 120 Hz | 8.1 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.181" (4.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
EDT337M010S9MAACAP ALUM 330UF 20% 10V SMD |
0 |
|
Datasheet |
EDT | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 185.714 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
865230157007CAP ALUM 470UF 20% 6.3V SMD |
8 |
|
Datasheet |
WCAP-AS5H | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 312 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EPAG451ELL560ML30SCAP ALUM 56UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
PAG | Bulk | Active | 56 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 792 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UPJ1H271MPDCAP ALUM 270UF 20% 50V RADIAL TH |
3 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 270 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.2 A @ 10 kHz | 85 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UPW1C681MPD6TDCAP ALUM 680UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 680 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 746.25 mA @ 120 Hz | 995 mA @ 100 kHz | 65 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
URS1V331MPD1TDCAP ALUM 330UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
URS | Cut Tape (CT) | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 720 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UPM1J561MHD6CAP ALUM 560UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 560 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.41 A @ 120 Hz | 1.73 A @ 10 kHz | 39 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPJ1E391MHD6TOCAP ALUM 390UF 20% 25V RADIAL TH |
1 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 390 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 920 mA @ 10 kHz | 130 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
225CKE450MCAP ALUM 2.2UF 20% 450V RADIAL |
0 |
|
Datasheet |
CKE | Bulk | Active | 2.2 µF | ±20% | 450 V | 150.71Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Bypass, Decoupling | 31 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EEE-HAV101UAPCAP ALUM 100UF 20% 35V SMD |
0 |
|
Datasheet |
HA | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 204 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.402" (10.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
