Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT2C103MSECAP ALUM 10000UF 20% 160V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 10000 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 7.8 A @ 120 Hz | 9.36 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
LNY2G472MSEHCAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 4700 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.2 A @ 120 Hz | 22.68 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.740" (95.00mm) | - | Chassis Mount | |
|
DCM273U075DF2BCAP ALUM 27000UF 75V SCREW CHAS |
0 |
|
Datasheet |
DCM | Bulk | Active | 27000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
LNC2G562MSEHCAP ALUM 5600UF 20% 400V SCREW |
1 |
|
Datasheet |
LNC | Bulk | Active | 5600 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20.2 A @ 120 Hz | 28.28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
LQR2W272MSEHCAP ALUM 2700UF 20% 450V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 2700 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10 A @ 120 Hz | 14 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
LNR2E103MSECAP ALUM 10000UF 20% 250V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 10000 µF | ±20% | 250 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 120 Hz | 14.16 A @ 10 kHz | - | 0.500" (12.70mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
PSU21635ACAP ALUM 216UF 250V QC CHAS MT |
0 |
|
Datasheet |
PSU | Bulk | Active | 216 µF | 0%, +20% | 250 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.063" Dia (52.40mm) | 4.435" (112.65mm) | - | Chassis Mount | |
|
LNT1H104MSECAP ALUM 100000UF 20% 50V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 100000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.8 A @ 120 Hz | 19.32 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
ALS30A222NP500CAP ALUM 2200UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS30 | Bulk | Active | 2200 µF | ±20% | 500 V | 80mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.3 A @ 100 Hz | 21.8 A @ 10 kHz | 44 mOhms | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
LNR1E334MSECAP ALUM 330000UF 20% 25V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 330000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.8 A @ 120 Hz | 28.52 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
LNC2W332MSEGCAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.646" (118.00mm) | - | Chassis Mount | |
|
|
LNT2C153MSECAP ALUM 15000UF 20% 160V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 15000 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 11.76 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|

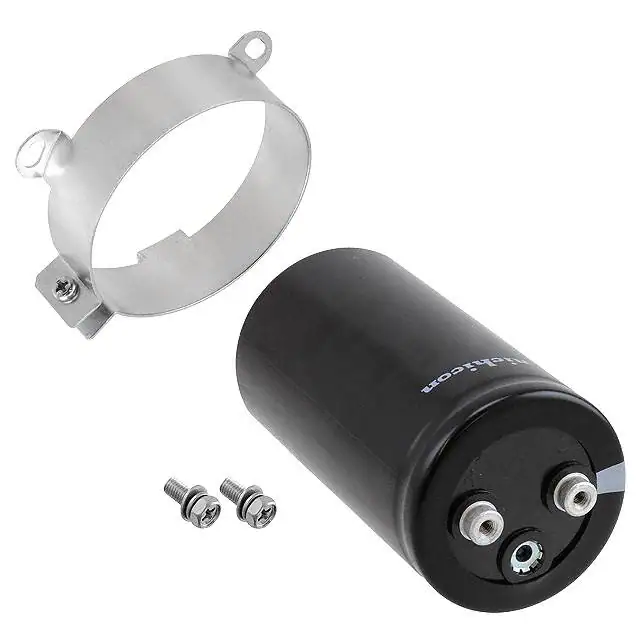

LNK2H222MSEGCAP ALUM 2200UF 20% 500V SCREW |
1 |
|
Datasheet |
LNK | Bulk | Active | 2200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.6 A @ 120 Hz | 13.44 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.724" (120.00mm) | - | Chassis Mount | |
|
CGS102T350V4CCAP ALUM 1000UF 350V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 1000 µF | -10%, +50% | 350 V | 140mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 5.55 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
LNR1K104MSECAP ALUM 100000UF 20% 80V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 100000 µF | ±20% | 80 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 21.3 A @ 120 Hz | 24.495 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
LNX2G472MSEHCAP ALUM 4700UF 20% 400V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 4700 µF | ±20% | 400 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16 A @ 120 Hz | 22.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.236" (133.00mm) | - | Chassis Mount | |
|

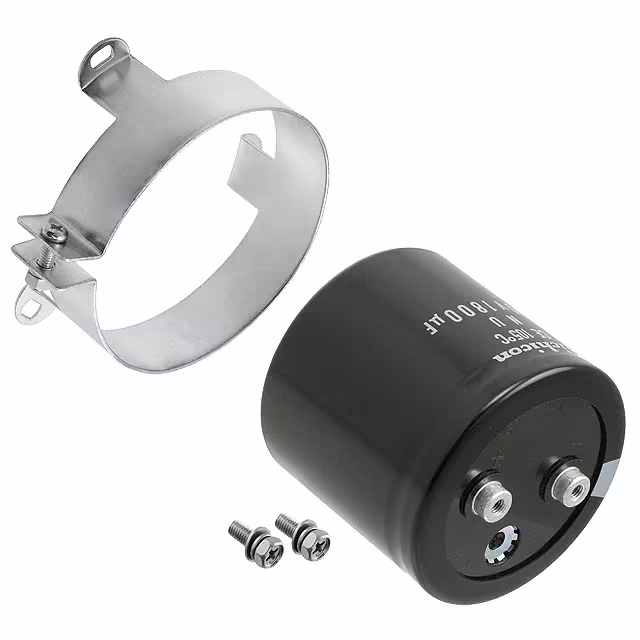

LNU2H182MSEHCAP ALUM 1800UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 1800 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.4 A @ 120 Hz | 10.36 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 2.874" (73.00mm) | - | Chassis Mount | |
|
CGS402T200U4CCAP ALUM 4000UF 200V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 4000 µF | -10%, +50% | 200 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 120 Hz | 12.45 A @ 10 kHz | - | - | 1.750" Dia (44.45mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
B41458B8689M000CAP ALUM 68000UF 20% 63V SCREW |
0 |
|
Datasheet |
B41458 | Bulk | Active | 68000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 A @ 100 Hz | - | 6.5 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.201" (106.70mm) | - | Chassis Mount | |
|
|
LNR1J154MSECAP ALUM 150000UF 20% 63V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 150000 µF | ±20% | 63 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 A @ 120 Hz | 29.9 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount |
