Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-TC1A561UPCAP ALUM 560UF 20% 10V SMD |
0 |
|
Datasheet |
TCU | Tape & Reel (TR) | Active | 560 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-TP1E221BCAP ALUM 220UF 20% 25V RADIAL TH |
11 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 220 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 377 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UCS2W100MHDCAP ALUM 10UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
UCS | Bulk | Active | 10 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UBW1A471MPD1TDCAP ALUM 470UF 20% 10V RADIAL TH |
10 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 340 mA @ 120 Hz | 680 mA @ 100 kHz | 100 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
UDB1H150MHM1TOCAP ALUM 15UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UDB | Cut Tape (CT) | Active | 15 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | Audio | - | 660 mA @ 1.3 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.024" (26.00mm) | - | Through Hole | |
|
6.3YXJ6800M12.5X25CAP ALUM 6800UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
YXJ | Bulk | Active | 6800 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.784 A @ 120 Hz | 2.23 A @ 100 kHz | 32 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCZ1V470MCS6GSCAP ALUM 47UF 20% 35V SMD |
0 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | 450mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 98.5 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPW1C272MHD6CAP ALUM 2700UF 20% 16V RADIAL |
7 |
|
Datasheet |
UPW | Bulk | Not For New Designs | 2700 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 1.879 A @ 120 Hz | 2.21 A @ 100 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.787" (20.00mm) | - | Through Hole | |
|
ELXY250ELL152MK30SCAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
Datasheet |
LXY | Bulk | Active | 1500 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.17 A @ 120 Hz | 1.95 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.240" (31.50mm) | - | Through Hole | |
|
UVP1H221MHDCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
UVP | Bulk | Not For New Designs | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 480 mA @ 120 Hz | 720 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UHV1V681MPDCAP ALUM 680UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
UHV | Bulk | Not For New Designs | 680 µF | ±20% | 35 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.485 A @ 120 Hz | 2.475 A @ 100 kHz | 17 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

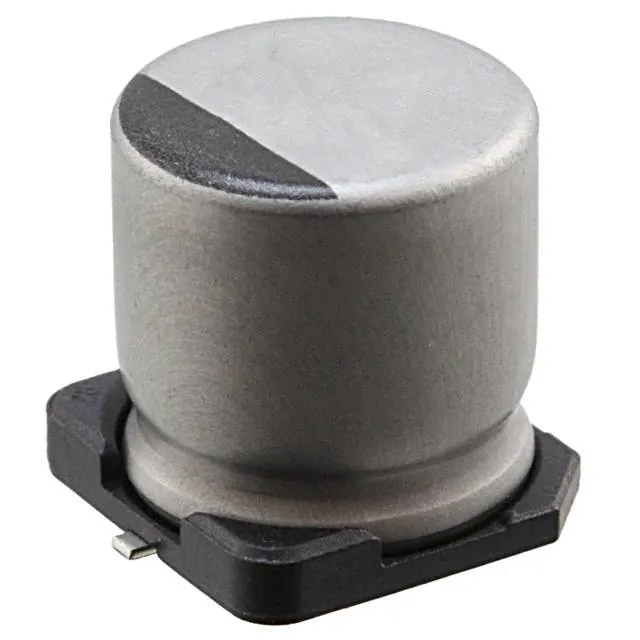

ULT2W5R6MNL1GSCAP ALUM 5.6UF 20% 450V SMD |
0 |
|
Datasheet |
ULT | Tape & Reel (TR) | Active | 5.6 µF | ±20% | 450 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 35 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPJ2A151MHD6TNCAP ALUM 150UF 20% 100V RADIAL |
9 |
|
Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 150 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 635 mA @ 120 Hz | 917 mA @ 10 kHz | 120 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
ECA-2WHG100CAP ALUM 10UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
NHG-A | Bulk | Active | 10 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 112.5 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCZ1E221MCL1GSCAP ALUM 220UF 20% 25V SMD |
0 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | 150mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 250 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
URS1J471MHDCAP ALUM 470UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
URS | Bulk | Active | 470 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.35 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
EKYB630ELL561MK25SCAP ALUM 560UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
KYB | Bulk | Active | 560 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 2.1 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EEU-FC2A680CAP ALUM 68UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
FC | Bulk | Active | 68 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 332.2 mA @ 120 Hz | 511 mA @ 100 kHz | 230 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.630" (16.00mm) | - | Through Hole | |
|
860020380025CAP ALUM 4700UF 20% 16V RADIAL |
5 |
|
Datasheet |
WCAP-ATG5 | Cut Tape (CT) | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.048 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
EKYB500ELL102MM20SCAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
KYB | Bulk | Active | 1000 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.6 A @ 100 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
