Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25ZLH330MEFCT78X11.5CAP ALUM 330UF 20% 25V RADIAL TH |
46 |
|
Datasheet |
ZLH | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 519.75 mA @ 120 Hz | 945 mA @ 100 kHz | 56 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKZN350ELL271MJC5SCAP ALUM 270UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
KZN | Bulk | Active | 270 µF | ±20% | 35 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.7 A @ 100 kHz | 53 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
ULV2H3R3MNL1GSCAP ALUM 3.3UF 20% 500V SMD |
0 |
|
Datasheet |
ULV | Tape & Reel (TR) | Active | 3.3 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 40 mA @ 120 Hz | 64 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UKL1H150MEDANACAP ALUM 15UF 20% 50V RADIAL TH |
51 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 15 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 95 mA @ 120 Hz | 190 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.472" (12.00mm) | - | Through Hole | |
|
ESC687M010AH1AACAP ALUM 680UF 20% 10V RADIAL TH |
32 |
|
Datasheet |
ESC | Bulk | Active | 680 µF | ±20% | 10 V | 85mOhm @ 100kHz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 800 mA @ 100 kHz | 85 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
UWD1A220MCL1GSCAP ALUM 22UF 20% 10V SMD |
1 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 40 mA @ 120 Hz | 80 mA @ 100 kHz | 1.8 Ohms | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|

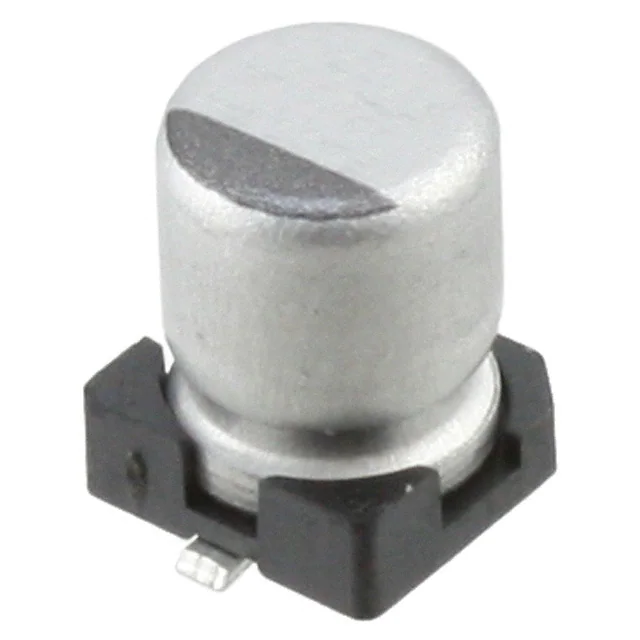

UUQ1A100MCL1GBCAP ALUM 10UF 20% 10V SMD |
67 |
|
Datasheet |
UUQ | Tape & Reel (TR) | Active | 10 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Audio | 22 mA @ 120 Hz | 33 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UUD1C220MCL1GSCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
UUD | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 75 mA @ 120 Hz | 150 mA @ 100 kHz | 760 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
ELXY250ELL151MH12DCAP ALUM 150UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
LXY | Bulk | Obsolete | 150 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 178 mA @ 120 Hz | 445 mA @ 100 kHz | 170 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
EEU-FC1V121BCAP ALUM 120UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
FC | Cut Tape (CT) | Active | 120 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UPJ1V121MPD6CAP ALUM 120UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
UPJ | Bulk | Not For New Designs | 120 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 375 mA @ 120 Hz | 555 mA @ 10 kHz | 240 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EKZE160ELL331MHB5DCAP ALUM 330UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
KZE | Bulk | Active | 330 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 760 mA @ 100 kHz | 72 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EEE-FPA330UARCAP ALUM 33UF 20% 10V SMD |
0 |
|
Datasheet |
FP | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | 850mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 160 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
50SEV33M8X10.5CAP ALUM 33UF 20% 50V SMD |
0 |
|
Datasheet |
SEV | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 200 mA @ 120 Hz | 300 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EKZE100ETD471MHB5DCAP ALUM 470UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
KZE | Tape & Reel (TR) | Active | 470 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 760 mA @ 100 kHz | 72 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UWD0J331MCL1GSCAP ALUM 330UF 20% 6.3V SMD |
5 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 140 mA @ 120 Hz | 280 mA @ 100 kHz | 340 mOhms | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UWD1E680MCL1GSCAP ALUM 68UF 20% 25V SMD |
0 |
|
Datasheet |
UWD | Tape & Reel (TR) | Active | 68 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 440 mOhms | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPW2A220MPD1TDCAP ALUM 22UF 20% 100V RADIAL TH |
0 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 22 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 69 mA @ 120 Hz | 230 mA @ 100 kHz | 680 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UWG1V100MCL1GBCAP ALUM 10UF 20% 35V SMD |
13 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 47.5 mA @ 120 Hz | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
EMZA160ARA220ME61GCAP ALUM 22UF 20% 16V SMD |
0 |
|
Datasheet |
Alchip™- MZA | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 64 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
