Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

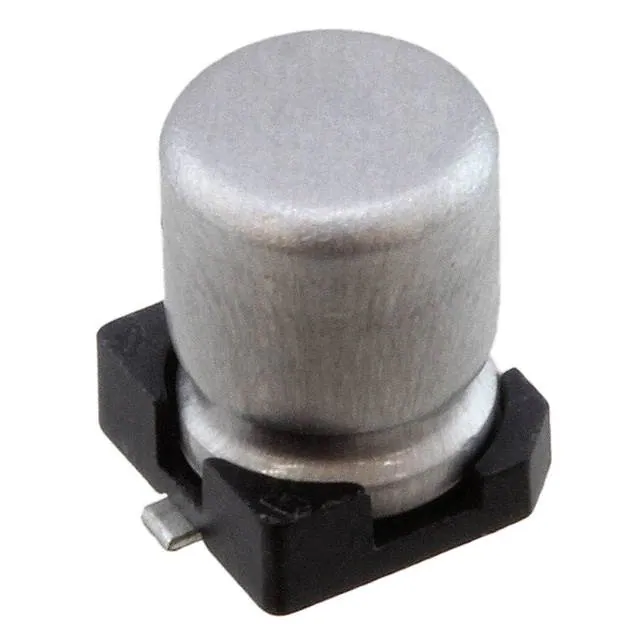

UWP1H0R1MCL1GBCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
UWP | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | AEC-Q200 | General Purpose | 1 mA @ 120 Hz | 1.5 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UUD1E331MNL1GSCAP ALUM 330UF 20% 25V SMD |
10 |
|
Datasheet |
UUD | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 170 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UKL1V101KPDANACAP ALUM 100UF 10% 35V RADIAL TH |
0 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 100 µF | ±10% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 450 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
400AX6.8MEFC8X10.8CAP ALUM 6.8UF 20% 400V RADIAL |
0 |
|
Datasheet |
AX | Bulk | Active | 6.8 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.484" (12.30mm) | - | Through Hole | |
|
ELXY350ELL331MJ20SCAP ALUM 330UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
LXY | Bulk | Active | 330 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | 1.04 A @ 100 kHz | 62 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UVZ2G4R7MPD1TDCAP ALUM 4.7UF 20% 400V RADIAL |
0 |
|
Datasheet |
UVZ | Cut Tape (CT) | Active | 4.7 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EMZL350ARA331MHA0GCAP ALUM 330UF 20% 35V SMD |
0 |
|
Datasheet |
Alchip™- MZL | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | 80mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 425 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UUX2E4R7MNL1GSCAP ALUM 4.7UF 20% 250V SMD |
22 |
|
Datasheet |
UUX | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 37 mA @ 120 Hz | 61.79 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
REH1020471M050KCAP ALUM 470UF 20% 50V RADIAL TH |
1 |
|
Datasheet |
REH | Cut Tape (CT) | Active | 470 µF | ±20% | 50 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UVR1J331MPDCAP ALUM 330UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UVR | Bulk | Active | 330 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 816.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UWG1V470MCL1GSCAP ALUM 47UF 20% 35V SMD |
0 |
|
Datasheet |
UWG | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 115 mA @ 120 Hz | 230 mA @ 100 kHz | 400 mOhms | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
EEU-FR1J121LCAP ALUM 120UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
FR-A | Bulk | Active | 120 µF | ±20% | 63 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 651 mA @ 120 Hz | 930 mA @ 100 kHz | 50 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
100PX100MEFC10X16CAP ALUM 100UF 20% 100V RADIAL |
17 |
|
Datasheet |
PX | Bulk | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 348 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
EKYB800ELL181MJ20SCAP ALUM 180UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
KYB | Bulk | Active | 180 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 416 mA @ 120 Hz | 1.04 A @ 100 kHz | 75 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPW1C102MPD1TDCAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 1000 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 915 mA @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EKZN800ELL221MJ25SCAP ALUM 220UF 20% 80V RADIAL TH |
0 |
|
Datasheet |
KZN | Bulk | Active | 220 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.78 A @ 100 kHz | 55 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
10ZLJ1000M8X20CAP ALUM 1000UF 20% 10V RADIAL |
0 |
|
Datasheet |
ZLJ | Bulk | Active | 1000 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.176 A @ 120 Hz | 1.96 A @ 100 kHz | 41 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UVK1J331MPD1TDCAP ALUM 330UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
UVK | Cut Tape (CT) | Active | 330 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.065 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|

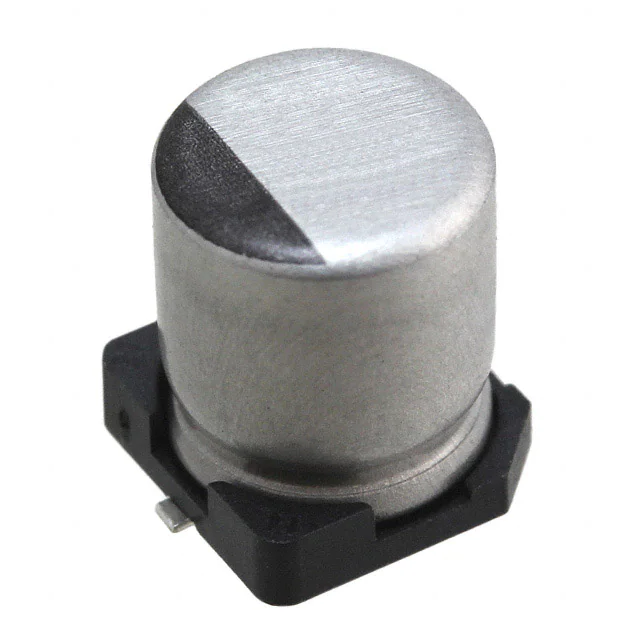

UCZ1H470MCL6GSCAP ALUM 47UF 20% 50V SMD |
0 |
|
Datasheet |
UCZ | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | 500mOhm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 98.5 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.323" (8.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
860130678008CAP ALUM 220UF 20% 50V RADIAL TH |
22 |
|
Datasheet |
WCAP-ATET | Cut Tape (CT) | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 587 mA @ 120 Hz | 810.06 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.846" (21.50mm) | - | Through Hole |
