Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
50TRV1500M18X21.5CAP ALUM 1500UF 20% 50V SMD |
0 |
|
Datasheet |
TRV | Tape & Reel (TR) | Active | 1500 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | 72 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
MAL202190589E3CAP ALUM 2200UF 20% 6.3V AXIAL |
0 |
|
Datasheet |
021 ASM | Cut Tape (CT) | Active | 2200 µF | ±20% | 6.3 V | 210mOhm | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 852 mA @ 10 kHz | 160 mOhms | - | 0.394" Dia x 0.984" L (10.00mm x 25.00mm) | - | - | Through Hole | |
|
381LX332M035H012CAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 3300 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

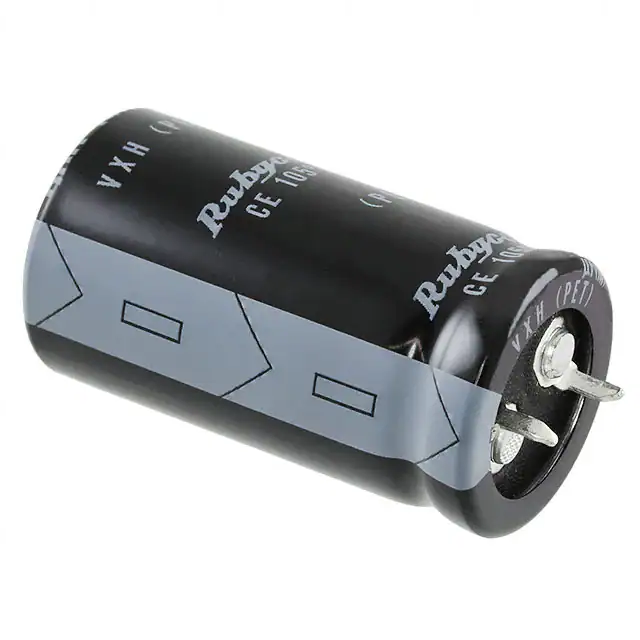

200VXH680MEFCSN22X40CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 680 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 3.33 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL202114472E3CAP ALUM 4700UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 4700 µF | ±20% | 10 V | 100mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.584 A @ 10 kHz | 70 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
UCY2W101MHDCAP ALUM 100UF 20% 450V RADIAL |
0 |
|
Datasheet |
UCY | Bulk | Active | 100 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 835 mA @ 120 Hz | 1.67 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LLS1H822MELACAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 8200 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.44 A @ 120 Hz | 5.106 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
80USC4700MEFCSN25X45CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.28 A @ 120 Hz | 4.922 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
UCY2C681MHDCAP ALUM 680UF 20% 160V RADIAL |
0 |
|
Datasheet |
UCY | Bulk | Active | 680 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 2.3 A @ 120 Hz | 4.6 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
LGU1H682MELACAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 6800 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.37 A @ 120 Hz | 3.8755 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ESMQ201VSN152MR35SCAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SMQ | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.805 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGW2D821MELC25CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LGW | Bulk | Active | 820 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.48 A @ 120 Hz | 5.22 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
B43504A5107M000CAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 100 µF | ±20% | 450 V | 1.35Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 100 Hz | - | 1.6 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ESMQ451VSN331MQ50SCAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SMQ | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.874 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.969" (50.00mm) | - | Through Hole | |
|
450HXG220MEFCSN25X40CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.758 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMQ201VSN182MR45SCAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
KMQ | Bulk | Active | 1800 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.08 A @ 120 Hz | 4.62 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B41505A6478M000CAP ALUM 4700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 4700 µF | ±20% | 50 V | 42mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMQ401VSN681MA45SCAP ALUM 680UF 20% 400V SNAP TH |
4 |
|
Datasheet |
KMQ | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 3.0316 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450HXW220MEFR18X45CAP ALUM 220UF 20% 450V RADIAL |
0 |
|
Datasheet |
HXW | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.86 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
EKMQ401VSN471MA35SCAP ALUM 470UF 20% 400V SNAP TH |
25 |
|
Datasheet |
KMQ | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.4024 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
