Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KBS-20DB-2P-10BUZZER PIEZO 10V26.7X23MM TH |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 2.048kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 1.051" L x 0.906" W (26.70mm x 23.00mm) |
|
KBS-20DB-2P-9BUZZER PIEZO 10V26.7X23MM TH |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 2.048kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 1.051" L x 0.906" W (26.70mm x 23.00mm) |
|
KBS-20DB-4A-22BUZZER PIEZO 10V 23.00MM FLANGE |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 4kHz | Piezo | Single Tone | - | 70dB @ 10V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) |
|
|
KBS-20DB-4P-0BUZZER PIEZO 10V 22.00MM TH |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 4.096kHz | Piezo | Single Tone | - | 77dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) |
|
KBS-20DB-5ABUZZER PIEZO 10V 23.00MM FLANGE |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 5kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) |
|
KBS-27DB-3ABUZZER PIEZO 10V 30.00MM FLANGE |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 3kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
KBS-27DB-3TBUZZER PIEZO 10V 29.00MM TH |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | - | 3kHz | Piezo | Single Tone | - | 75dB @ 10V, 30cm | - | Top | - | - | - | - | Through Hole | PC Pins | 1.142" Dia (29.00mm) |
|
|
KBS-30DB-1A-20BUZZER PIEZO 20V 39.00MM FLANGE |
0 |
|
Datasheet |
KBS, Kyocera | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 20 V | - | 1.25kHz | Piezo | Single Tone | - | 70dB @ 20V, 30cm | - | Top | - | - | - | - | Panel Mount, Flange | Wire Leads | 1.535" Dia (39.00mm) |
|
AI-4228-P-C250-RBUZZER PIEZO 220V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | AC, DC | 220 V | 60 ~ 250V | 2.8kHz | Piezo | Single Tone | - | 94dB @ 18V, 10cm | 18mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|

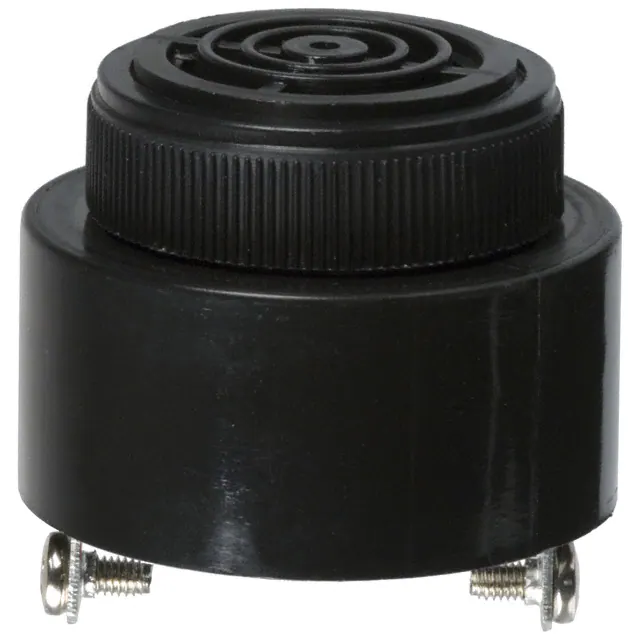

AI-4228-P-C28D-RBUZZER PIEZO 12V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | 10mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
|
AI-4228-P-FP120-RBUZZER PIEZO 110V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Pulse, Fast | 3 PPS | 92dB @ 110V, 10cm | 20mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
|
AI-4228-P-SP28D-RBUZZER PIEZO 12V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Slow | 1.2 PPS | 90dB @ 12V, 10cm | 10mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
|
AI-4228-P-SP28-RBUZZER PIEZO 12V 42.5MM PNL MNT |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Slow | 1.2 PPS | 88dB @ 12V, 10cm | 6mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|
AI-1450-TW-LW80-WP-RBUZZER PIEZO 12V 14MM CUSTOM |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 9 ~ 16V | 5kHz | Piezo | Single Tone | - | 90dB @ 12V, 10cm | 35mA | Top | -30°C ~ 85°C | - | - | - | Custom | Wire Leads | 0.551" Dia (14.00mm) |
|

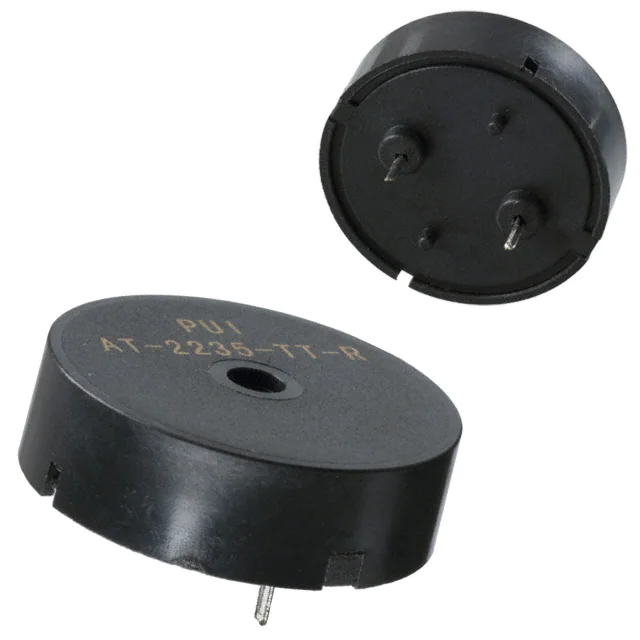

AT-2235-TT-RBUZZER PIEZO 3V 20.4MM TH |
0 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 30V | 3.5kHz | Piezo | Single Tone | - | 75dB @ 3V, 10cm | 3mA | Top | -40°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.803" Dia (20.40mm) |
|

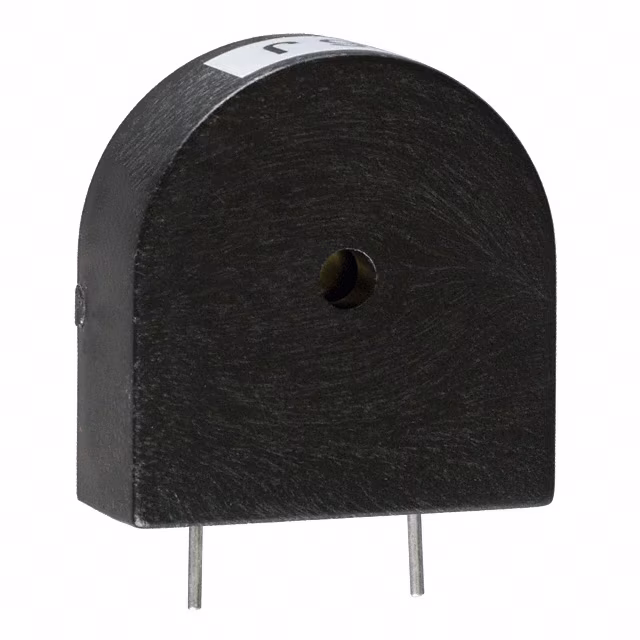

AT-2532-ST-RBUZZER PIEZO 10V 24X10MM TH |
0 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 10 V | 5 ~ 24V | 3.2kHz | Piezo | Single Tone | - | 90dB @ 10V, 10cm | 10mA | Side | -30°C ~ 115°C | - | - | - | Through Hole | PC Pins | 0.945" L x 0.394" W (24.00mm x 10.00mm) |
|
CS-3224BUZZER MAGN 24V 22.5X16.7MM TH |
0 |
|
Datasheet |
CS | Bulk | Obsolete | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | - | Magnetic | Single Tone | - | 76dB @ 24V, 30cm | 20mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.886" L x 0.657" W (22.50mm x 16.70mm) |
|
|
AI-1027-TWT-12V-RBUZZER MAGNETIC 12V 9.5MM TH |
0 |
|
- |
AI | Tray | Obsolete | Indicator, Internally Driven | DC | 12 V | 7 ~ 15V | 2.7kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 60mA | Top | -20°C ~ 80°C | - | - | - | Through Hole | PC Pins | 0.374" Dia (9.50mm) |
|
|
AI-2304-TF-LW120-RBUZZER MAGN 24V 32X17 FLANG |
0 |
|
Datasheet |
AI | Tray | Obsolete | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | 400Hz | Electromechanical/Magnetic | Single Tone | - | 86dB @ 24V, 10cm | 24mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.260" L x 0.669" W (32.00mm x 17.00mm) |
|

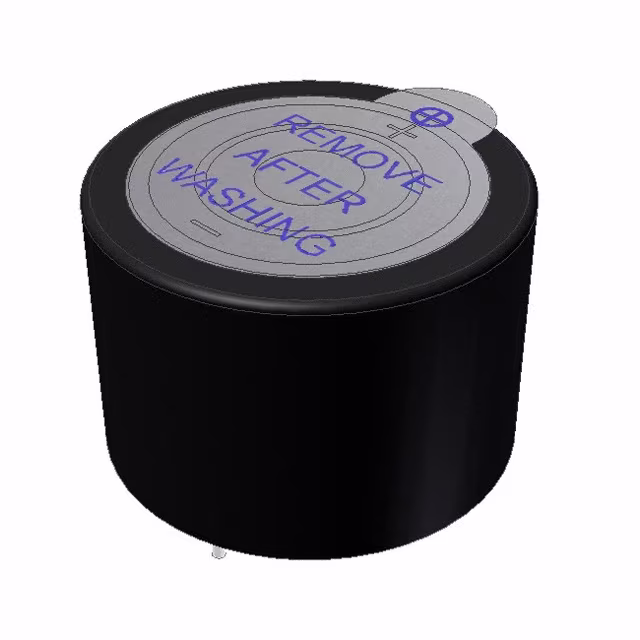

AI-2429-TWT-12V-4-RBUZZER PIEZO 12V 23.8MM TH |
0 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 2.9kHz | Piezo | Single Tone | - | 95dB @ 12V, 10cm | 8mA | Top | -20°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.937" Dia (23.80mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
