Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC648MAHBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 19mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC616WXYBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.325kHz | Piezo | Pin Selectable | 0.5 ~ 2.5 PPS | 62dB @ 6V, 61cm | 6 ~ 27mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

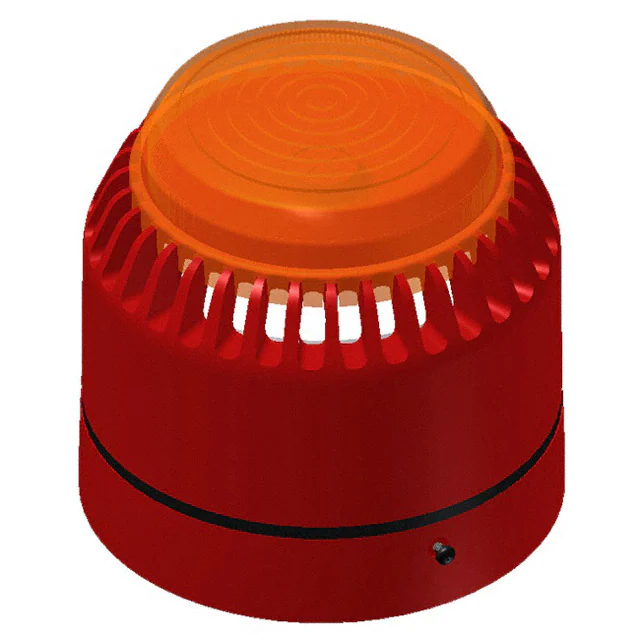

AVW-15SBR-AL-24BUZZER PIEZO 24V 92MM BASE |
0 |
|
Datasheet |
AVW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 88dB @ 24V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) |
|

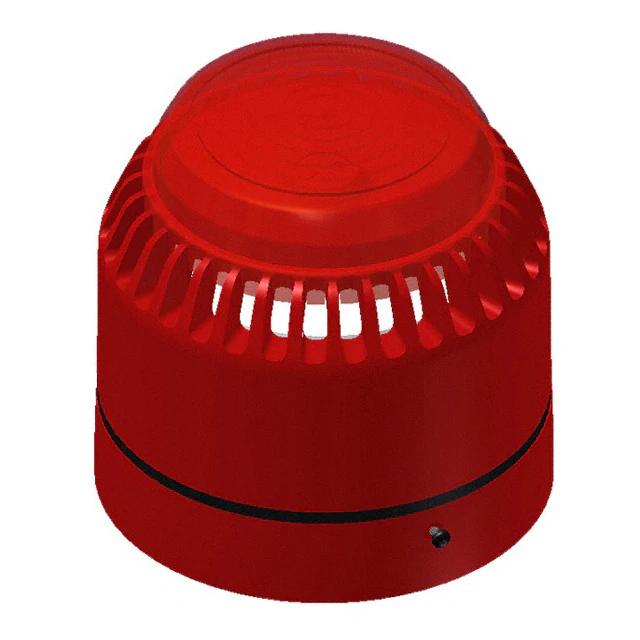

AVW-15SBR-RL-24BUZZER PIEZO 24V 92MM BASE |
0 |
|
Datasheet |
AVW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 88dB @ 24V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) |
|
|
ZT028LDCM1RBUZZER 30.74MM PNL MNT |
0 |
|
Datasheet |
ZT | Bulk | Active | - | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT016LDSR8RBUZZER PIEZO IND PNL MNT |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | 9 ~ 16V | - | - | - | - | - | - | - | - | cUL | - | - | - | Terminal Block | - |
|
|
ZT016LDSR9RBUZZER PIEZO IND PNL MNT |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZT028LDSR9RBUZZER 22MM 20-28V LED RED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZT120LAFP1B22MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Datasheet |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
AVW-15SBR-RL-12BUZZER PIEZO 12V 92MM BASE |
0 |
|
Datasheet |
AVW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 18V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 83dB @ 12V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) |
|
|
ZT120LAFP1Y22MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Datasheet |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT120LAFP1G22MM ALARM +LED 90-120 VAC LOUD; |
0 |
|
Datasheet |
- | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZT028LAIC1GBUZZER PIEZO 24V 30.74MM PNL MNT |
0 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC628MPGBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
ZT028LAMP1RBUZZER 30.74MM PNL MNT |
0 |
|
Datasheet |
ZT | Bulk | Active | - | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Pulse, Medium | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT028LDCM1R1522MM ALARM +LED;20-28 VDC; 85-9 |
0 |
|
Datasheet |
- | Retail Package | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | Repeating every 3 Sec | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC628MAHBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
ZT028LDCM1R3022MM ALARM +LED;20-28 VDC; 85-9 |
0 |
|
Datasheet |
- | Retail Package | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZT028LAIC2RBUZZER PIEZO 24V 30.74MM PNL MNT |
0 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Pulse, Fast, Visual Indicator | 10 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT120LADP3RBUZZER 30.74MM PNL MNT |
0 |
|
Datasheet |
ZT | Bulk | Active | - | AC | - | 90 ~ 120V | 3.9kHz | - | Double Pulse, Slow | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
