Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPIM-4410-80TBUZZER PIEZO 5V 44MM TH |
460 |
|
Datasheet |
CPIM | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3.3 ~ 5V | 150Hz ~ 4kHz | Piezo | Multiple Tone | - | 80dB @ 5V, 10cm | 20mA | Top | -30°C ~ 85°C | - | Medical | - | Through Hole | PC Pins | 1.732" Dia (44.00mm) |
|
|
MSO206NLRBUZZER PIEZO 23X23MM CUSTOM |
1,512 |
|
Datasheet |
MSO | Bulk | Active | Indicator, Internally Driven | DC | - | 2 ~ 6V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 2V, 30cm | 30mA | Top | -20°C ~ 65°C | - | - | - | Custom | Wire Leads | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
X-5735-LW350-S-2-RBUZZER PIEZO 12V 56.5X44 BRACKET |
225 |
|
Datasheet |
X | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 3kHz | Piezo | Siren | - | 125dB @ 12V, 10cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.224" L x 1.732" W (56.50mm x 44.00mm) |
|
XL-5020-TF-LW150-S-RBUZZER PIEZO 12V 50MM FLANGE |
335 |
|
Datasheet |
XL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 16V | 2.3kHz | Piezo | Siren | 1.2 PPS | 110dB @ 12V, 10cm | 120mA | Top | -30°C ~ 80°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.969" Dia (50.00mm) |
|

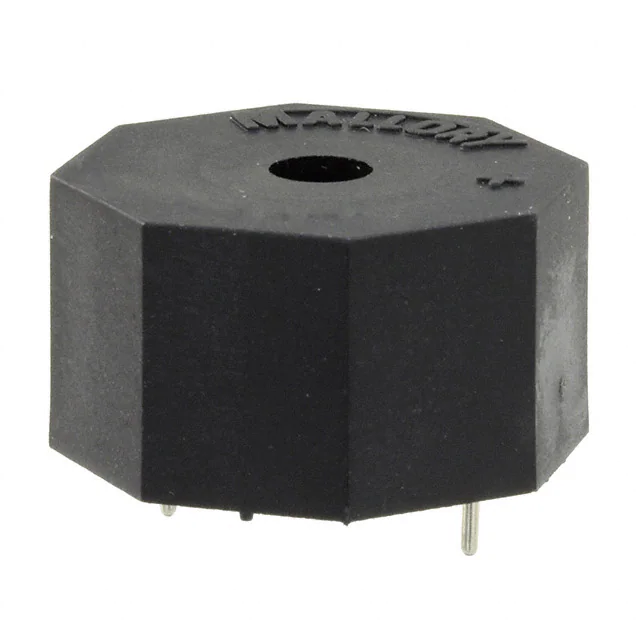

MSE14LCM3BUZZER PIEZO 23X23MM TH |
121 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Chime | Repeating every 1 Sec | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SNP428RBUZZER PIEZO 41.66MM PNL MNT |
237 |
|
Datasheet |
SNP | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 69dB @ 4V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.125" (3.20mm) | 1.640" Dia (41.66mm) |
|
|
MSS5M1BUZZER PIEZO 5V 23X23MM TH |
102 |
|
Datasheet |
MSS | Bulk | Not For New Designs | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SC628DBUZZER PIEZO 42.98MM PNL MNT |
172 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Single Tone | - | 60dB @ 6V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC616NLRBUZZER PIEZO 42.85MM PNL MNT |
207 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Wire Leads | 1.687" Dia (42.85mm) |
|
|
SBS12M0PCBUZZER MAGNETIC 44.45MM TH |
314 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Single Tone | - | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
MSS5GBUZZER MAGN 5V 23X23MM TH |
428 |
|
Datasheet |
MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 20 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SC628PRBUZZER PIEZO 42.98MM PNL MNT |
304 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 6 ~ 26mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
AW-10FW-NSVCBUZZER PIEZO 12V 53MM FLANGE |
938 |
|
Datasheet |
AW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 28V | 2.9kHz | Piezo | Dual Tone | - | 118dB @ 12V, 10cm | 15mA | Top | -25°C ~ 70°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Flange | Wire Leads | 2.087" Dia (53.00mm) |
|
|
SC628ANRBUZZER PIEZO 42.98MM PNL MNT |
105 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 7.5V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628ADRBUZZER PIEZO 42.85MM PNL MNT |
508 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 60dB @ 7.5V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC628MBUZZER PIEZO 42.98MM PNL MNT |
101 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
GT-11PSBUZZER MAGNETIC 1.5V 12MM TH |
5,506 |
|
Datasheet |
GT | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.048kHz | Magnetic | Single Tone | - | 75dB @ 1.5V, 10cm | 30mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
PKMCS0909E48H0-R1BUZZER PIEZO 2.5V 9X9MM W SMD |
1,250 |
|
Datasheet |
PK | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 2.5 V | 12.5V (Max) | 4.8kHz | Piezo | - | - | 72dB @ 2.5V, 10cm | - | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.354" L x 0.354" W (9.00mm x 9.00mm) |
|
|
TE122001-6BUZZER ELECTRO 1.5V 12MM TH |
7,716 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1 ~ 3V | 2.048kHz | Electromechanical | - | - | 85dB @ 1.5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
AT-1220-TT-10-RBUZZER MAGNETIC 1.5V 12MM TH |
3,640 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 2V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 20mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
