Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBT5DLMMPPCBUZZER PIEZO 44.45MM TH |
0 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5PLHSPPCBUZZER PIEZO 44.45MM TH |
0 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5VLMCTPCBUZZER PIEZO 44.45MM TH |
0 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SCE016LD2MP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE016MD2MP1BBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Pulse, Medium | 5 PPS | 75dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SC616CPNBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | 0.3 ~ 2 PPS | 76dB @ 6V, 61cm | 6 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

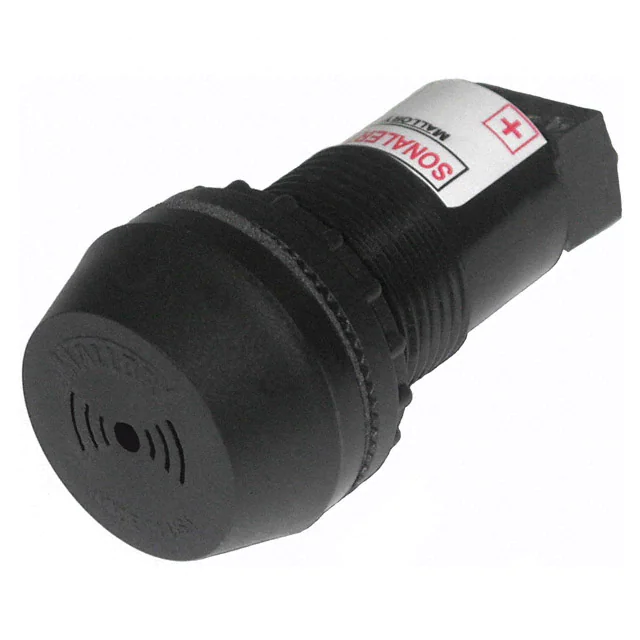

ZA048LADP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZA120LADP2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120LADP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048LADP2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048LADL1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Single Tone | 10 Sec On-Delay | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048LAPS1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Pulse, Short | 1 PPS | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048LASS1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Single Tone | 1 Min On-Time | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA048LASU2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Speed Up, Fast | 0.5 ~ 8 PPS in 30 Sec | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120LADL1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Single Tone | 10 Sec On-Delay | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120LAPS1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Pulse, Short | 1 PPS | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120LASS1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Single Tone | 1 Min On-Time | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC110EPRBUZZER PIEZO 42.85MM PNL MNT |
1 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 55dB @ 30V, 61cm | 7 ~ 13mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
ZA028SACM1BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Chime | Repeating every 3 Sec | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028SADT7BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Warble, Fast | 7 WPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
