Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBS12LMMEPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|

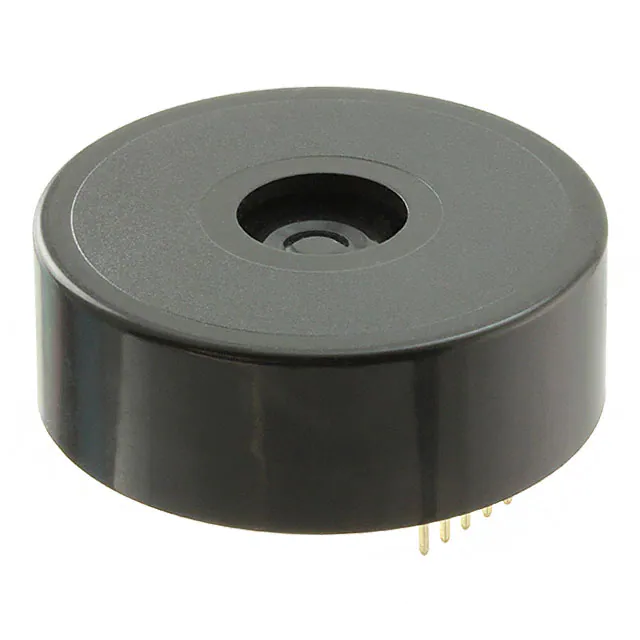

SBS12LMMPPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SBS12LMMTPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SBS12LMMVPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SBS12LMMXPCBUZZER MAGNETIC 44.45MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SC648ANJRBUZZER PIEZO 42.98MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 91dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE016XD2DB2FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE028XD2DB3FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE016XD2DB3FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE028XD2DB1FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE028XD2DB2FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE016XD2DB1SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE016XD2DB1FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SBT12GLPCBUZZER PIEZO 44.45MM TH |
0 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 150Hz ~ 4kHz | Piezo | - | Repeating every 30 Sec | 85dB @ 9V, 10cm | 25mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SCE048XD2DB1FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE048XD2DB3FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE048XD2DB3SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE048XD2DB2FBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE048XD2DB1SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Fast | 10 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCE048XD2DB2SBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
